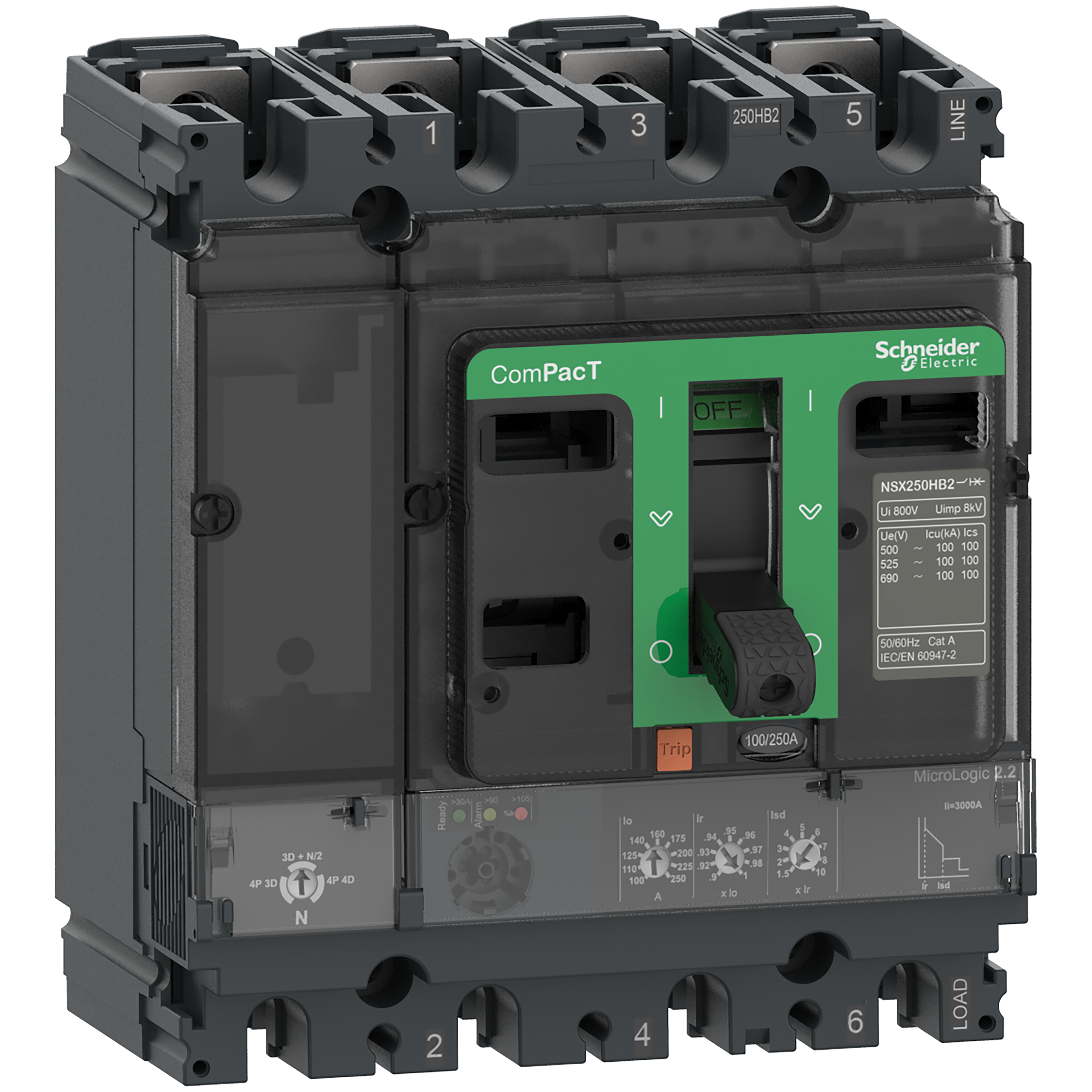

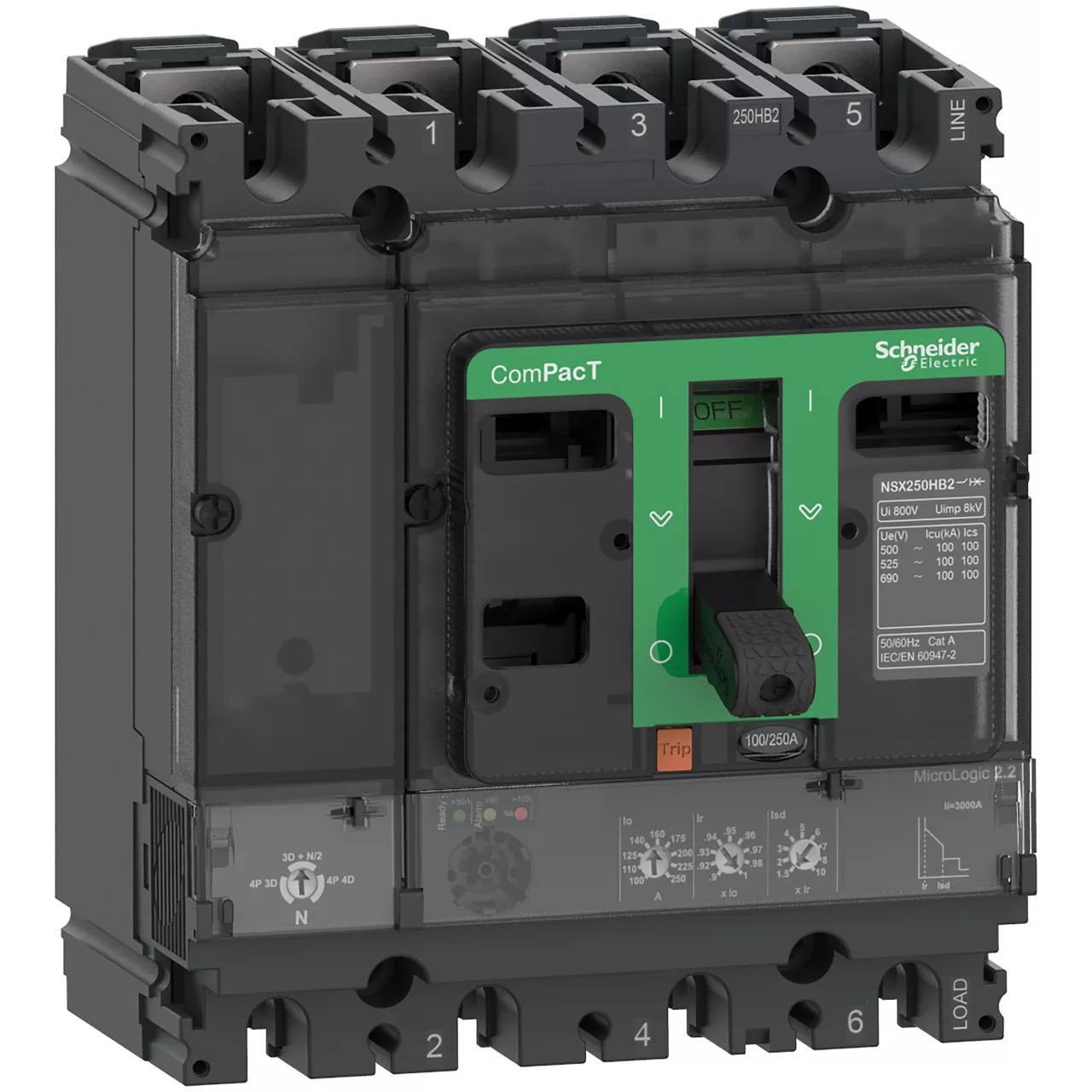

Wyłącznik, ComPacT NSX, 250R, Mic2.2 160A 4P, 200kA
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | C25R42D160 |
GTIN(EAN) | 3606482001206 |
Price unit | piece |
Catalog price | 8 304,21 zł (6 751,39 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 2,63 kg |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Type of electrical connection of main circuit: | Screw connection |
Number of auxiliary contacts as change-over contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Adjustment range undelayed short-circuit release: | 2400 - 2400 A |
Integrated earth fault protection: | no |
Device construction: | Built-in device fixed built-in technique |
Suitable for DIN rail (top hat rail) mounting: | no |
With integrated under voltage release: | no |
Degree of protection (IP): | IP40 |
Number of poles: | 4 |
Rated voltage: | 690 - 690 V |
DIN rail (top hat rail) mounting optional: | yes |
Complete device with protection unit: | yes |
With switched-off indicator: | yes |
Motor drive integrated: | no |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 200 kA |
Overload release current setting: | 225 - 250 A |
Type of control element: | Toggle |
Rated permanent current Iu: | 160 A |
Adjustment range short-term delayed short-circuit release: | 240 - 1600 A |
Motor drive optional: | yes |
Position of connection for main current circuit: | Front side |
