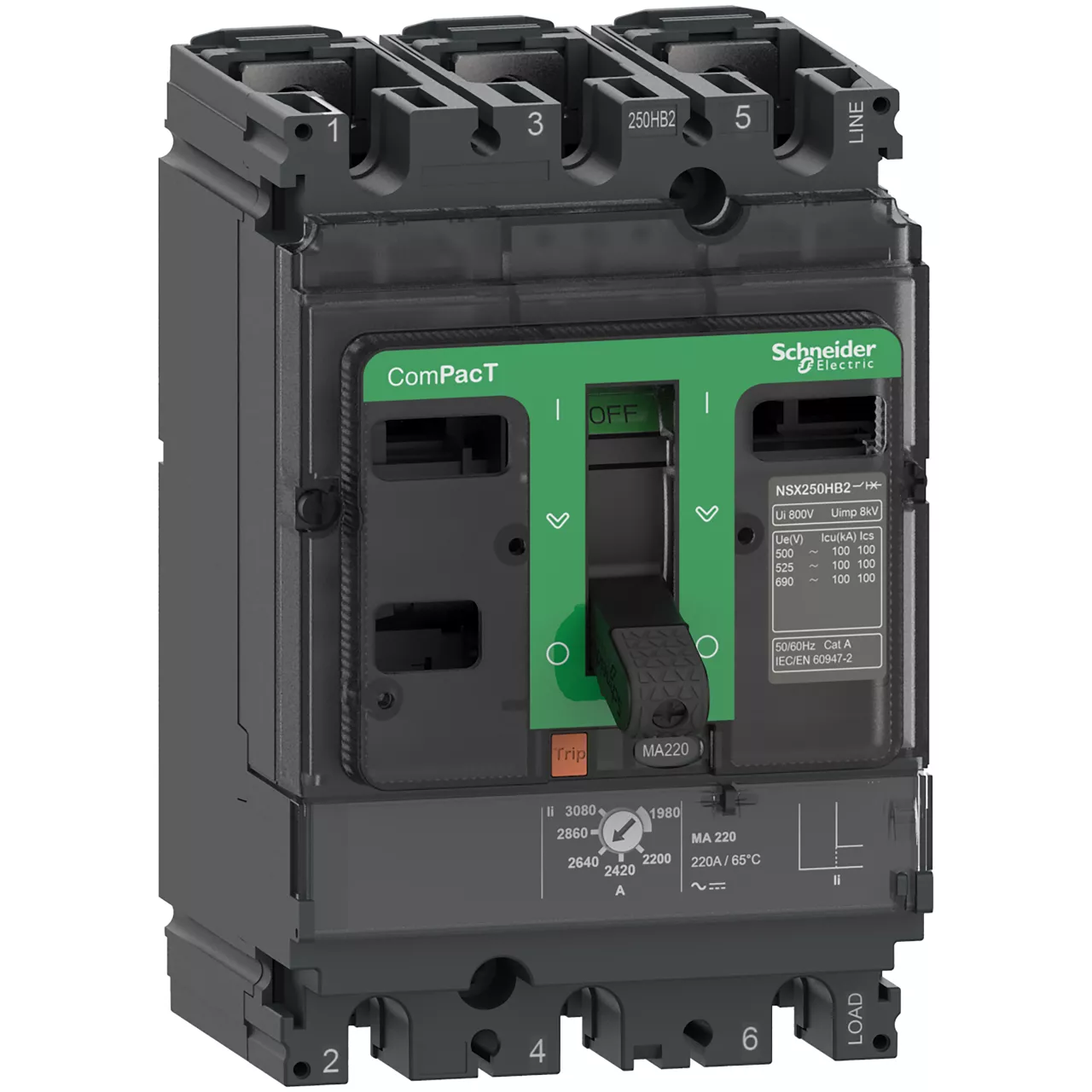

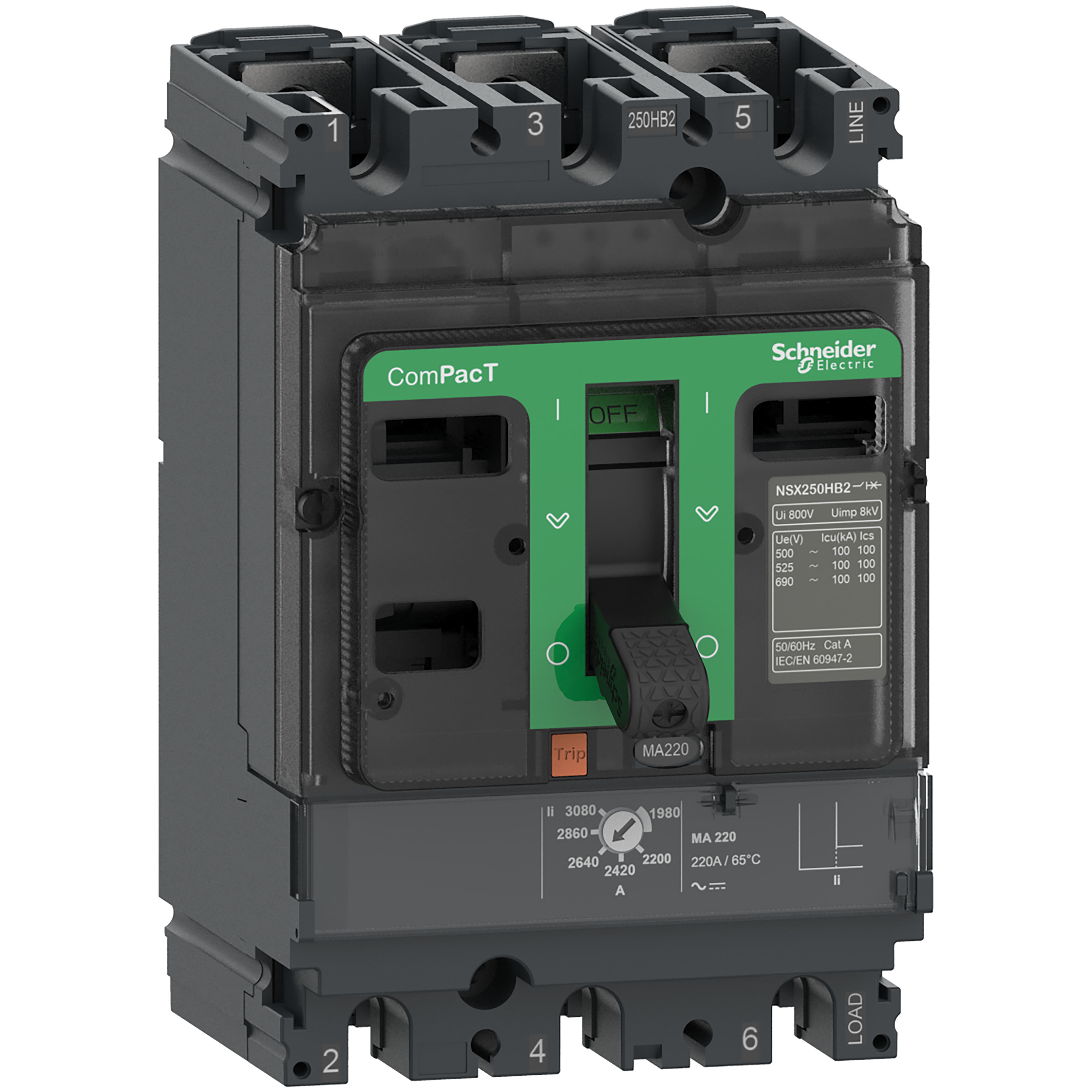

Wyłącznik, ComPacT NSX, 250R, MA220 3P, 200kA
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | C25R3MA220 |
| GTIN(EAN) | 3606482001374 |
| Price unit | piece |
| Catalog price | 6 673,38 zł (5 425,51 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,97 kg |
| ETIM class: | Motor protection circuit-breaker |
| Type of electrical connection of main circuit: | Screw connection |
| Adjustment range undelayed short-circuit release: | 1980 - 3080 A |
| Device construction: | Built-in device fixed built-in technique |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Degree of protection (IP): | IP40 |
| Height: | 161 mm |
| Rated operating voltage: | 690 - 690 V |
| Depth: | 86 mm |
| Width: | 105 mm |
| Switch off technique: | Magnetic |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 200 kA |
| Phase failure sensitive: | no |
| With integrated auxiliary switch: | no |
| Type of control element: | Other |
| Rated permanent current Iu: | 220 A |
| With thermal overload protection: | no |
