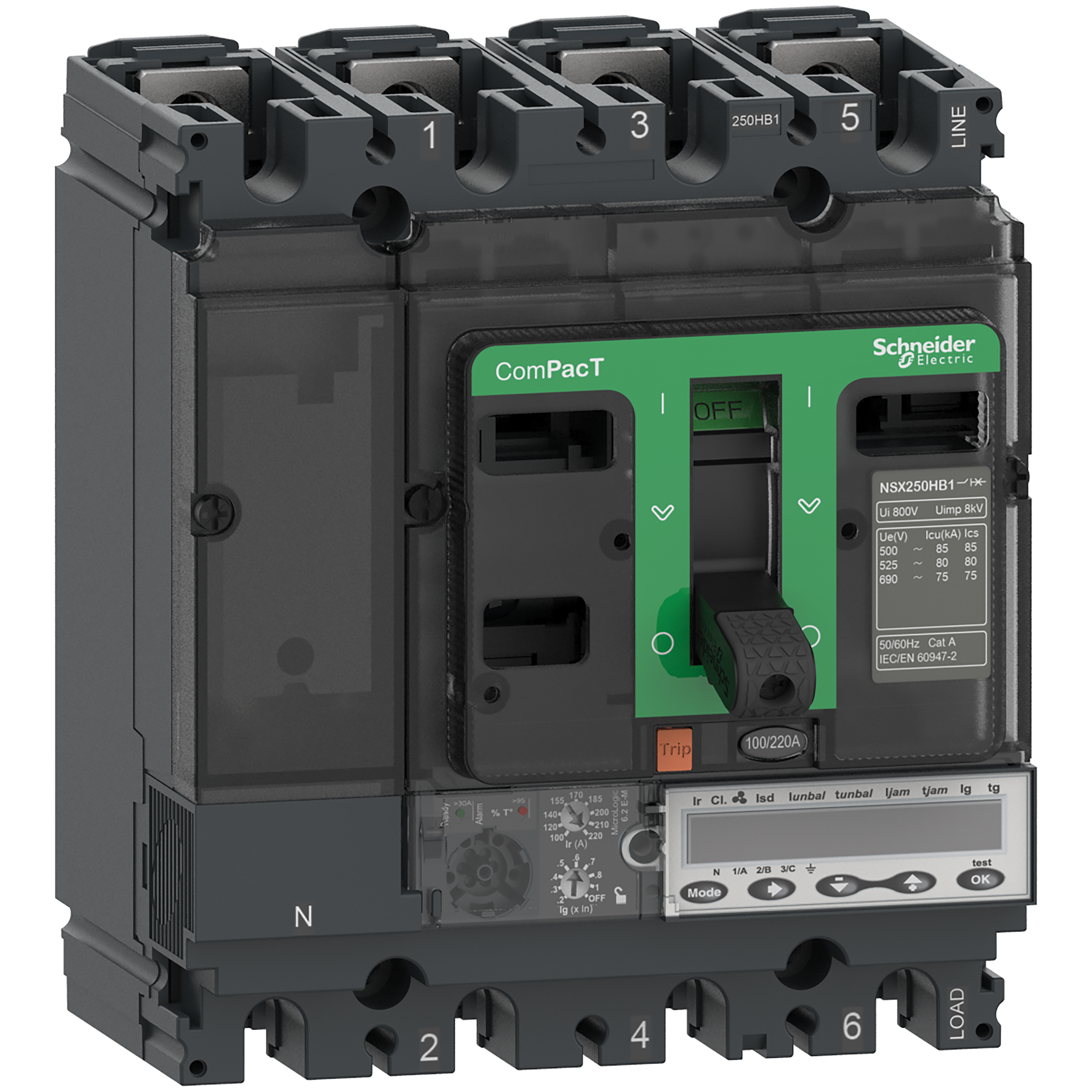

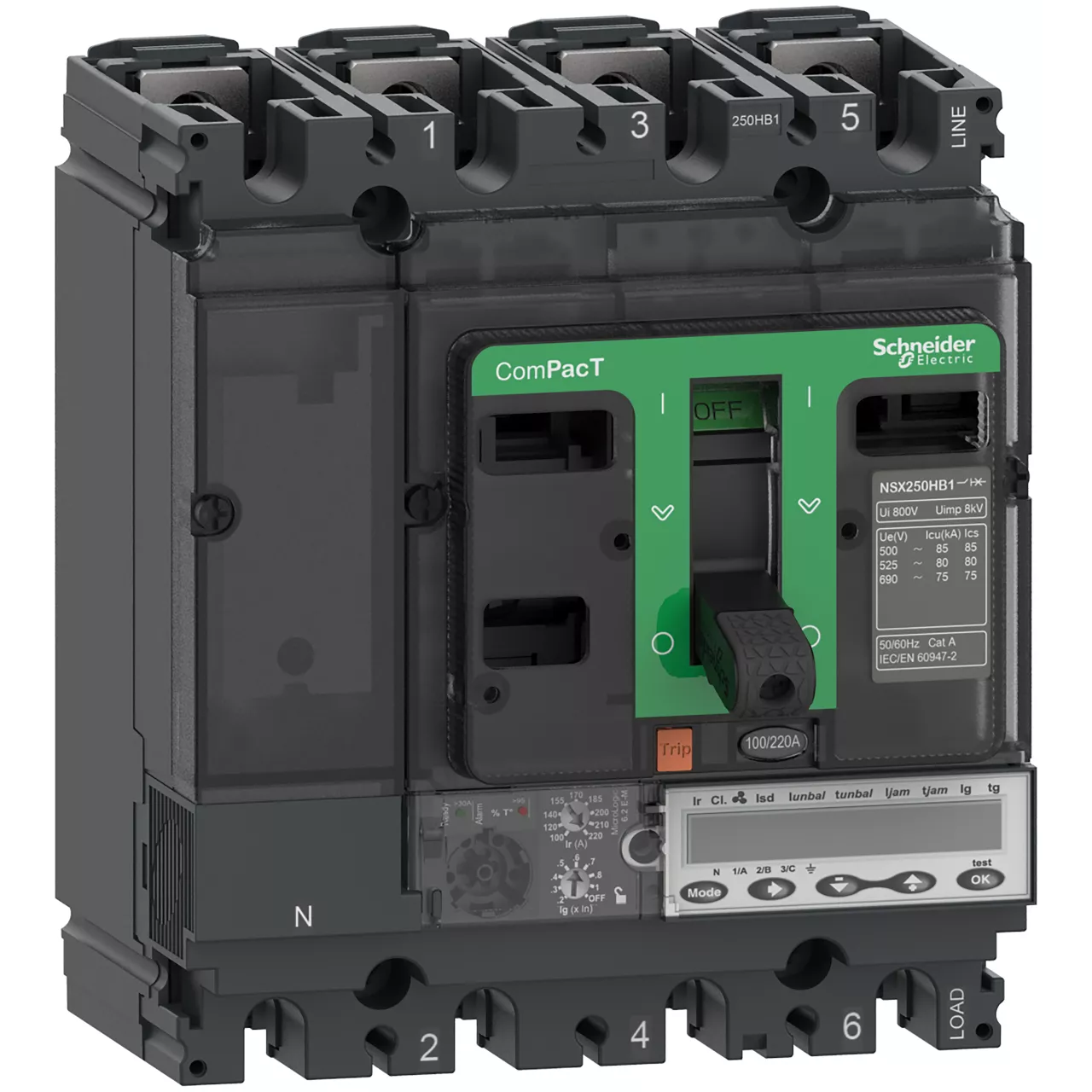

Wyłącznik, ComPacT NSX, NSX250R, Mic6.2 EM, 220A, 3P, 200kA
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | C25R36M220 |
GTIN(EAN) | 3606482001473 |
Price unit | piece |
Catalog price | 9 356,88 zł (7 607,22 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 2,13 kg |
ETIM class: | Motor protection circuit-breaker |
Type of electrical connection of main circuit: | Screw connection |
Adjustment range undelayed short-circuit release: | 3300 - 3300 A |
Device construction: | Built-in device fixed built-in technique |
With integrated under voltage release: | no |
Number of poles: | 3 |
Degree of protection (IP): | IP40 |
Height: | 161 mm |
Rated operating voltage: | 690 - 690 V |
Depth: | 86 mm |
Width: | 105 mm |
Switch off technique: | Electronic |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 200 kA |
Phase failure sensitive: | yes |
With integrated auxiliary switch: | no |
Type of control element: | Other |
Rated permanent current Iu: | 220 A |
Overload release current setting: | 100 - 220 A |
With thermal overload protection: | yes |
