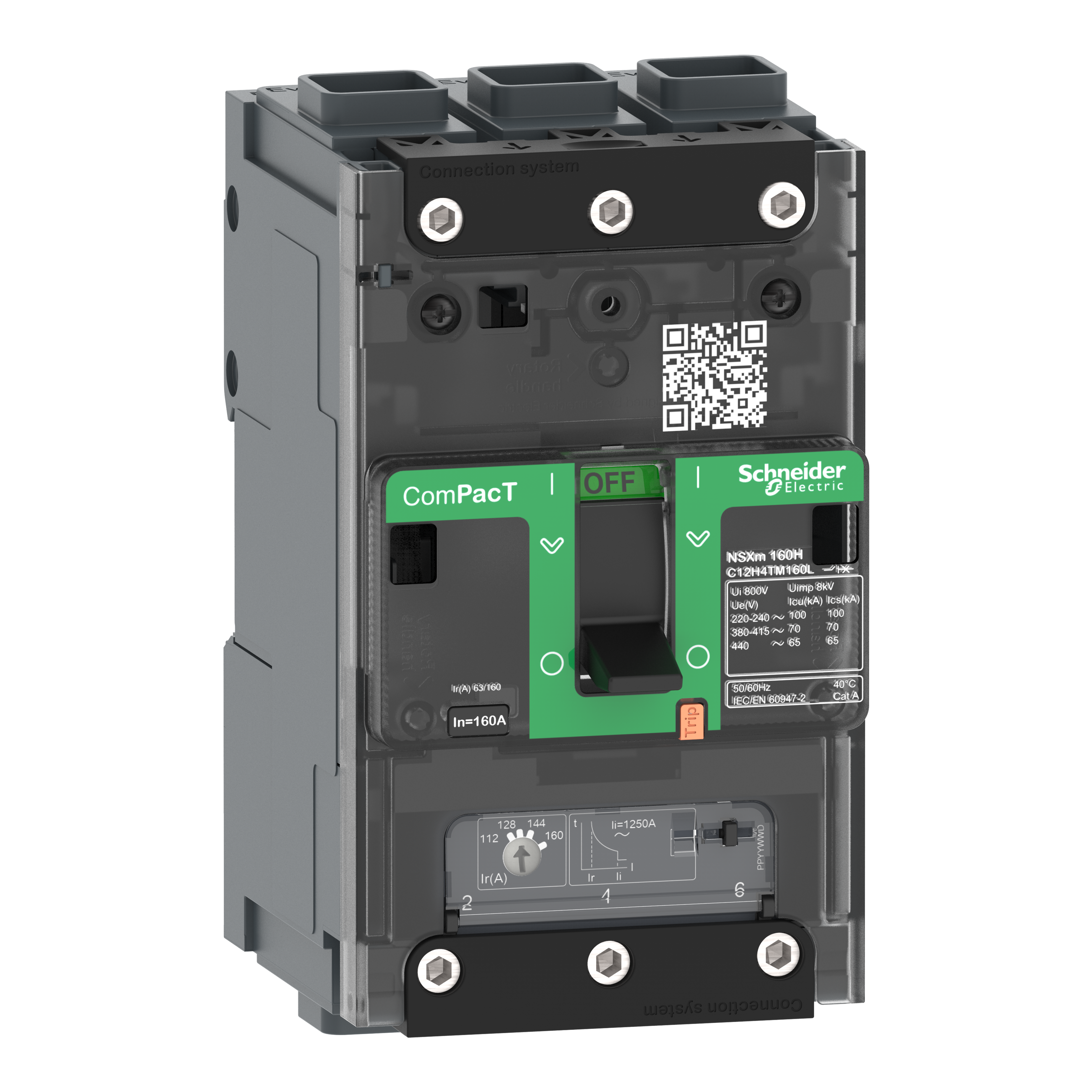

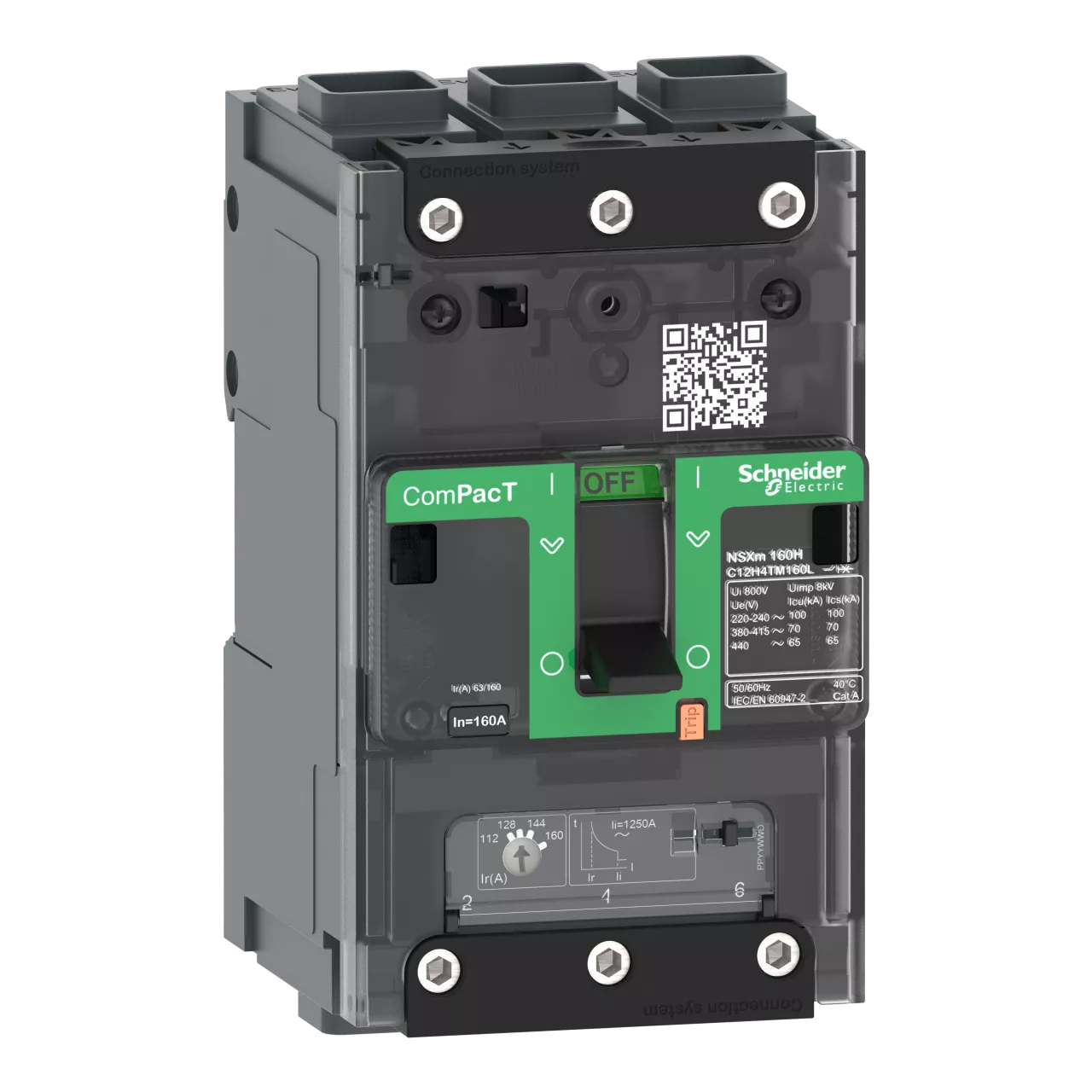

Wyłącznik, ComPacT NSXm, TM160D, 3P, 25kA, EverLink
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | C12B3TM160L |
| GTIN(EAN) | 3606481990051 |
| Price unit | piece |
| Catalog price | 2 838,99 zł (2 308,12 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
C12B3TM160L to 3-biegunowy wyłącznik mocy z serii ComPacT NSXm firmy Schneider Electric o prądzie znamionowym 160A z wbudowanym zabezpieczeniem Termomagnetycznym TM-D. Aparaty z serii ComPacT NSXm zabezpieczają obwody o prądzie znamionowym do 160A przy napięciu pracy 41 5V, rozłączając prądy zwarciowe o wartości 25kA, 36kA oraz 70kA. Maksymalnie napięcie izolacji pozostaje na poziomie 800V. •Prąd znamionowy: 106A •Liczba biegunów: 3P •Zdolność wyłączania 380/415V: 25 kA •Typ wyzwalacza: Termomagnetyczny
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 64 |
| Gross weight: | 1,204 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Type of electrical connection of main circuit: | Screw connection |
| Number of auxiliary contacts as change-over contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Adjustment range undelayed short-circuit release: | 1250 - 1250 A |
| Integrated earth fault protection: | no |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting: | yes |
| Degree of protection (IP): | IP40 |
| Number of poles: | 3 |
| Rated voltage: | 690 - 690 V |
| DIN rail (top hat rail) mounting optional: | no |
| Complete device with protection unit: | yes |
| With switched-off indicator: | yes |
| Motor drive integrated: | no |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 25 kA |
| Overload release current setting: | 112 - 160 A |
| Type of control element: | Toggle |
| Rated permanent current Iu: | 160 A |
| Motor drive optional: | no |
| Position of connection for main current circuit: | Front side |
