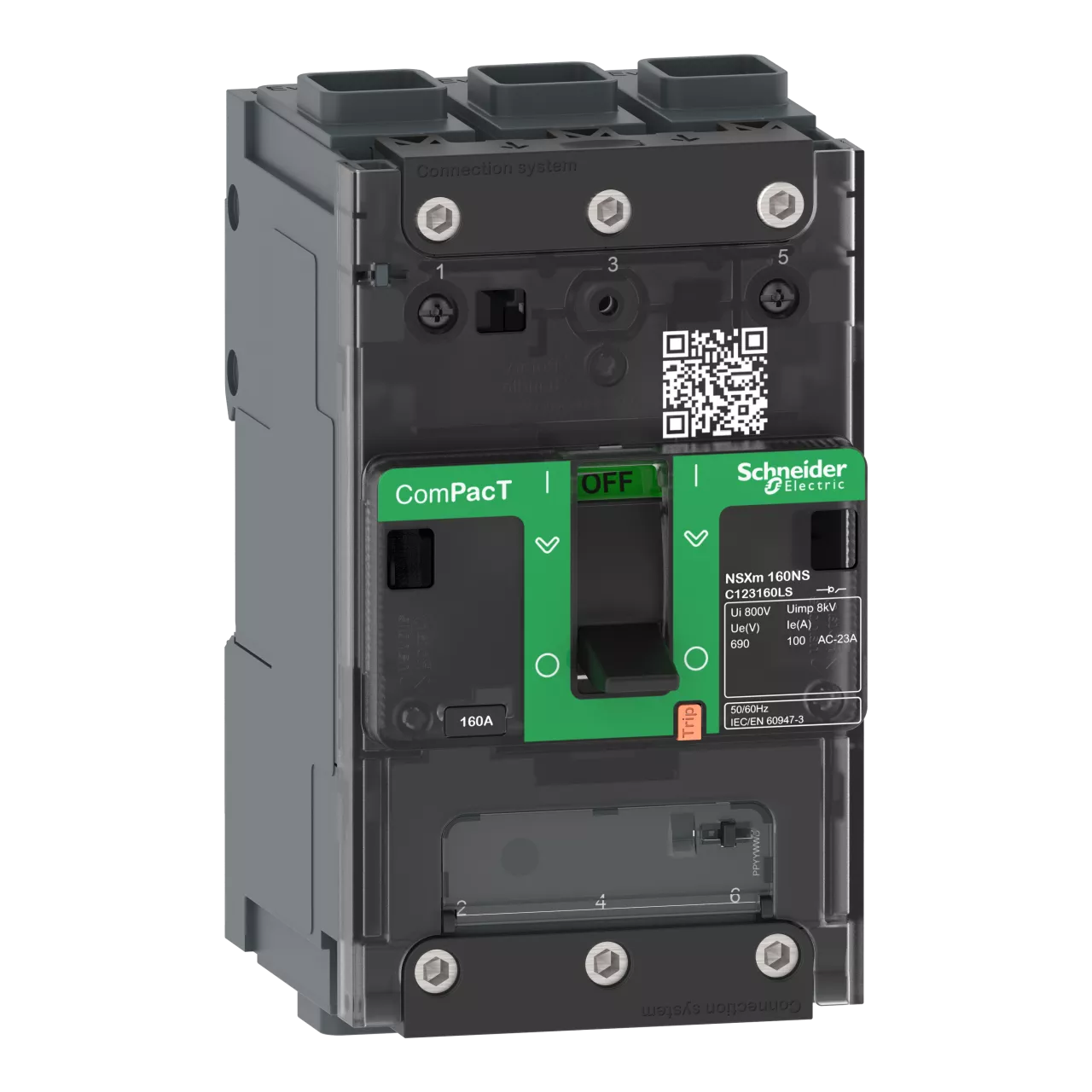

Rozłącznik, ComPacT NSXm, 160NA, 3P, EverLink
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | C123160LS |
GTIN(EAN) | 3606481993182 |
Price unit | piece |
Catalog price | 1 316,74 zł (1 070,52 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
C123160LS to 3-biegunowy rozłącznik mocy z serii ComPacT NSXm firmy Schneider Electric o prądzie znamionowym 160A. Rozłączniki ComPacT NSXm to nowe technologie zapewniające ciekawe rozwiązania, usprawniające pracę instalatora. Rozłączniki ComPacT NSXm to świetny wybór d la instalacji budynkowych i przemysłowych. Sprawdzą się w każdych instalacjach dla prądów do 630A. •Prąd znamionowy: 160A •Liczba biegunów: 3P
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 65 |
Gross weight: | 1,194 kg |
ETIM class: | Switch disconnector (low voltage) |
Rated short-time withstand current lcw: | 1.5 kA |
Version as emergency stop installation: | no |
Number of auxiliary contacts as change-over contact: | 0 |
Interlockable: | no |
Voltage release optional: | yes |
Number of poles: | 3 |
Degree of protection (IP), front side: | IP40 |
Suitable for front mounting centre: | no |
Suitable for front mounting 4-hole: | yes |
Number of switches: | 1 |
Rated permanent current at AC-23, 400 V: | 160 A |
Rated permanent current Iu: | 160 A |
Colour control element: | Black |
Suitable for floor mounting: | yes |
Type of electrical connection of main circuit: | Screw connection |
Version as safety switch: | no |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Version as maintenance-/service switch: | yes |
Device construction: | Built-in device fixed built-in technique |
Max. rated operation voltage Ue AC: | 690 V |
Version as main switch: | yes |
Rated operating voltage: | 690 - 690 V |
Version as reversing switch: | no |
Motor drive integrated: | no |
Type of control element: | Toggle |
Suitable for distribution board installation: | yes |
Motor drive optional: | no |
Suitable for intermediate mounting: | no |
