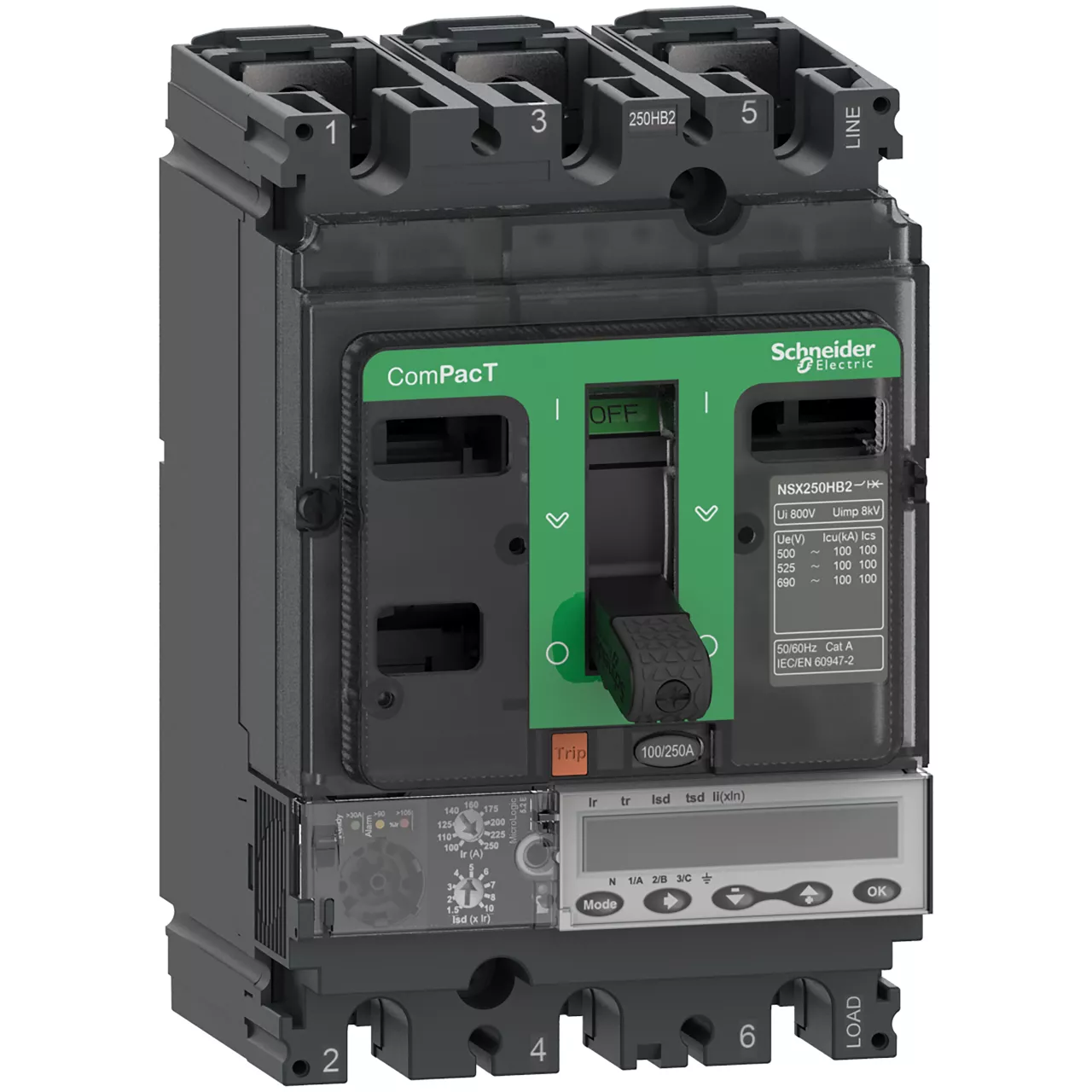

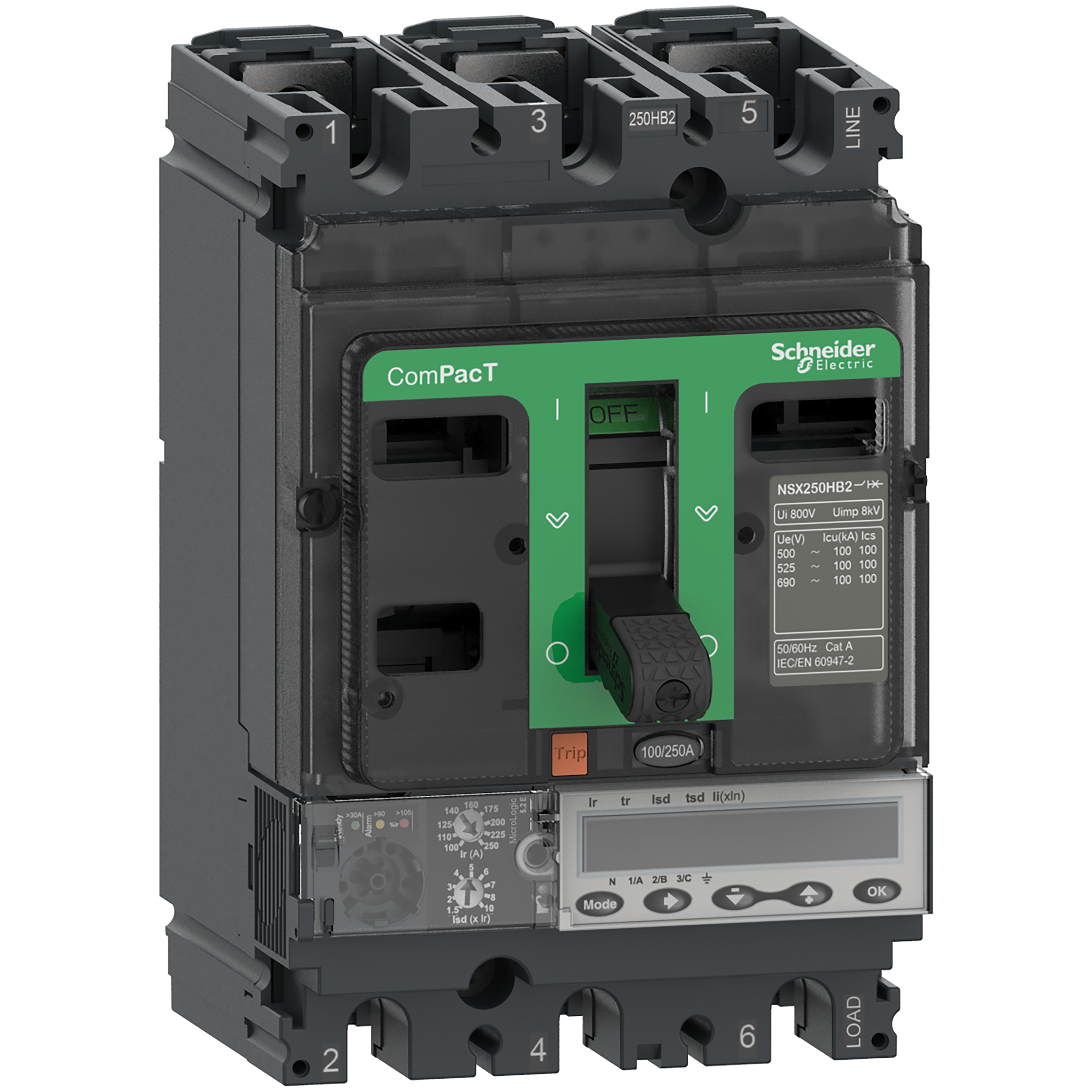

Wyłącznik, ComPacT NSX, 100HB2, 100kA/690VAC, 3 biegunowy, MicroLogic 5.2E 100A
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | C10W35E040 |
| GTIN(EAN) | 3606482002241 |
| Price unit | piece |
| Catalog price | 6 689,17 zł (5 438,35 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,948 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Type of electrical connection of main circuit: | Screw connection |
| Number of auxiliary contacts as change-over contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Adjustment range undelayed short-circuit release: | 60 - 600 A |
| Integrated earth fault protection: | no |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting: | no |
| With integrated under voltage release: | no |
| Degree of protection (IP): | IP40 |
| Number of poles: | 3 |
| Rated voltage: | 690 - 690 V |
| DIN rail (top hat rail) mounting optional: | yes |
| Complete device with protection unit: | yes |
| With switched-off indicator: | yes |
| Motor drive integrated: | no |
| Overload release current setting: | 18 - 40 A |
| Type of control element: | Toggle |
| Rated permanent current Iu: | 40 A |
| Adjustment range short-term delayed short-circuit release: | 60 - 400 A |
| Motor drive optional: | yes |
| Position of connection for main current circuit: | Front side |
