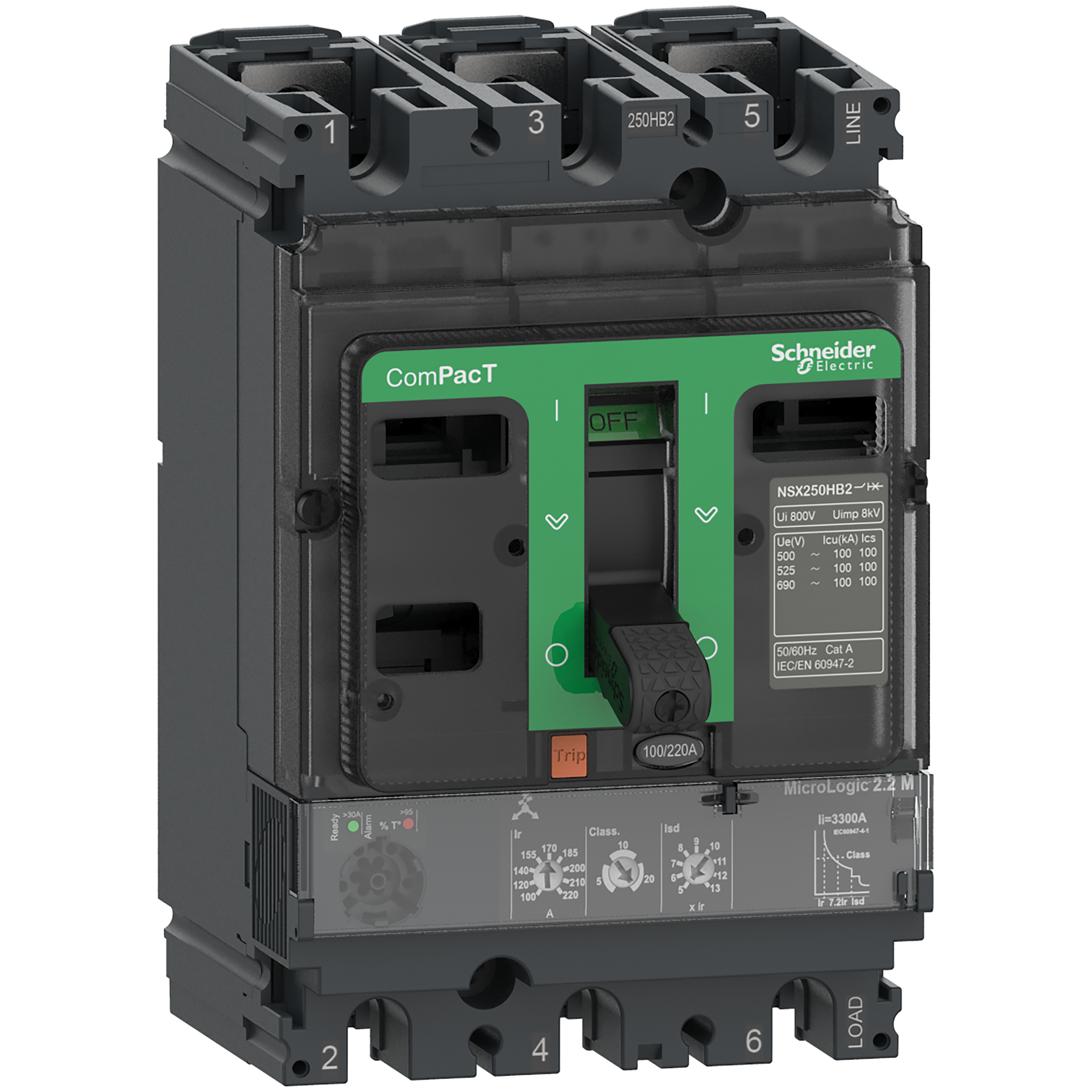

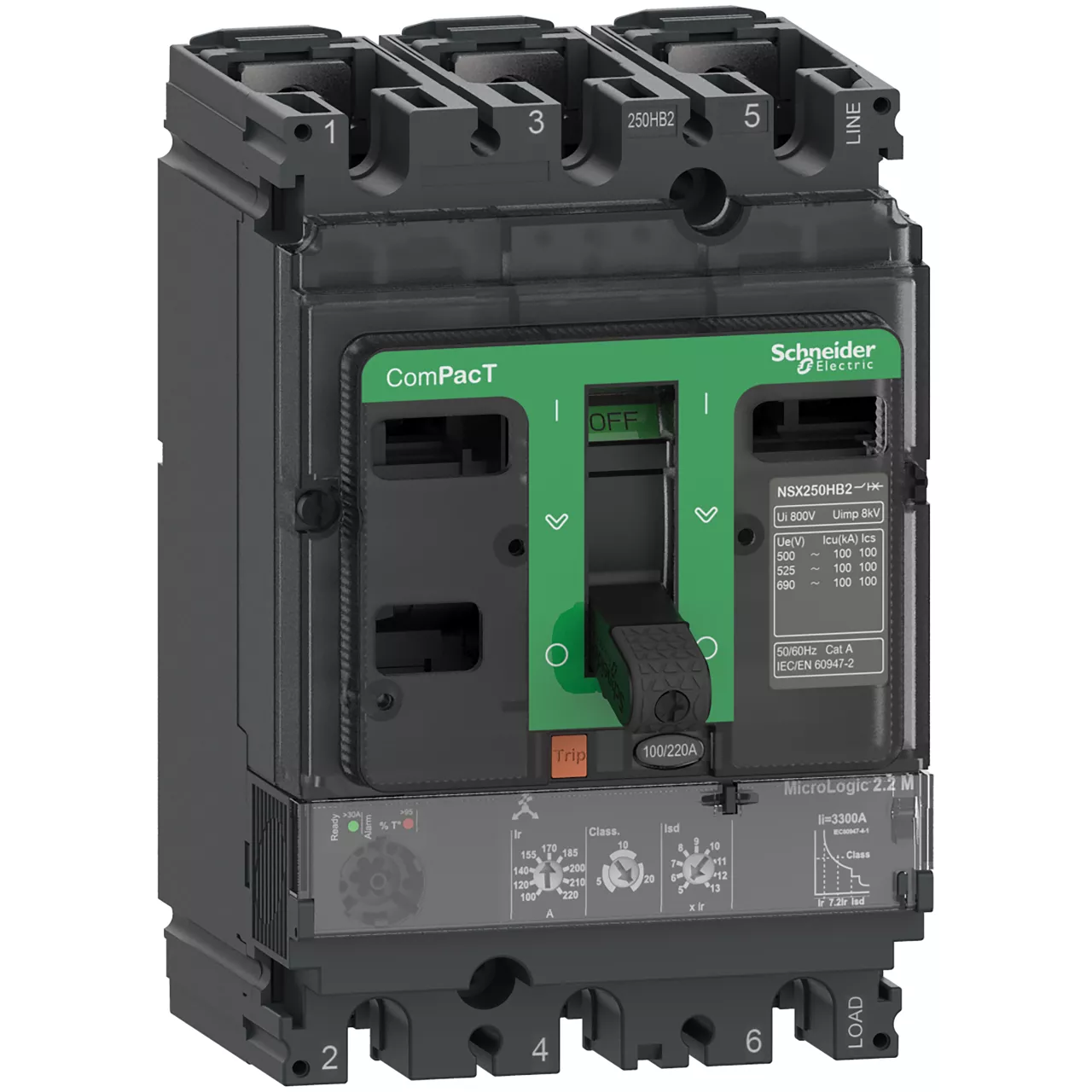

Wyłącznik, ComPacT NSX, NSX100HB2, Mic2.2, 50A, 3P, 100kA
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | C10W32M050 |
GTIN(EAN) | 3606482002531 |
Price unit | piece |
Catalog price | 4 113,80 zł (3 344,55 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 1,8 kg |
ETIM class: | Motor protection circuit-breaker |
Type of electrical connection of main circuit: | Screw connection |
Adjustment range undelayed short-circuit release: | 750 - 750 A |
Device construction: | Built-in device fixed built-in technique |
With integrated under voltage release: | no |
Number of poles: | 3 |
Degree of protection (IP): | IP40 |
Height: | 161 mm |
Rated operating voltage: | 690 - 690 V |
Depth: | 86 mm |
Width: | 105 mm |
Switch off technique: | Electronic |
Phase failure sensitive: | yes |
With integrated auxiliary switch: | no |
Type of control element: | Other |
Rated permanent current Iu: | 50 A |
Overload release current setting: | 25 - 50 A |
With thermal overload protection: | yes |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
