Description:

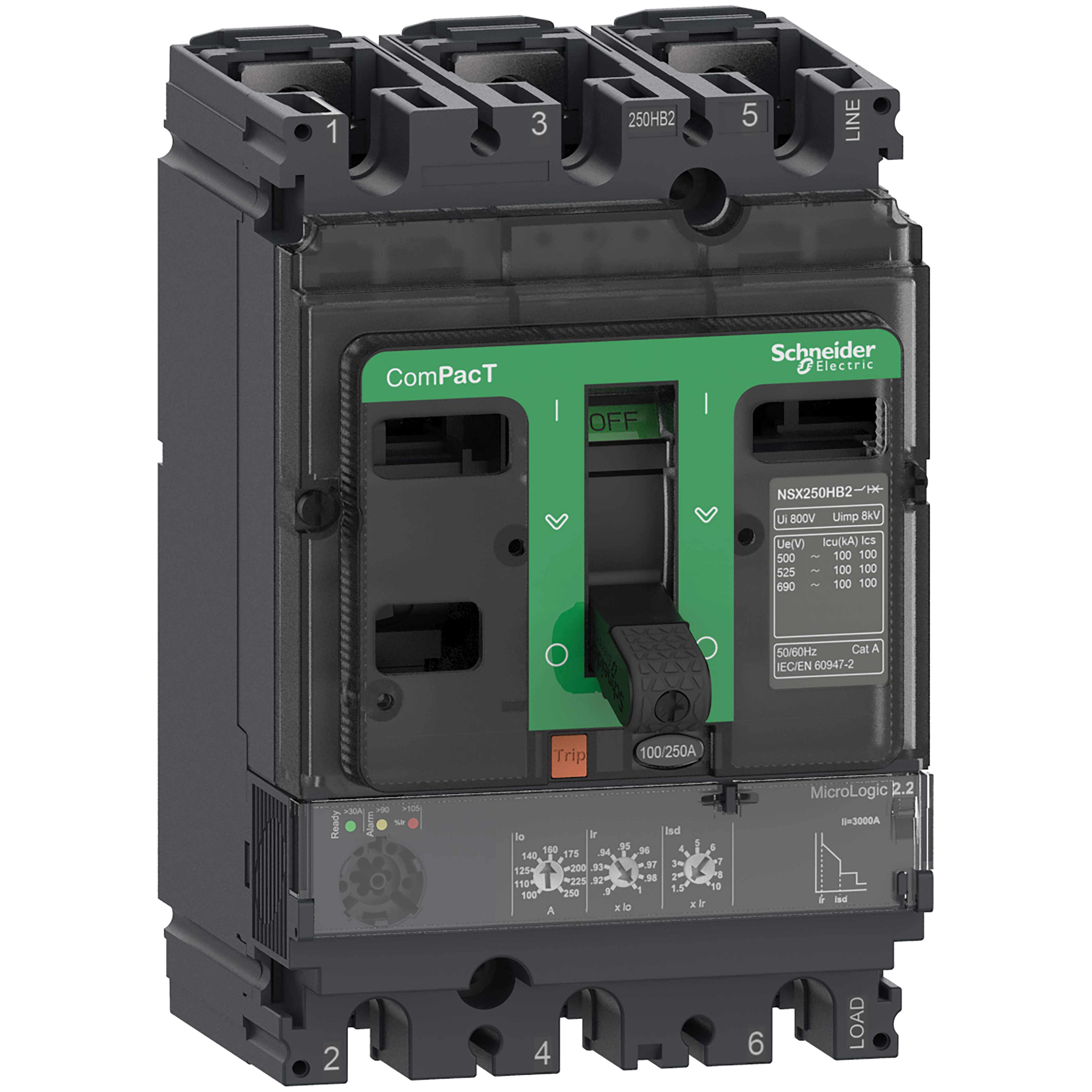

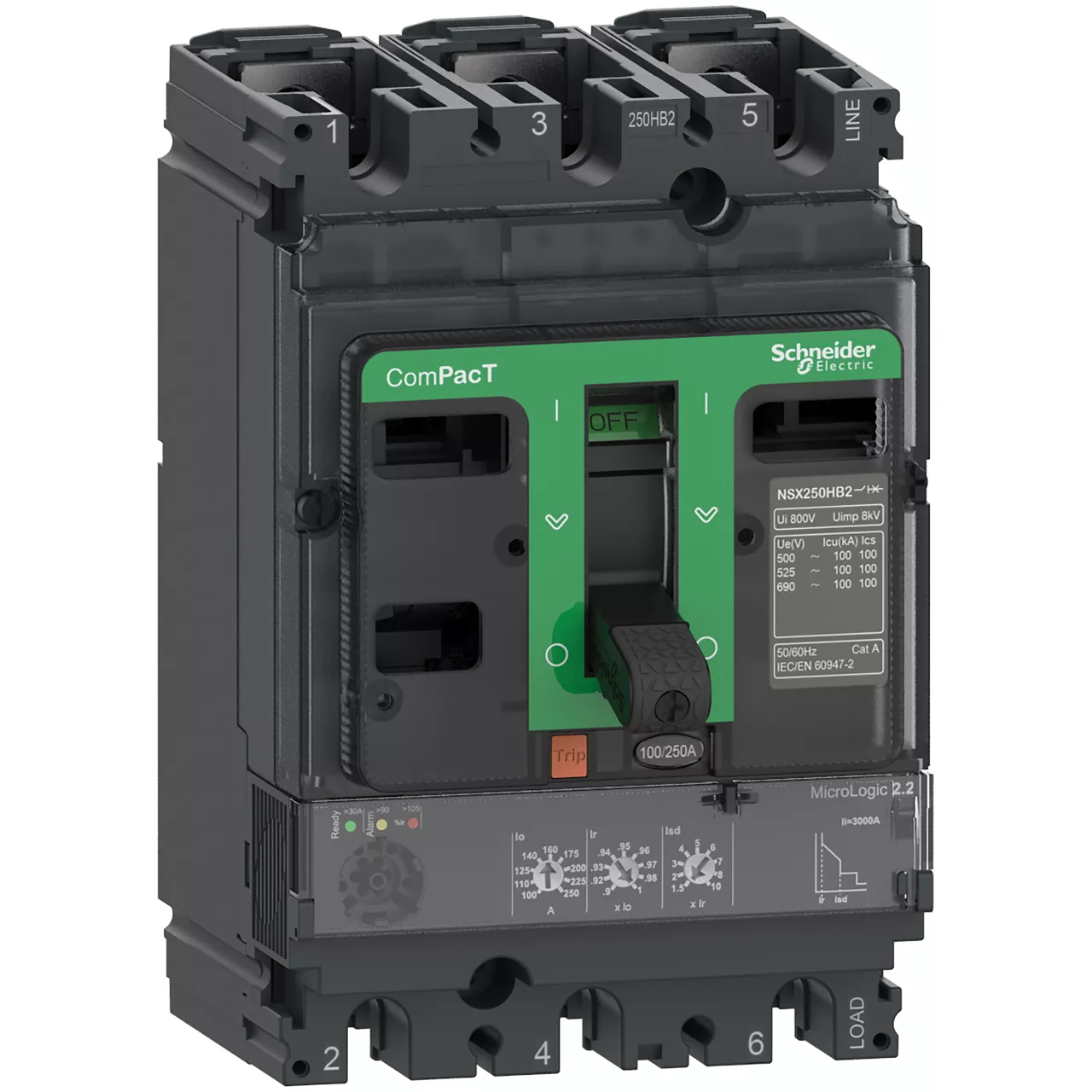

C10F32D100 to 3-biegunowy wyłącznik mocy z serii ComPacT NSX firmy Schneider Electric o prądzie znamionowym 100A z wbudowanym zabezpieczeniem elektronicznym Micrologic 2.2. Seria wyłączników ComPacT NSX 100 do 630 zapewnia wysokie parametry, a dzięki szerokiemu zakresow i wymiennych zespołów zabezpieczeń nadaje się do większości zastosowań w dziedzinie zabezpieczeń instalacji i urządzeń elektrycznych. •Prąd znamionowy: 100A •Liczba biegunów: 3P •Zdolność wyłączania 380/415V: 36 kA •Typ wyzwalacza: Elektroniczny
Number of auxiliary contacts as change-over contact:
0
Number of auxiliary contacts as normally open contact:
0
Number of auxiliary contacts as normally closed contact:
0
Adjustment range undelayed short-circuit release:
1500 - 1500 A
Integrated earth fault protection:
no
Device construction:
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting:
no
With integrated under voltage release:
no
Degree of protection (IP):
IP40
Number of poles:
3
Rated voltage:
690 - 690 V
DIN rail (top hat rail) mounting optional:
yes
Complete device with protection unit:
yes
With switched-off indicator:
yes
Motor drive integrated:
no
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz:
36 kA
Overload release current setting:
90 - 100 A
Type of control element:
Toggle
Rated permanent current Iu:
100 A
Adjustment range short-term delayed short-circuit release:
54 - 1000 A
Motor drive optional:
yes
Position of connection for main current circuit:
Front side
