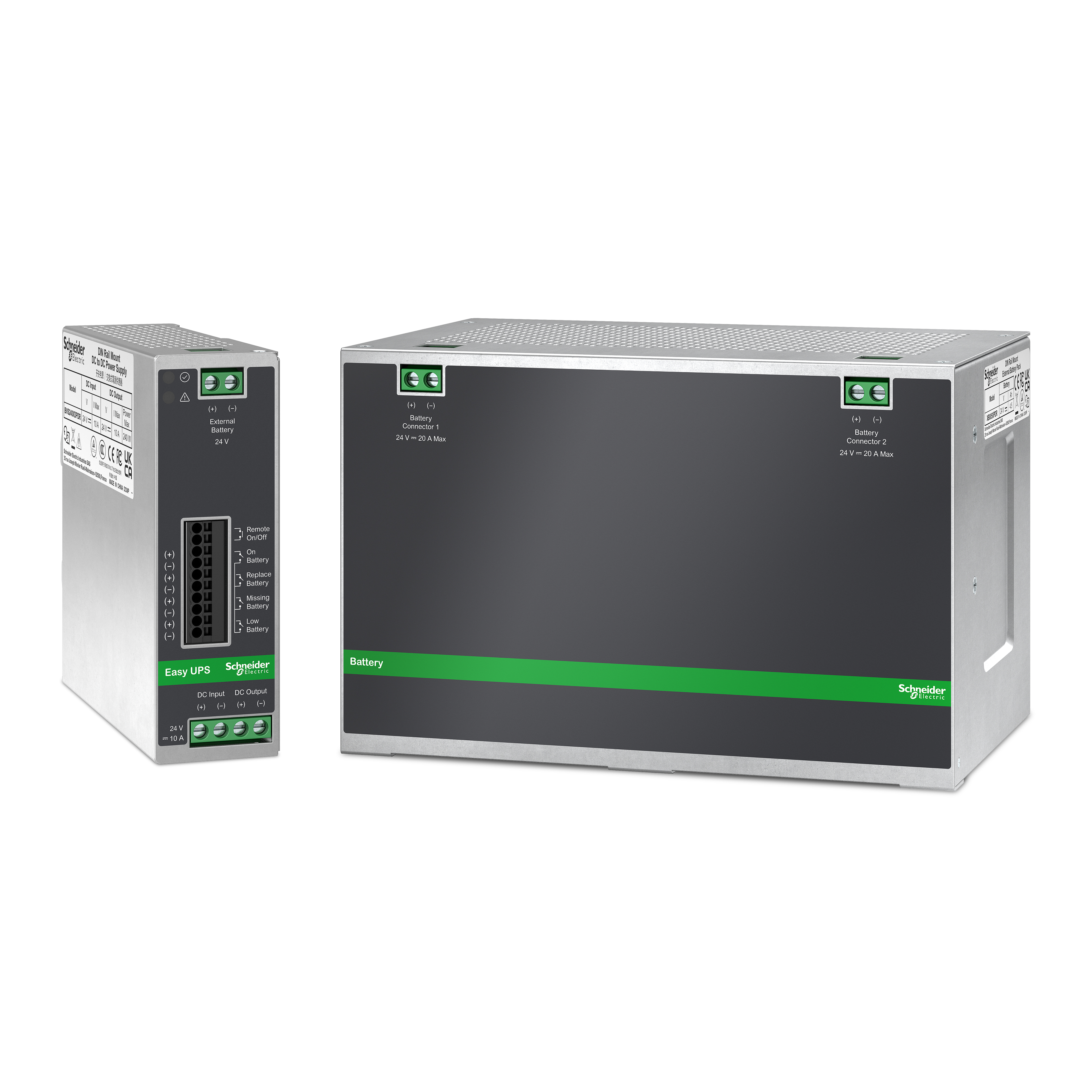

UPS 24VDC IN/OUT 480W, montaż na szynie DIN
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | BVS480XDPDR |
| GTIN(EAN) | 731304436959 |
| Price unit | piece |
| Catalog price | 836,40 zł (680,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przemysłowy zasilacz UPS 24 V DC na szynę DIN jest częścią rodziny Easy UPS firmy Schneider Electric. Ten model to zasilacz UPS o mocy 480 W, który oferuje wejście DC na wyjście DC do obsługi urządzeń przemysłowych. Posiada styki przekaźnika sygnalizacyjnego 0-5 V, obsługę maksymalnie 4 zewnętrznych akumulatorów, wskaźniki LED i przełącznik EPO dla lepszej kontroli nad infrastrukturą sterowania przemysłowego. Jest objęty 2-letnią standardową gwarancją.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 700 g |
| ETIM class: | AC/DC-power supply |
| 3rd secondary output voltage DC: | 0 - 0 V |
| Wall mounting possible: | no |
| Rail mounting possible: | yes |
| Suitable for safety functions: | yes |
| 3rd secondary output voltage AC: | 0 - 0 V |
| Output voltage stabilized: | yes |
| Short-circuit-proof: | yes |
| Degree of protection (IP): | IP20 |
| Depth: | 40 mm |
| Width: | 123.8 mm |
| 2nd secondary output voltage AC: | 0 - 0 V |
| Stabilized: | yes |
| Voltage type (supply voltage): | DC |
| Type of electric connection: | Screw connection |
| Built-in height: | 128.5 mm |
| 2nd secondary output voltage DC: | 0 - 0 V |
| 1st secondary output voltage DC: | 24 - 24 V |
| 1st secondary output voltage AC: | 0 - 0 V |
| Secondary voltage adjustable: | no |
| Power output: | 480 W |
| Max. output current 3: | 0 A |
| Rated supply voltage AC 50 Hz: | 0 - 0 V |
| Max. output current 2: | 0 A |
| Max. output current 1: | 20 A |
| Performance level according to EN ISO 13849-1: | None |
| Rated supply voltage DC: | 24 - 24 V |
| Rated supply voltage AC 60 Hz: | 0 - 0 V |
| Height: | 128.5 mm |
| Power consumption: | 480 VA |
| Direct mounting possible: | no |
| SIL according to IEC 61508: | None |
| Modular version: | yes |
| Degree of protection (NEMA): | Other |
