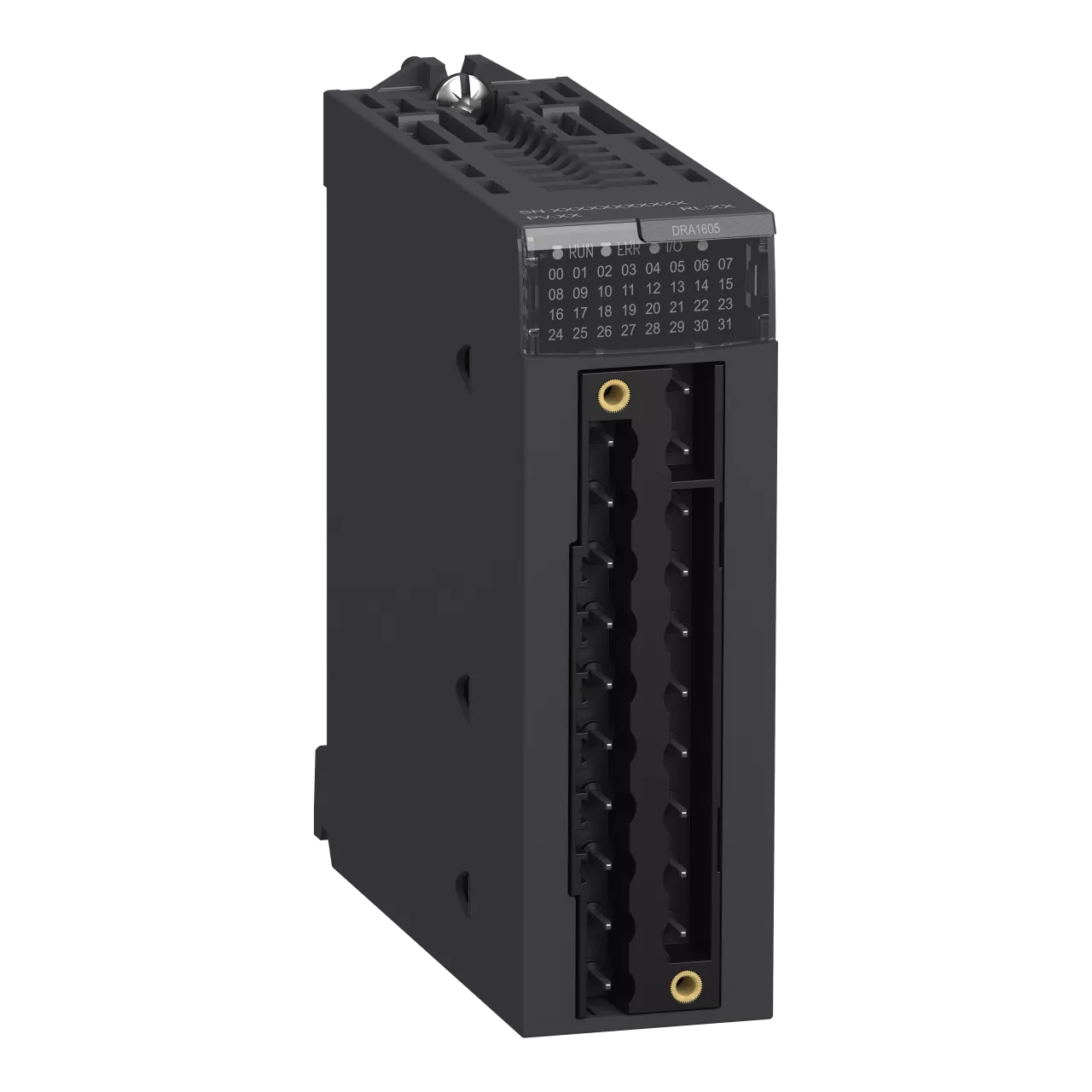

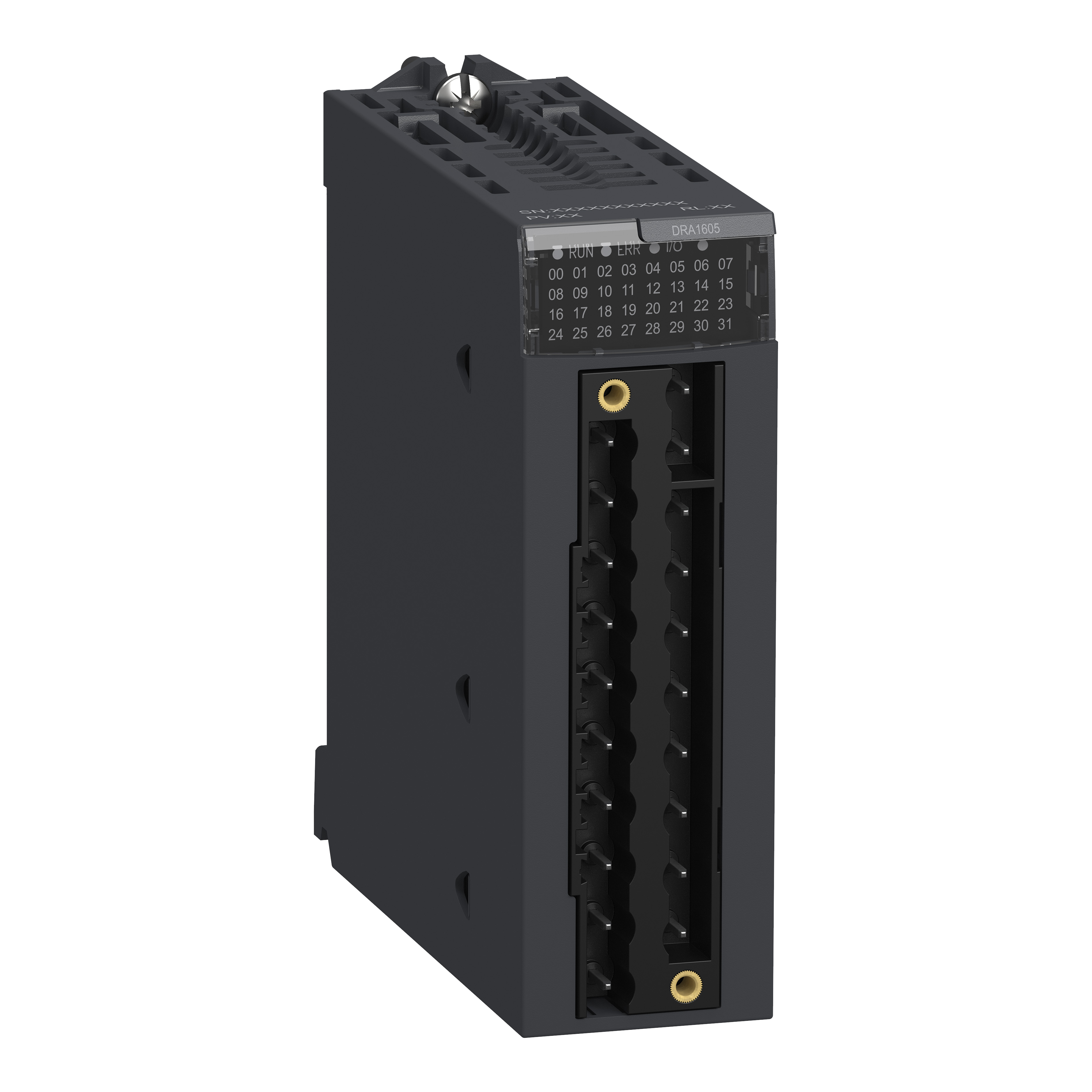

Modicon X80, moduł wyjść cyfrowych, 16 wyjść, kanaly przekaźnikowe, 24 V DC lub 24...240 V AC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | BMXDRA1605 |
| GTIN(EAN) | 3595863909234 |
| Price unit | piece |
| Catalog price | 1 943,40 zł (1 580,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 179 g |
| ETIM class: | PLC digital I/O-module |
| Input current at signal 1: | 0.65 mA |
| Supply voltage DC: | 24 - 24 V |
| Supply voltage AC 60 Hz: | 24 - 240 V |
| Supply voltage AC 50 Hz: | 24 - 240 V |
| Number of digital inputs: | 0 |
| Number of digital outputs: | 16 |
| Suitable for safety functions: | no |
| Appendant operation agent (Ex ib): | no |
| Type of output voltage: | AC/DC |
| Appendant operation agent (Ex ia): | no |
| Depth: | 150 mm |
| Explosion safety category for dust: | None |
| Width: | 33 mm |
| Voltage type (supply voltage): | AC/DC |
| Short-circuit protection, outputs available: | yes |
| Output current: | 2 A |
| Type of electric connection: | Plug-in connection |
| Type of digital output: | Relay |
| Type of voltage (input voltage): | AC/DC |
| Redundancy: | no |
| Permitted voltage at input: | 24 - 240 V |
| Explosion safety category for gas: | None |
| Digital outputs configurable: | no |
| Permitted voltage at output: | 24 - 240 V |
| Performance level according to EN ISO 13849-1: | None |
| Time delay at signal change: | 10 - 12 ms |
| Height: | 100 mm |
| Digital inputs configurable: | no |
| SIL according to IEC 61508: | None |
