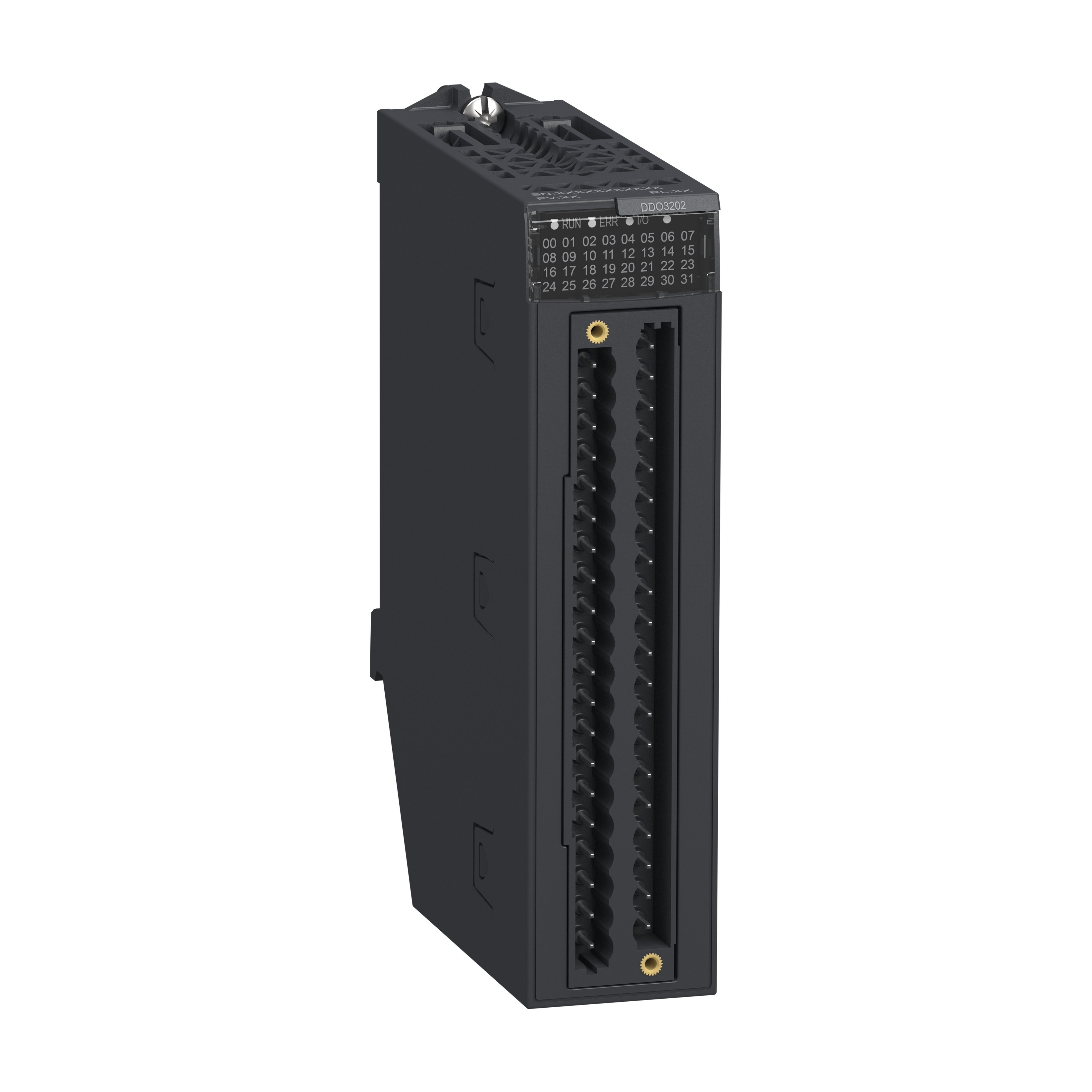

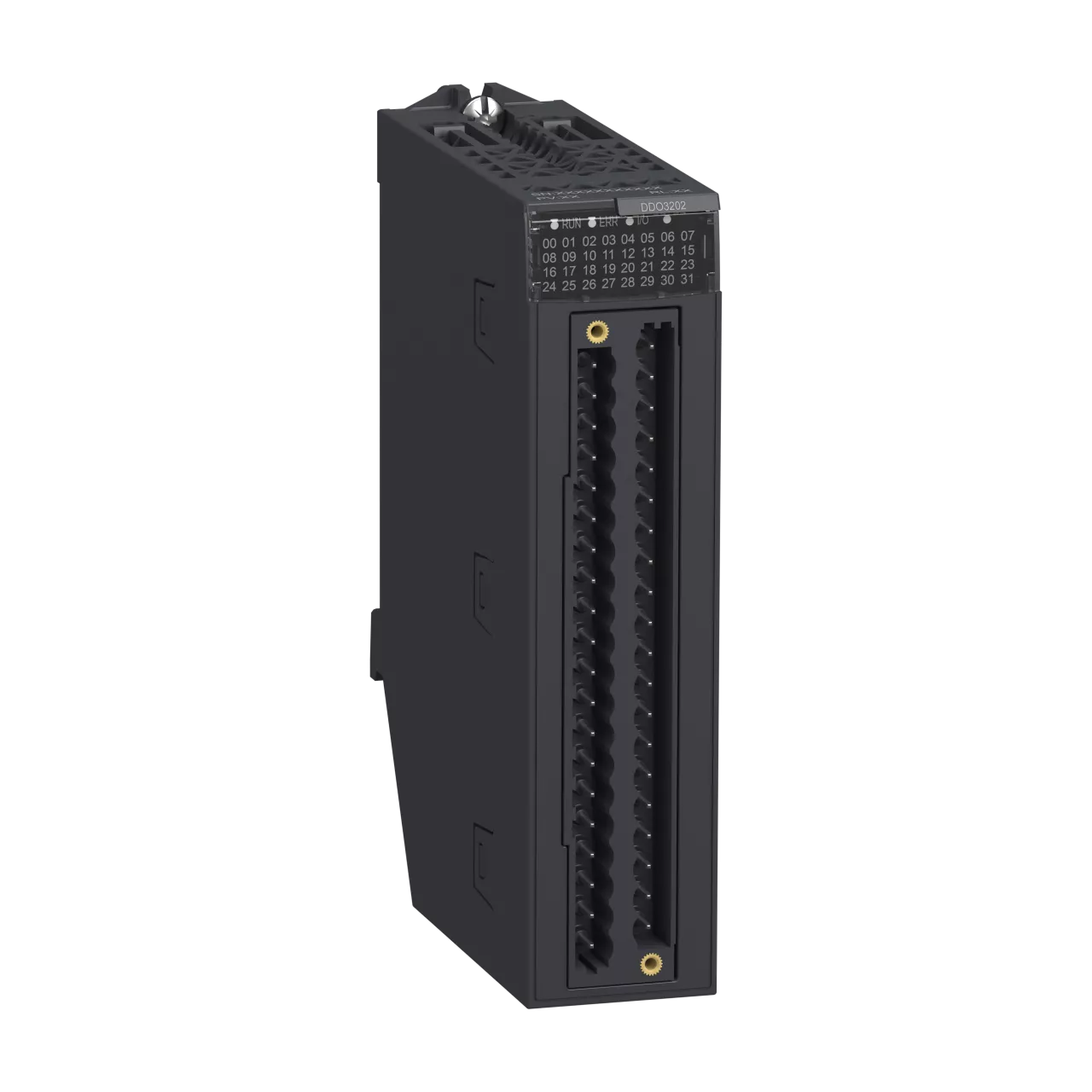

Moduł X80 DDO 32 12/24VDC 0.5A TB
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | BMXDDO3202 |
| GTIN(EAN) | 3606482177963 |
| Price unit | piece |
| Catalog price | 3 087,30 zł (2 510,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 310 g |
| ETIM class: | PLC digital I/O-module |
| Supply voltage DC: | 12 - 24 V |
| Number of digital inputs: | 0 |
| Number of digital outputs: | 32 |
| Suitable for safety functions: | no |
| Appendant operation agent (Ex ib): | no |
| Type of output voltage: | DC |
| Appendant operation agent (Ex ia): | no |
| Depth: | 86 mm |
| Explosion safety category for dust: | None |
| Width: | 32 mm |
| Voltage type (supply voltage): | DC |
| Short-circuit protection, outputs available: | no |
| Output current: | 0.5 A |
| Type of electric connection: | Plug-in connection |
| Type of digital output: | Transistor |
| Redundancy: | no |
| Explosion safety category for gas: | None |
| Digital outputs configurable: | no |
| Permitted voltage at output: | 12 - 24 V |
| Performance level according to EN ISO 13849-1: | None |
| Time delay at signal change: | 0.3 - 0.3 ms |
| Height: | 131 mm |
| Digital inputs configurable: | no |
| SIL according to IEC 61508: | None |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-09-23 00:05:19 |
| Files to download: |
