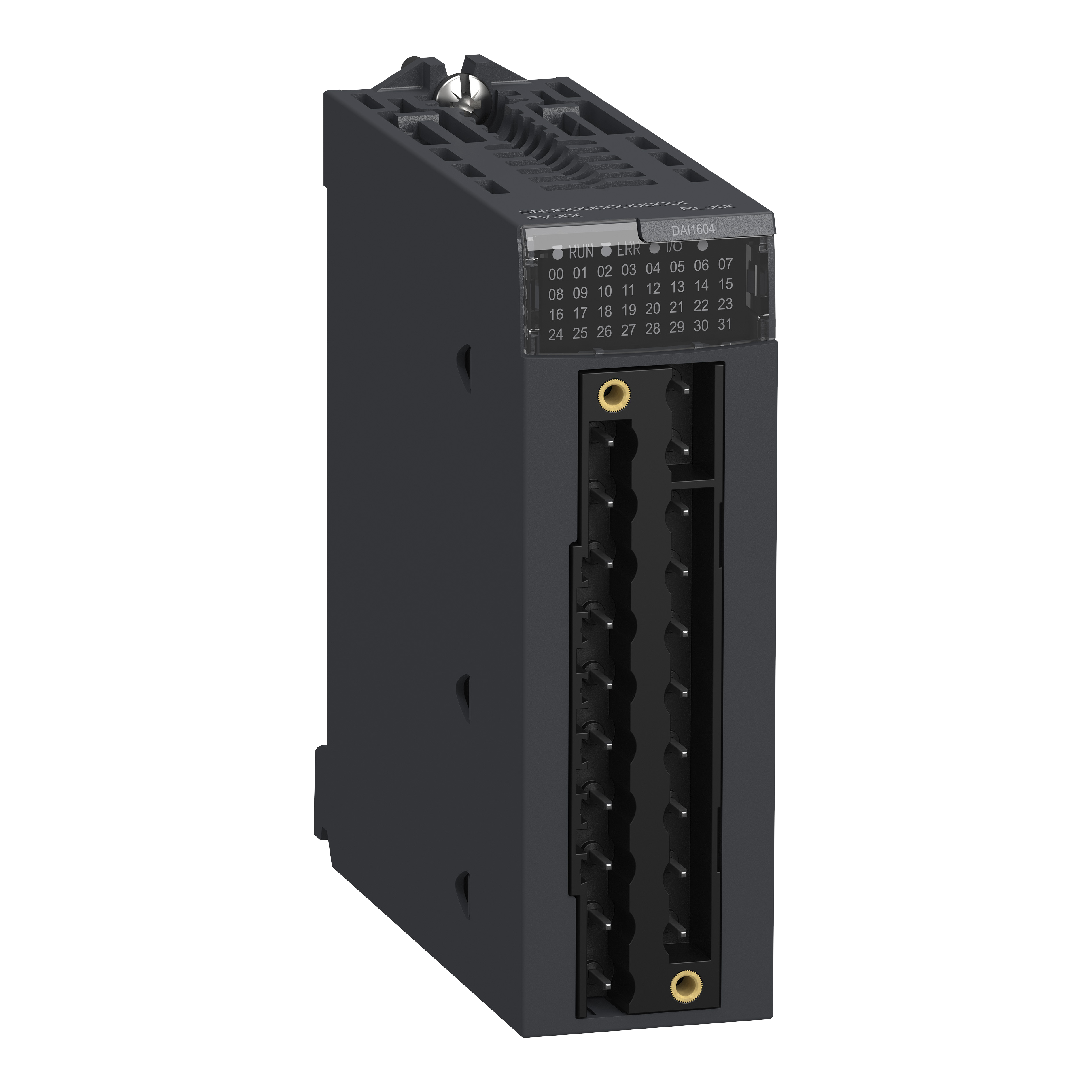

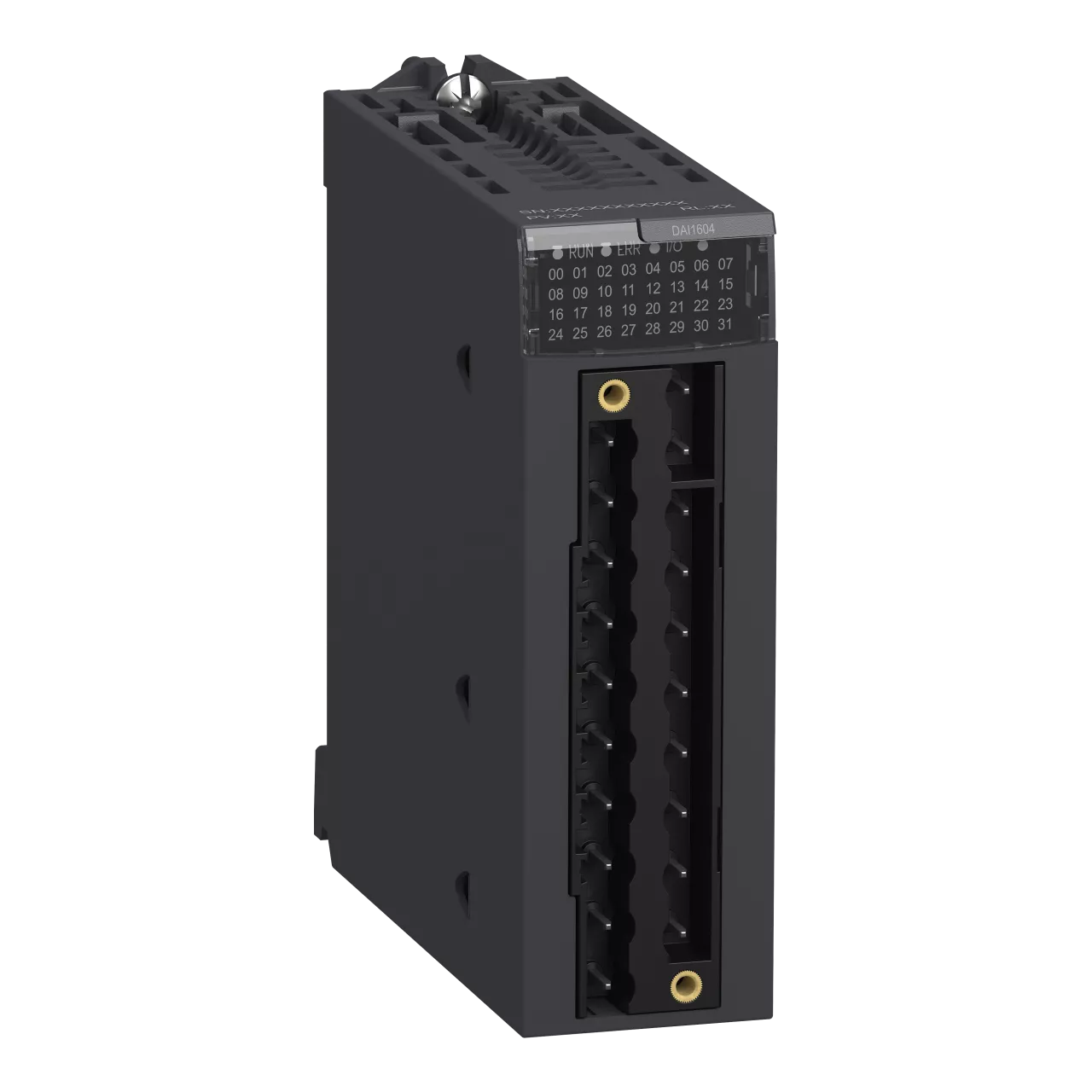

Modicon X80, moduł wejść cyfrowych, 16 wejść, 100..120 V AC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | BMXDAI1604 |
GTIN(EAN) | 3595863909999 |
Price unit | piece |
Catalog price | 1 537,50 zł (1 250,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 148 g |
ETIM class: | PLC digital I/O-module |
Input current at signal 1: | 5 mA |
Supply voltage AC 60 Hz: | 100 - 120 V |
Supply voltage AC 50 Hz: | 100 - 120 V |
Number of digital inputs: | 16 |
Number of digital outputs: | 0 |
Suitable for safety functions: | no |
Appendant operation agent (Ex ib): | no |
Type of output voltage: | AC |
Appendant operation agent (Ex ia): | no |
Depth: | 150 mm |
Explosion safety category for dust: | None |
Width: | 33 mm |
Voltage type (supply voltage): | AC |
Short-circuit protection, outputs available: | no |
Type of electric connection: | Plug-in connection |
Type of digital output: | None |
Type of voltage (input voltage): | AC |
Redundancy: | no |
Permitted voltage at input: | 85 - 132 V |
Explosion safety category for gas: | None |
Digital outputs configurable: | no |
Permitted voltage at output: | 85 - 132 V |
Performance level according to EN ISO 13849-1: | None |
Time delay at signal change: | 10 - 20 ms |
Height: | 100 mm |
Digital inputs configurable: | no |
SIL according to IEC 61508: | None |
