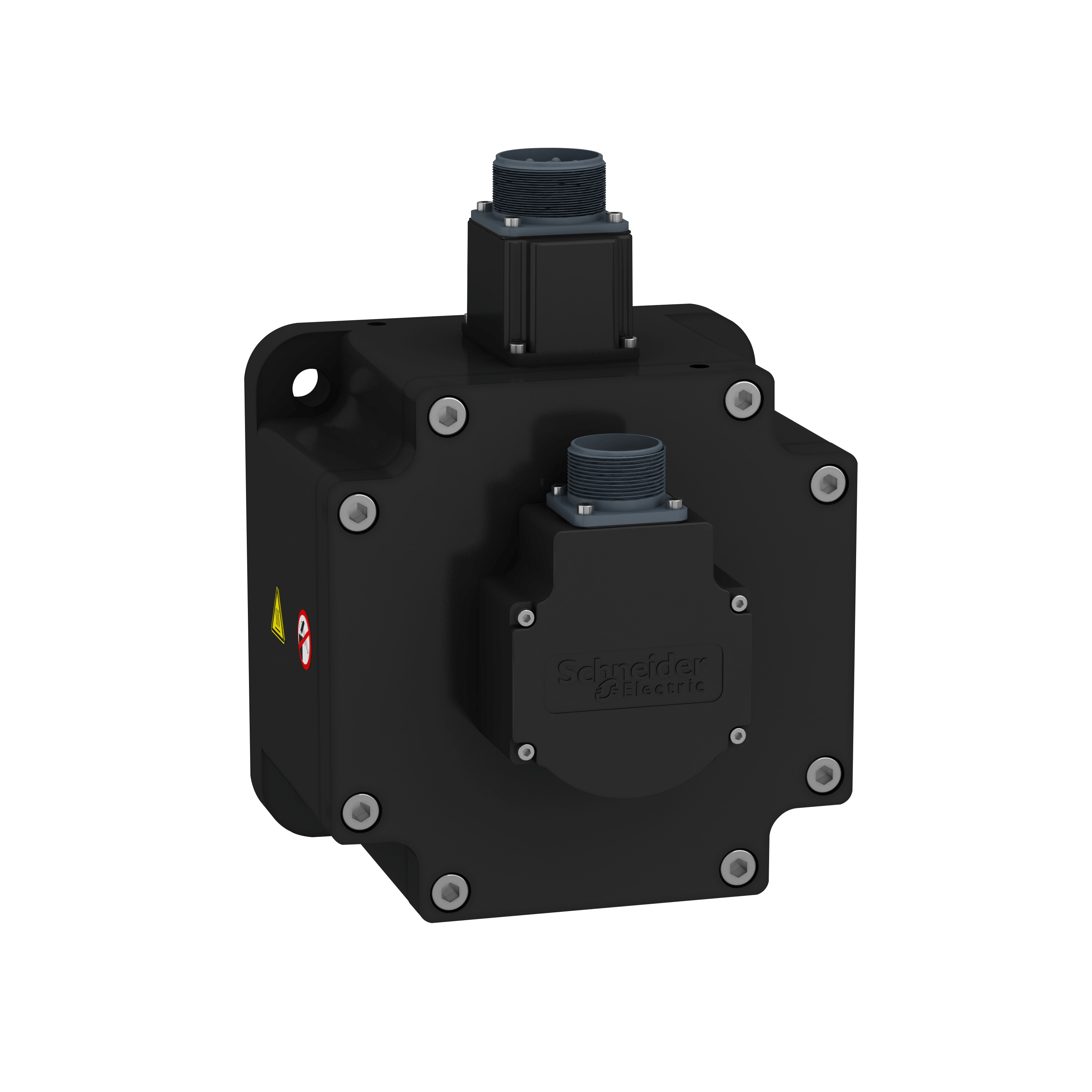

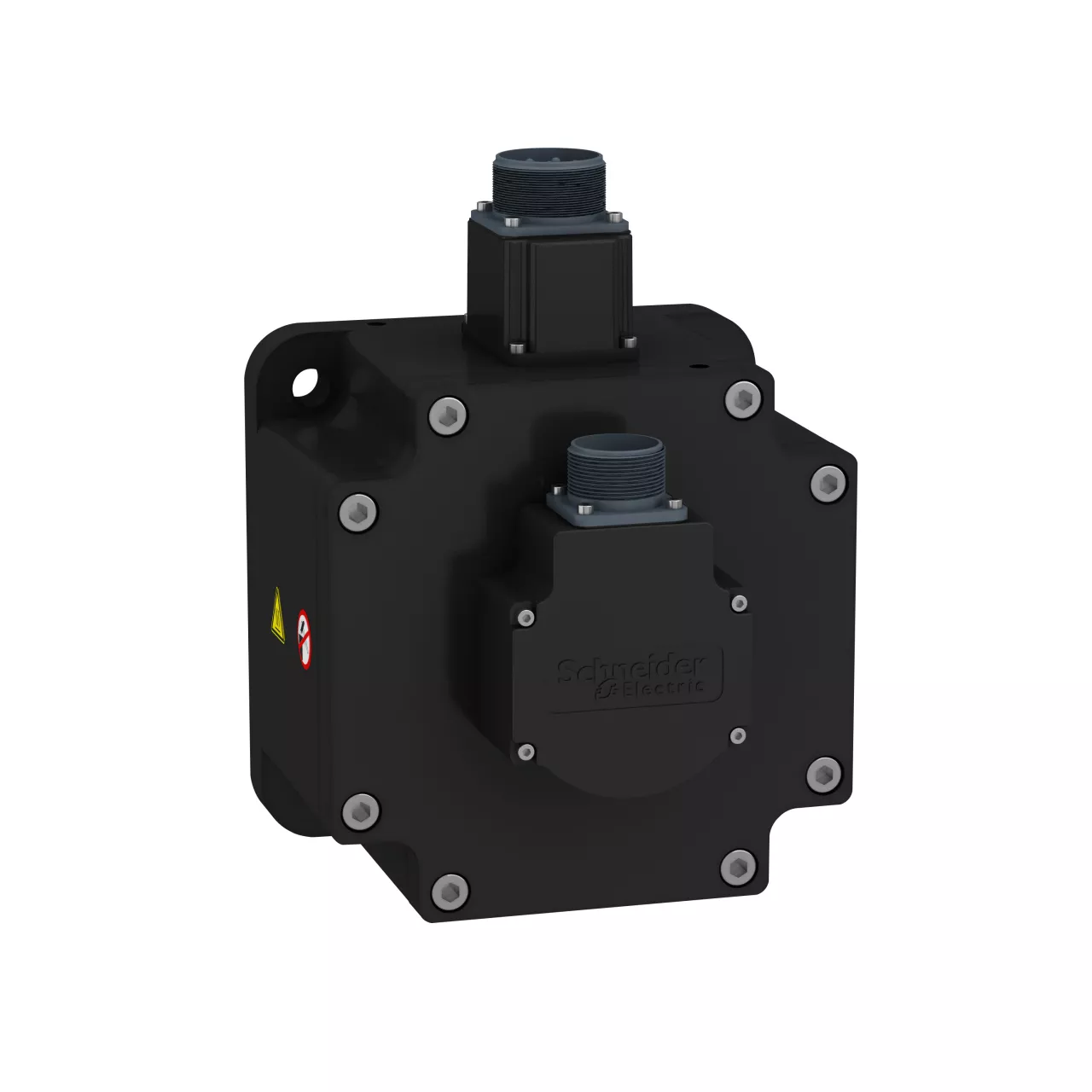

Lexium 28 Serwomotor BCH, 180mm, 3000W, z uszczelniaczem olejowym, wpustowy koniec wału, hamulec, złącze proste
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | BCH2MR3023CF6C |
GTIN(EAN) | 3606480734830 |
Price unit | piece |
Catalog price | 13 970,34 zł (11 358,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 24,63 kg |
ETIM class: | Electric motor |
Voltage type: | AC |
Housing material: | Other |
Rated rotational speed at rated frequency: | 3000 1/min |
Motor efficiency class: | Other |
With anti-condensation: | no |
Number of poles: | 0 |
Degree of protection (IP): | IP54 |
Nominal torque: | 5.39 Nm |
Construction type: | IM 3001 (B5) |
Model: | Rotary current synchronous motor |
Rated frequency: | 50 - 60 Hz |
Operating temperature: | 0 - 40 °C |
With positive temperature coefficient resistor (PTC): | no |
Shaft end type: | Parallel key |
Vacuum pressure impregnation (VPI): | Other |
With resistance temperature detector (RTD): | no |
Intrinsic safety (IS): | None |
Suitable for frequency control: | no |
Overload capability: | yes |
Cooling method: | Other |
Duty cycle: | Other |
Rated performance at rated frequency: | 0.85 kW |
Rated current: | 7 A |
Rated voltage: | 220 V |
Number of phases: | 3 |
Insulation class according to IEC: | F |
Starting current ratio: | 0 |
Starting torque ratio: | 0 |
Breakdown torque ratio: | 0 |
Bearing: | Ball bearing |
Frame size according to IEC: | 130 mm |
