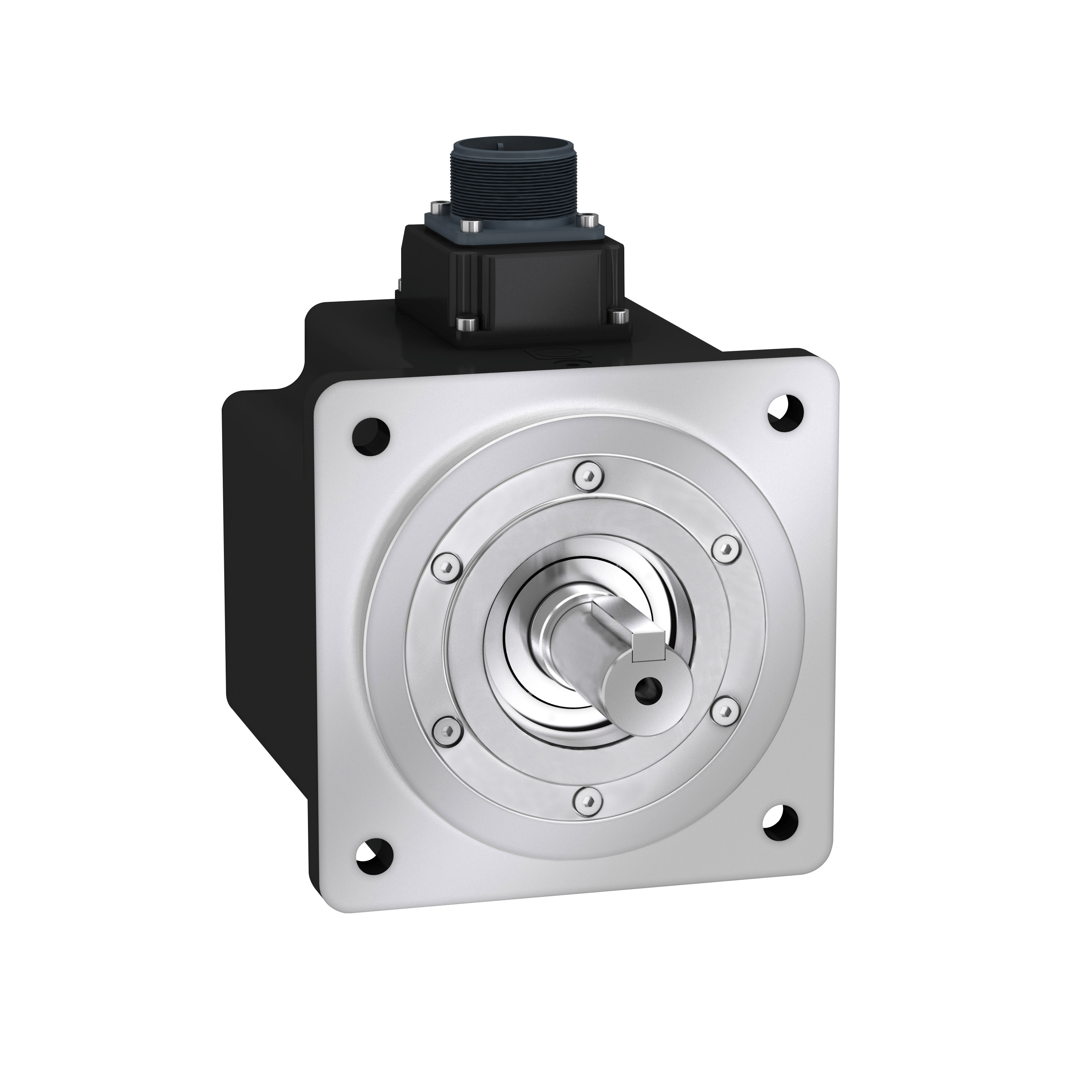

Lexium 28, serwosilnik BCH, 130mm, 850W, wał wpustowy, złącze proste
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | BCH2MM0813CA6C |
| GTIN(EAN) | 3606480733949 |
| Price unit | piece |
| Catalog price | 6 837,57 zł (5 559,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 19,97 kg |
| ETIM class: | Electric motor |
| Voltage type: | AC |
| Housing material: | Other |
| Rated rotational speed at rated frequency: | 3000 1/min |
| Motor efficiency class: | Other |
| With anti-condensation: | no |
| Number of poles: | 0 |
| Degree of protection (IP): | IP54 |
| Nominal torque: | 3.18 Nm |
| Construction type: | IM 3001 (B5) |
| Model: | Rotary current synchronous motor |
| Rated frequency: | 50 - 60 Hz |
| Operating temperature: | -20 - 40 °C |
| With positive temperature coefficient resistor (PTC): | no |
| Shaft end type: | Parallel key |
| Vacuum pressure impregnation (VPI): | Other |
| With resistance temperature detector (RTD): | no |
| Intrinsic safety (IS): | None |
| Suitable for frequency control: | no |
| Overload capability: | yes |
| Cooling method: | Other |
| Duty cycle: | Other |
| Rated performance at rated frequency: | 1 kW |
| Rated current: | 7 A |
| Rated voltage: | 220 V |
| Number of phases: | 3 |
| Insulation class according to IEC: | F |
| Starting current ratio: | 0 |
| Starting torque ratio: | 0 |
| Breakdown torque ratio: | 0 |
| Bearing: | Ball bearing |
| Frame size according to IEC: | 100 mm |
