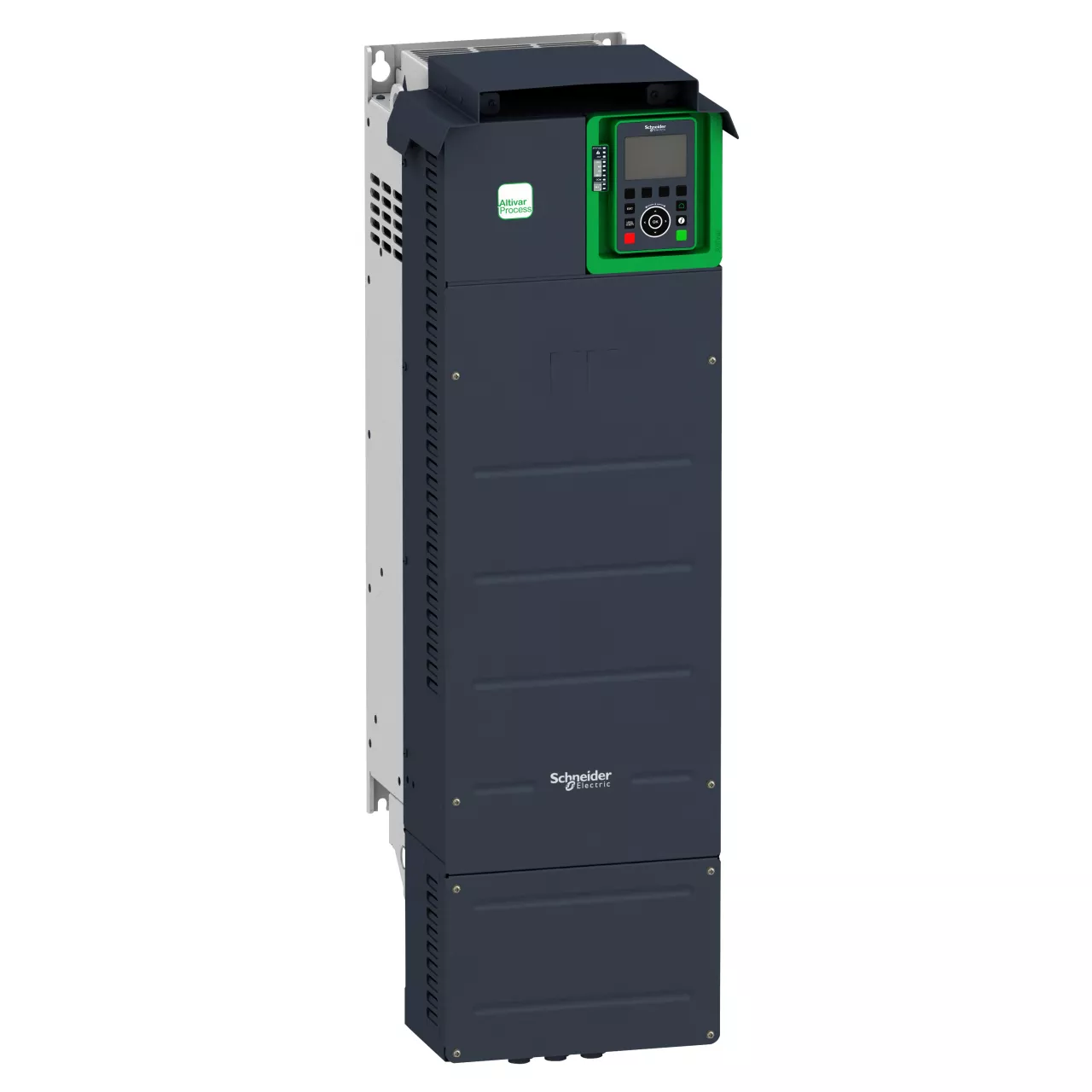

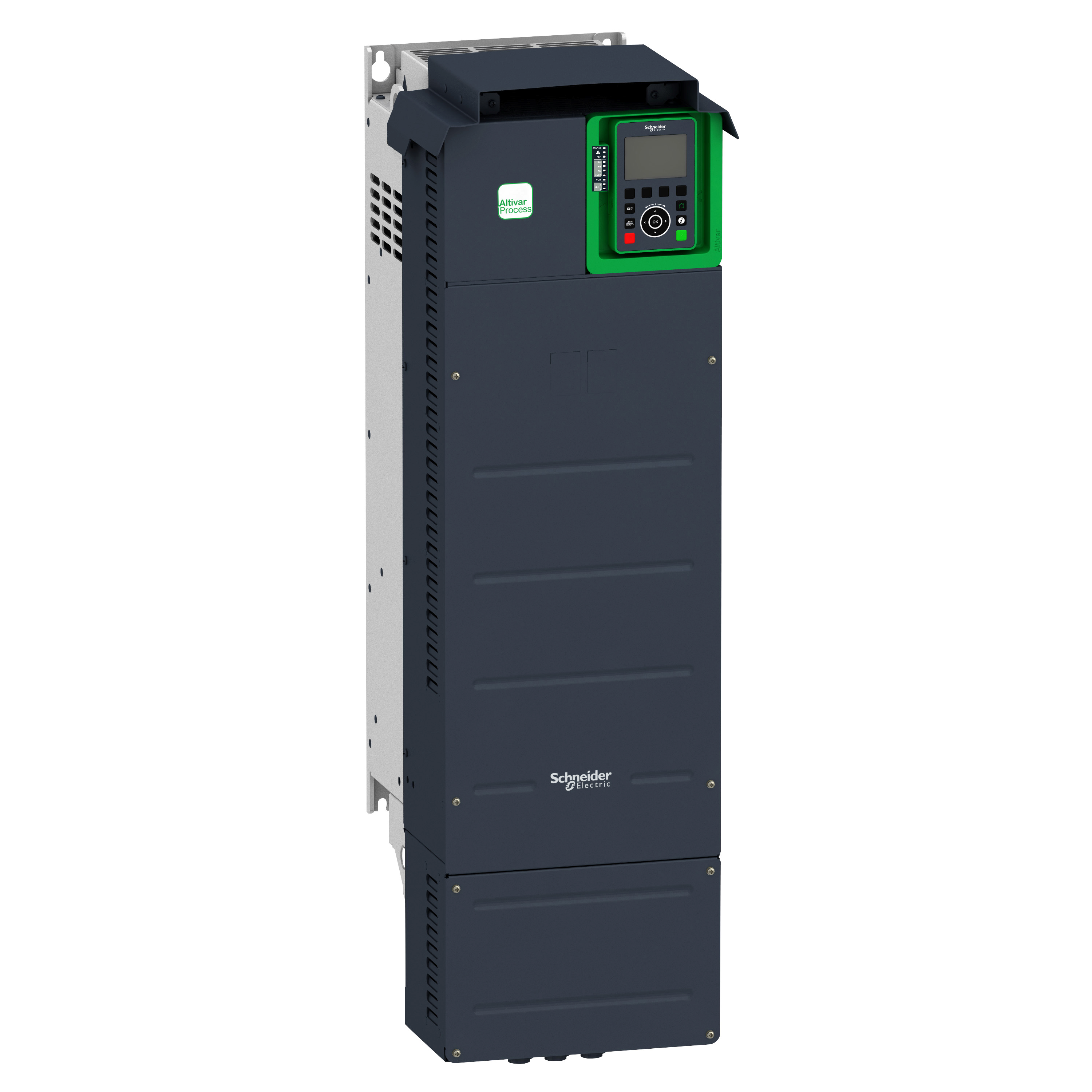

Przemiennik częstotliwości ATV930 3 fazowe 380/480VAC 50/60Hz 55kW 106A IP21
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | ATV930D55N4 |
GTIN(EAN) | 3606480883392 |
Price unit | piece |
Catalog price | 35 224,92 zł (28 638,15 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przemiennik częstotliwości Schneider Electric Altivar 930 z zintegrowaym filtrem EMC oraz czoperem hamującym, o stopniu ochrony IP21 i wejściowym napięciu znamionowym od 380VAC do 480VAC może zasilać silniki synchroniczne i asynchroniczne o obciążalności do 106,0A. Ten Altivar 930 może być stosowany dla silników o mocy do 55,0kW/75,0KM do zastosowań wymagających niewielkiego przeciążenia (do 120%) oraz do 45,0kW/60,0KM w zastosowaniach wymagających znacznego przeciążenia (do 150%). Ten Altivar 930 został zaprojektowany specjalnie dla systemów z charakterystyką stałomomentową.
Additional features:
Information | Value |
---|---|
Gross weight: | 71,2 kg |
ETIM class: | Frequency converter =< 1 kV |
Supporting protocol for BACnet: | no |
Number of digital inputs: | 8 |
Number of digital outputs: | 1 |
Number of analogue inputs: | 3 |
Supporting protocol for LON: | no |
Number of analogue outputs: | 2 |
Application in domestic- and commercial area permitted: | yes |
Application in industrial area permitted: | yes |
Integrated breaking resistance: | no |
Relative symmetric net frequency tolerance: | 5 % |
Relative symmetric net voltage tolerance: | 10 % |
Width: | 290 mm |
Number of phases output: | 3 |
With PC connection: | no |
Type of converter: | U converter |
Supporting protocol for SUCONET: | no |
Supporting protocol for other bus systems: | yes |
Max. output voltage: | 480 V |
Nominal output current I2N: | 106 A |
Supporting protocol for KNX: | no |
Supporting protocol for Data-Highway: | no |
Supporting protocol for Modbus: | no |
Supporting protocol for DeviceNet: | yes |
Supporting protocol for TCP/IP: | no |
Supporting protocol for PROFIBUS: | yes |
Degree of protection (IP): | IP21 |
Supporting protocol for ASI: | no |
Supporting protocol for INTERBUS: | no |
Supporting protocol for CAN: | yes |
Depth: | 325.5 mm |
Supporting protocol for AS-Interface Safety at Work: | no |
With control element: | yes |
Supporting protocol for PROFINET CBA: | no |
Supporting protocol for Foundation Fieldbus: | no |
Supporting protocol for EtherNet/IP: | yes |
Supporting protocol for SafetyBUS p: | no |
Supporting protocol for PROFIsafe: | no |
Supporting protocol for PROFINET IO: | yes |
Max. output at quadratic load at rated output voltage: | 55 kW |
Supporting protocol for DeviceNet Safety: | no |
Max. output at linear load at rated output voltage: | 55 kW |
Number of phases input: | 3 |
Max. output frequency: | 500 Hz |
Mains frequency: | 50/60 Hz |
Supporting protocol for INTERBUS-Safety: | no |
Height: | 922 mm |
Mains voltage: | 380 - 480 V |
4-quadrant operation possible: | yes |
Number of HW-interfaces RS-485: | 3 |
Number of HW-interfaces RS-422: | 0 |
Number of HW-interfaces USB: | 0 |
Number of HW-interfaces serial TTY: | 0 |
Number of HW-interfaces other: | 0 |
Number of HW-interfaces parallel: | 0 |
Supporting protocol for SERCOS: | no |
Number of interfaces PROFINET: | 0 |
With optical interface: | yes |
Number of HW-interfaces RS-232: | 0 |
Number of HW-interfaces industrial Ethernet: | 0 |
