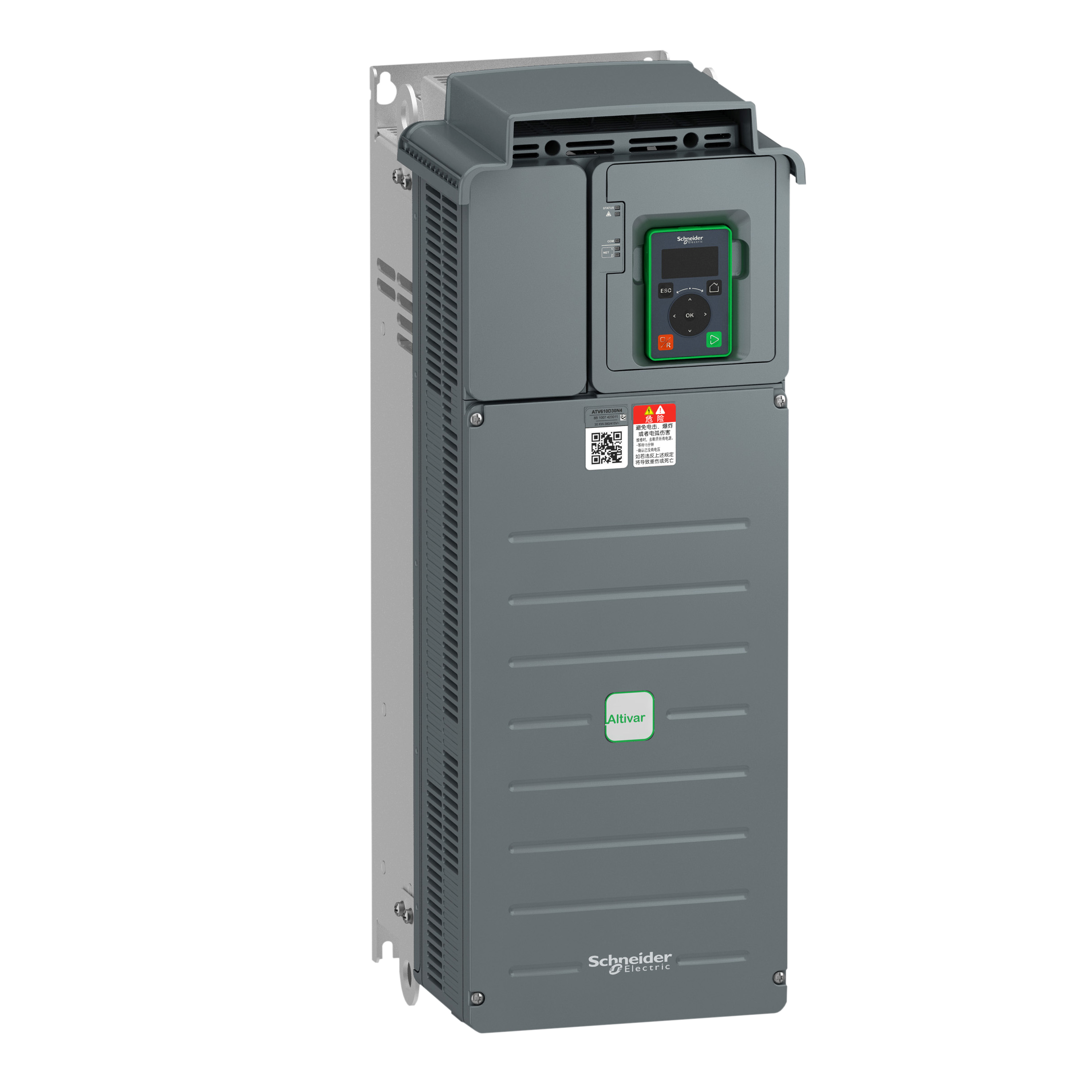

Easy Altivar 610, 45 kW, 3f, 380...460 V, z filtrem EMC C3, IP 20
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | ATV610D45N4 |
| GTIN(EAN) | 3606480700613 |
| Price unit | piece |
| Catalog price | 15 044,15 zł (12 231,02 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ten napęd Easy Altivar 610 jest przetwornikiem częstotliwości dla trójfazowych silników asynchronicznych. Pracuje przy znamionowym napięciu zasilania od 380V do 415V AC. Nadaje się do silników o mocy znamionowej do 45kW / 60hp dla zastosowań wymagających lekkiego przeciążenia (do 120%). Nadaje się do silników o mocy znamionowej do 37kW / 50hp do zastosowań wymagających znacznego przeciążenia (do 150%). Oferuje rozwiązanie typu "plug & play", w którym parametry są ustawione fabrycznie do pożądanej konfiguracji, co pomaga zaoszczędzić czas kontroli procesu i obsługi. Posiada zintegrowane filtry wejściowe zakłóceń radiowych zgodne z normą EMC dla "produktów" napędów elektrycznych o zmiennej prędkości IEC/EN 61800-3, wydanie 2, kategoria C3 w środowisku 1 lub 2. Waży 26,8kg, a jego wymiary to, 226mm szerokości, 613mm wysokości, 271mm głębokości. Napęd ten został specjalnie zaprojektowany do standardowych zastosowań w segmentach rynku wody i ścieków oraz ropy i gazu, a także w domenach zarządzania procesami i maszynami oraz zarządzania budynkami.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 30,2 kg |
| ETIM class: | Frequency converter =< 1 kV |
| Supporting protocol for BACnet: | no |
| Number of digital inputs: | 6 |
| Number of digital outputs: | 0 |
| Number of analogue inputs: | 3 |
| Supporting protocol for LON: | no |
| Number of analogue outputs: | 2 |
| Application in domestic- and commercial area permitted: | yes |
| Application in industrial area permitted: | yes |
| Integrated breaking resistance: | no |
| Relative symmetric net frequency tolerance: | 5 % |
| Relative symmetric net voltage tolerance: | 10 % |
| Width: | 226 mm |
| Number of phases output: | 3 |
| With PC connection: | no |
| Type of converter: | U converter |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | no |
| Max. output voltage: | 415 V |
| Nominal output current I2N: | 88 A |
| Supporting protocol for KNX: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Degree of protection (IP): | IP20 |
| Supporting protocol for ASI: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | no |
| Depth: | 271 mm |
| Supporting protocol for AS-Interface Safety at Work: | no |
| With control element: | yes |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Max. output at quadratic load at rated output voltage: | 45 kW |
| Supporting protocol for DeviceNet Safety: | no |
| Max. output at linear load at rated output voltage: | 45 kW |
| Number of phases input: | 3 |
| Max. output frequency: | 500 Hz |
| Mains frequency: | 50/60 Hz |
| Supporting protocol for INTERBUS-Safety: | no |
| Height: | 613 mm |
| Mains voltage: | 380 - 415 V |
| 4-quadrant operation possible: | yes |
| Number of HW-interfaces RS-485: | 1 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces other: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Supporting protocol for SERCOS: | no |
| Number of interfaces PROFINET: | 0 |
| With optical interface: | no |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces industrial Ethernet: | 0 |
