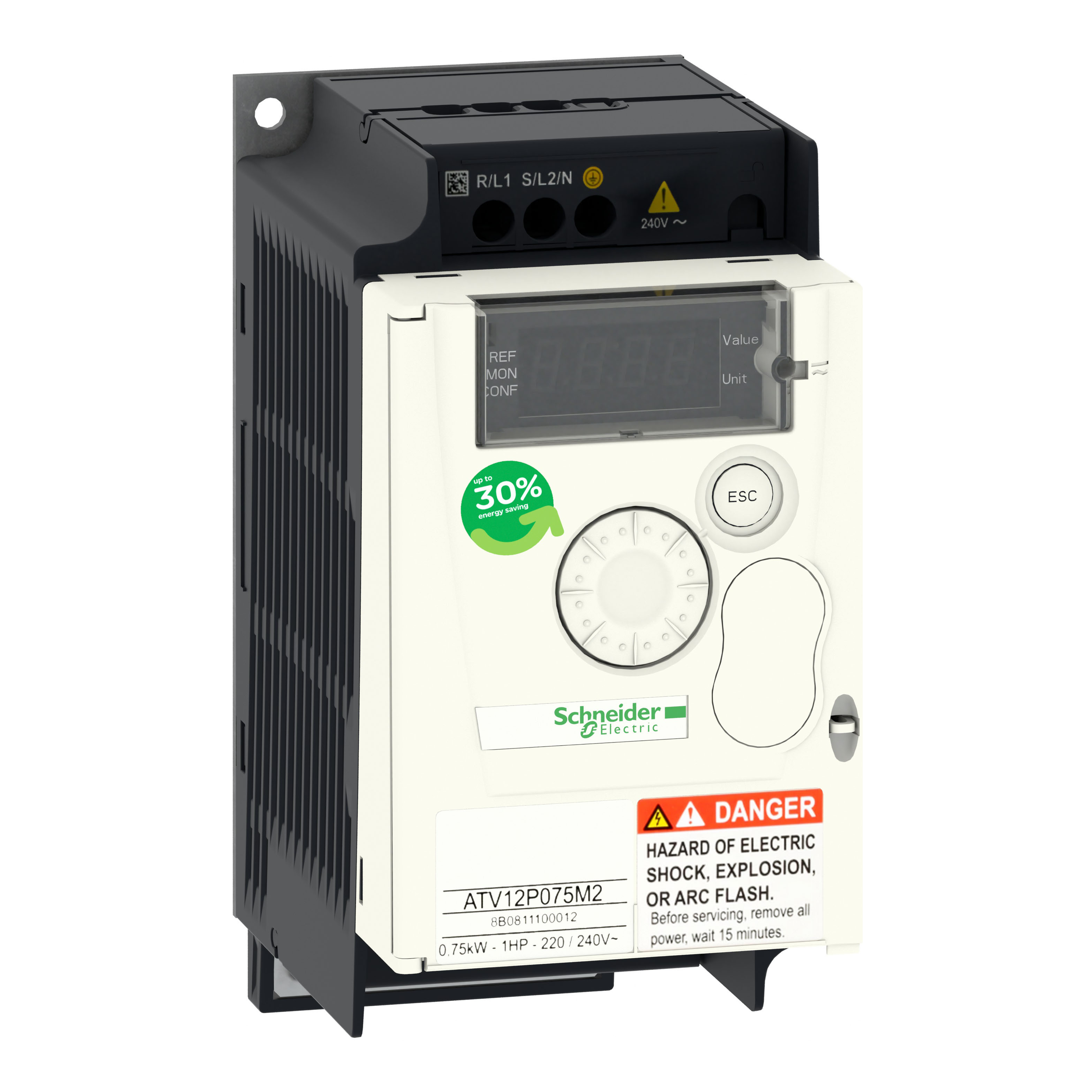

Przemiennik częstotliwości ATV12 1 fazowe 200/240VAC 50/60Hz 0.75kW 4.2A IP20
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | ATV12P075M2 |
| GTIN(EAN) | 3606480071133 |
| Price unit | piece |
| Catalog price | 1 884,46 zł (1 532,08 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przemiennik częstotliwości Altivar 12 z zintegrowanym filtrem EMC o stopniu ochrony IP20 i wejściowym napięciu znamionowym od 200V do 240V AC. może zasilać silniki asynchroniczne o obciążalności do 4,2 A. Ten Altivar 12 może być stosowany dla silników o mocy znamionowej do 0,75kW / 1KM. Ten Altivar 12 jest przeznaczony dla prostych maszyn i urządzeń przemysłowych i komercyjnych, takich jak przenośniki, pompy, bariery dostępu i bieżnie.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 954 g |
| ETIM class: | Frequency converter =< 1 kV |
| Supporting protocol for BACnet: | no |
| Number of digital inputs: | 4 |
| Number of digital outputs: | 1 |
| Number of analogue inputs: | 1 |
| Supporting protocol for LON: | no |
| Number of analogue outputs: | 1 |
| Application in domestic- and commercial area permitted: | yes |
| Application in industrial area permitted: | yes |
| Integrated breaking resistance: | no |
| Relative symmetric net frequency tolerance: | 5 % |
| Relative symmetric net voltage tolerance: | 10 % |
| Width: | 72 mm |
| Number of phases output: | 3 |
| With PC connection: | yes |
| Type of converter: | U converter |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | no |
| Max. output voltage: | 230 V |
| Nominal output current I2N: | 4.2 A |
| Supporting protocol for KNX: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Degree of protection (IP): | IP20 |
| Supporting protocol for ASI: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | no |
| Depth: | 102.2 mm |
| Supporting protocol for AS-Interface Safety at Work: | no |
| With control element: | yes |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Max. output at quadratic load at rated output voltage: | 0.75 kW |
| Supporting protocol for DeviceNet Safety: | no |
| Max. output at linear load at rated output voltage: | 0.75 kW |
| Number of phases input: | 1 |
| Max. output frequency: | 400 Hz |
| Mains frequency: | 50/60 Hz |
| Supporting protocol for INTERBUS-Safety: | no |
| Height: | 143 mm |
| Mains voltage: | 200 - 240 V |
| 4-quadrant operation possible: | no |
| Number of HW-interfaces RS-485: | 1 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces other: | 8 |
| Number of HW-interfaces parallel: | 0 |
| Supporting protocol for SERCOS: | no |
| Number of interfaces PROFINET: | 0 |
| With optical interface: | no |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces industrial Ethernet: | 0 |
