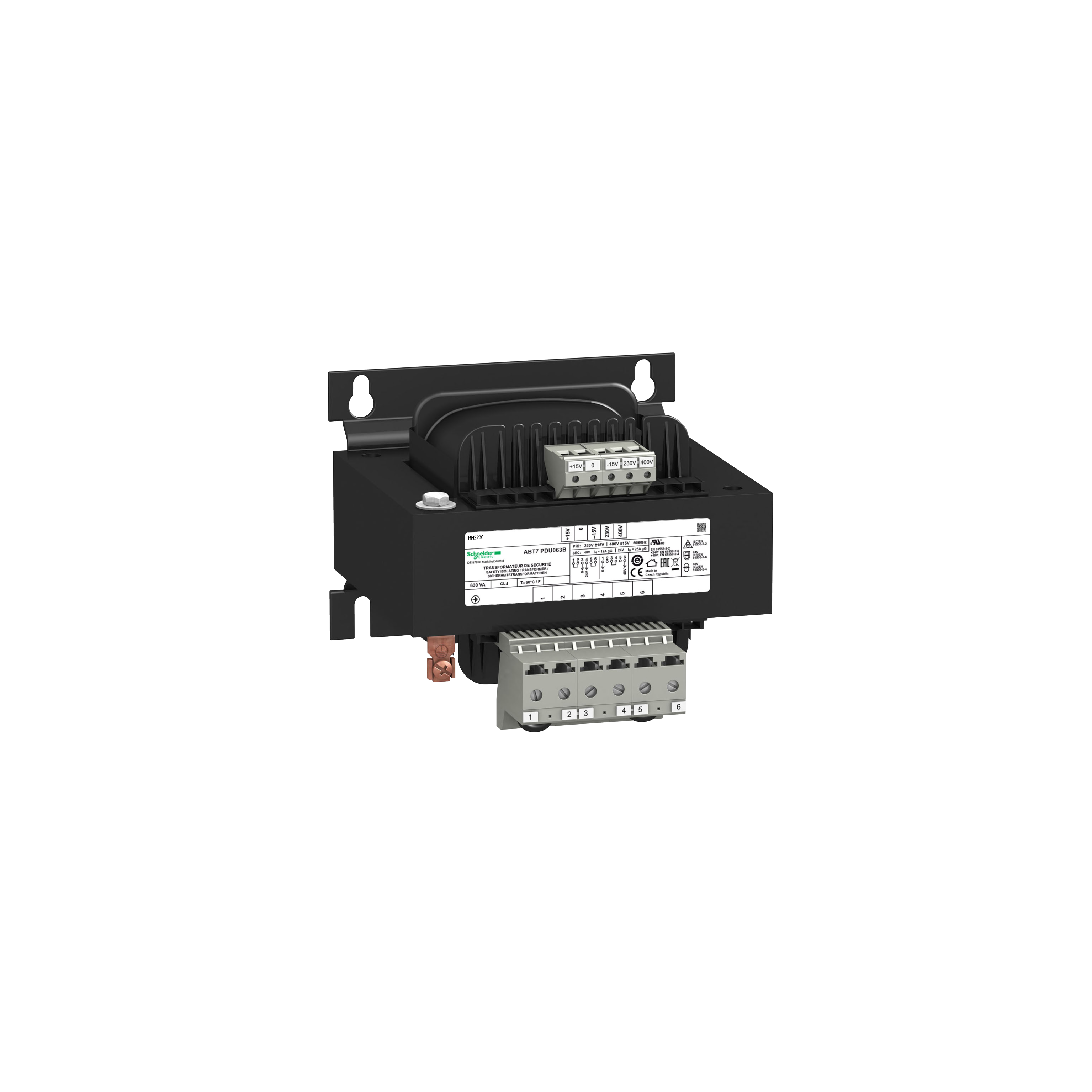

Phaseo ABT7/ABL6, separacyjny transformator napięcia, 230...400 V, 2 x 24 V, 250 VA
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | ABT7PDU063B |
| GTIN(EAN) | 3389119401135 |
| Price unit | piece |
| Catalog price | 3 160,61 zł (2 569,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 8,186 kg |
| ETIM class: | One-phase control transformer |
| Conductor material: | Other |
| Primary voltage 2: | 385 - 415 V |
| Primary voltage 1: | 230 - 400 V |
| Rated apparent power: | 250 VA |
| Short-circuit-proof: | yes |
| Type of insulation material according to IEC 85: | F |
| Degree of protection (IP): | IP20 |
| Relative short circuit voltage: | 5 % |
| Depth: | 112.5 mm |
| Width: | 150 mm |
| Built as energy saving transformer: | yes |
| Suitable for mounting on PCB: | no |
| Built as isolating transformer: | yes |
| Built as safety transformer: | yes |
| Secondary voltage 1: | 24 - 24 V |
| Secondary voltage 2: | 24 - 24 V |
| Height: | 146 mm |
| Ring core: | no |
| Modular version: | yes |
