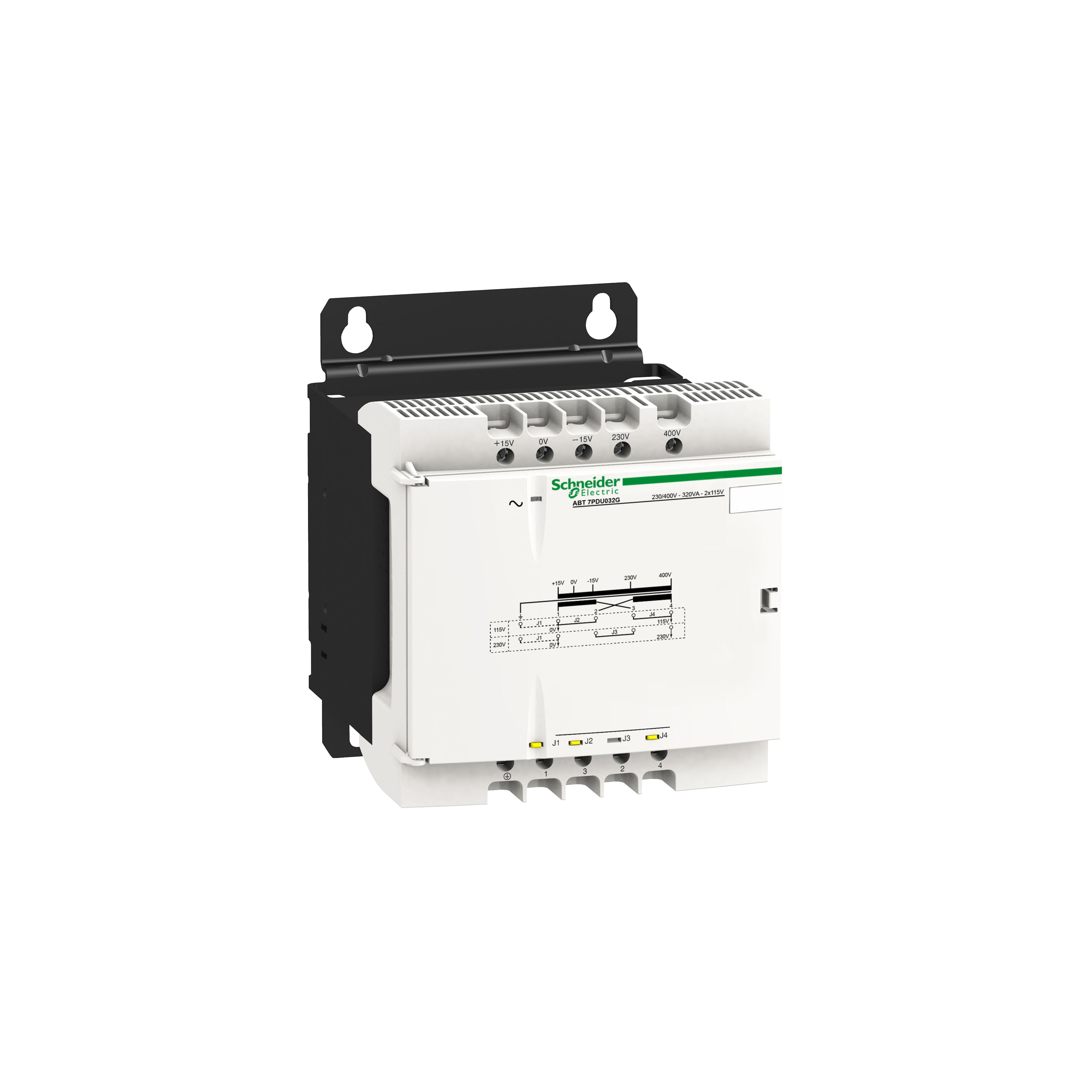

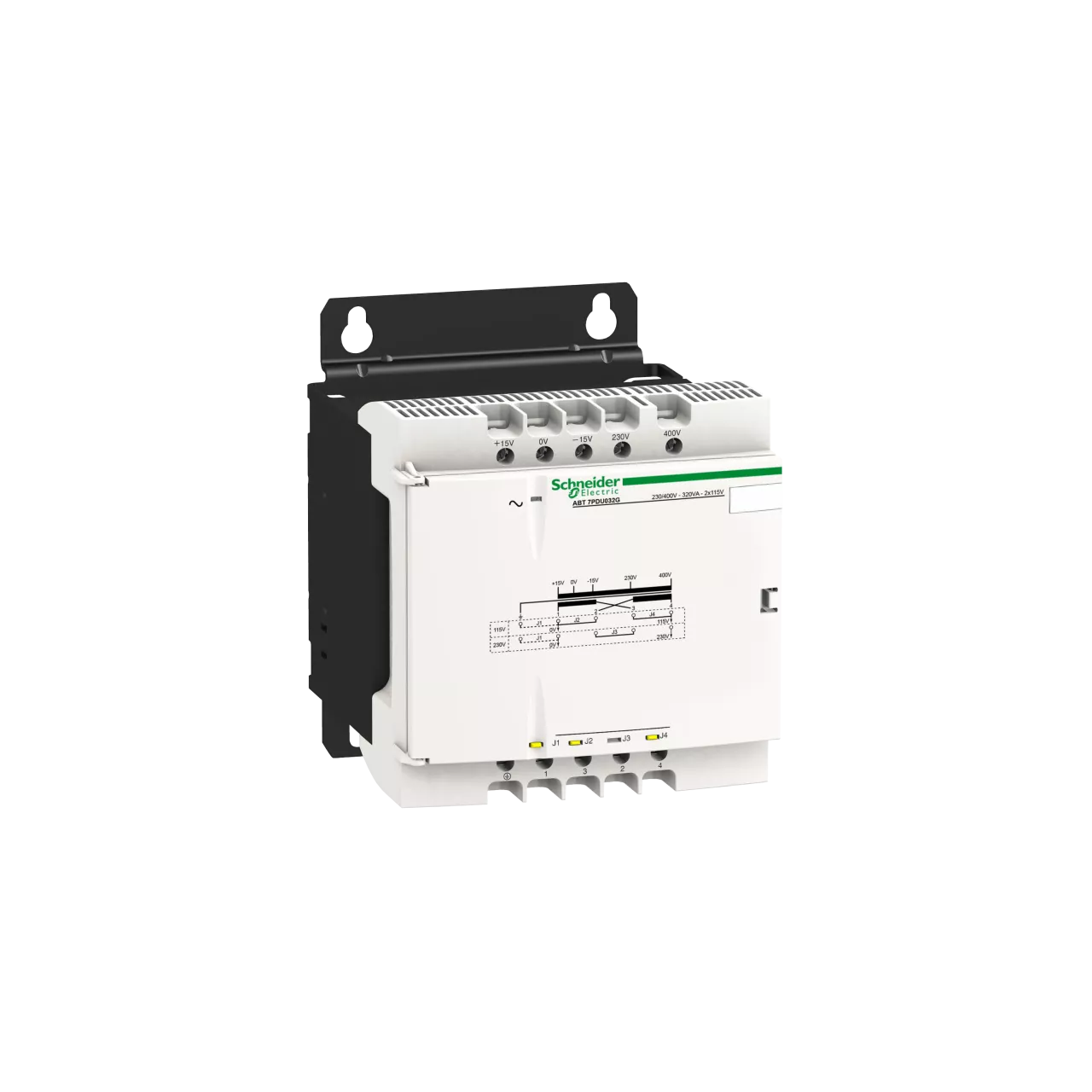

Separacyjny transformator napięcia, Phaseo, 230...400 V, 2 x 115 V, 320 VA ABT7/ABL6
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | ABT7PDU032G |
| GTIN(EAN) | 3389119401234 |
| Price unit | piece |
| Catalog price | 2 087,68 zł (1 697,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 7,58 kg |
| ETIM class: | One-phase control transformer |
| Conductor material: | Other |
| Primary voltage 2: | 385 - 415 V |
| Primary voltage 1: | 215 - 245 V |
| Rated apparent power: | 320 VA |
| Short-circuit-proof: | yes |
| Type of insulation material according to IEC 85: | B |
| Degree of protection (IP): | IP20 |
| Relative short circuit voltage: | 6.8 % |
| Depth: | 153 mm |
| Width: | 123 mm |
| Built as energy saving transformer: | yes |
| Suitable for mounting on PCB: | no |
| Built as isolating transformer: | yes |
| Built as safety transformer: | yes |
| Secondary voltage 1: | 115 - 115 V |
| Secondary voltage 2: | 230 - 230 V |
| Height: | 160 mm |
| Ring core: | no |
| Modular version: | yes |
