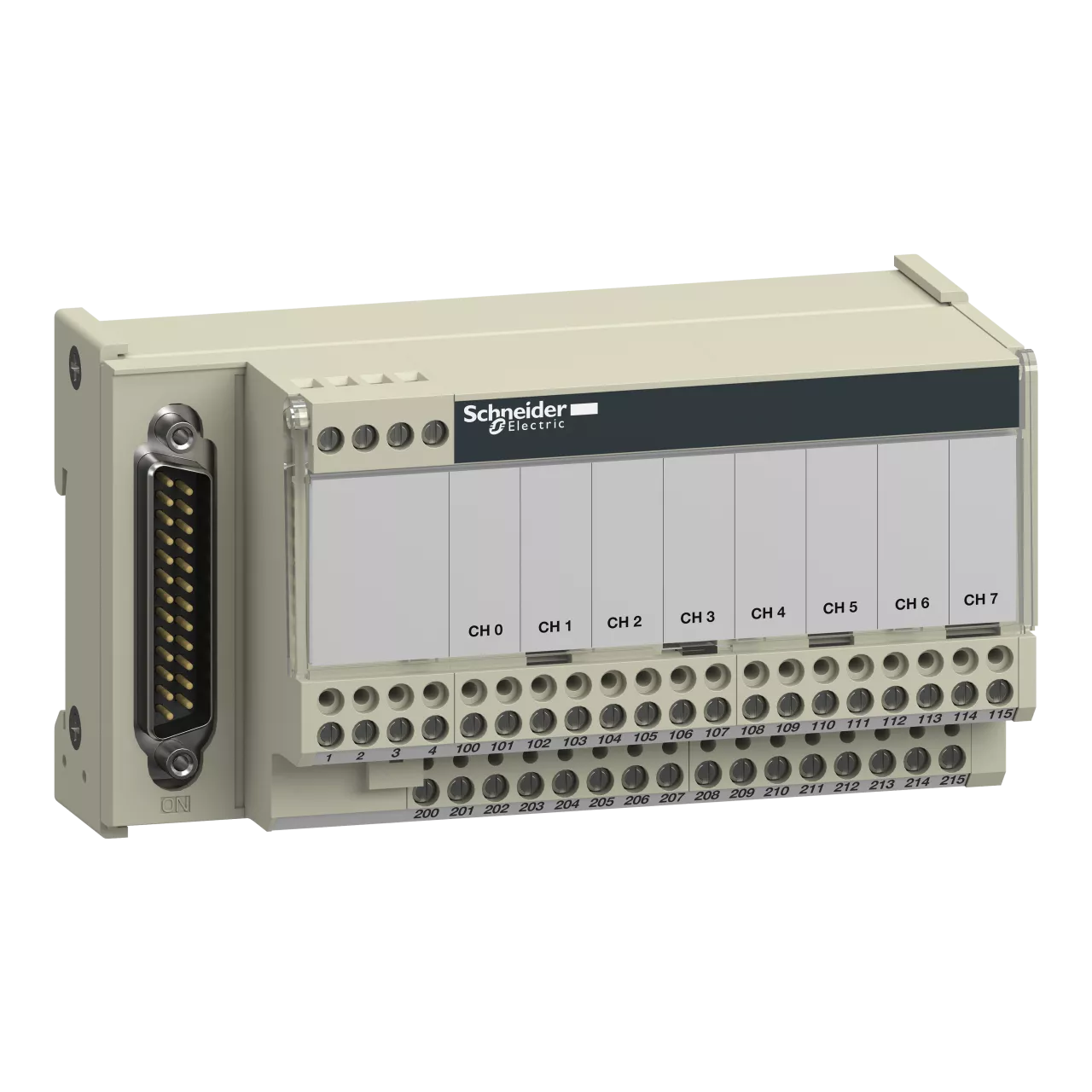

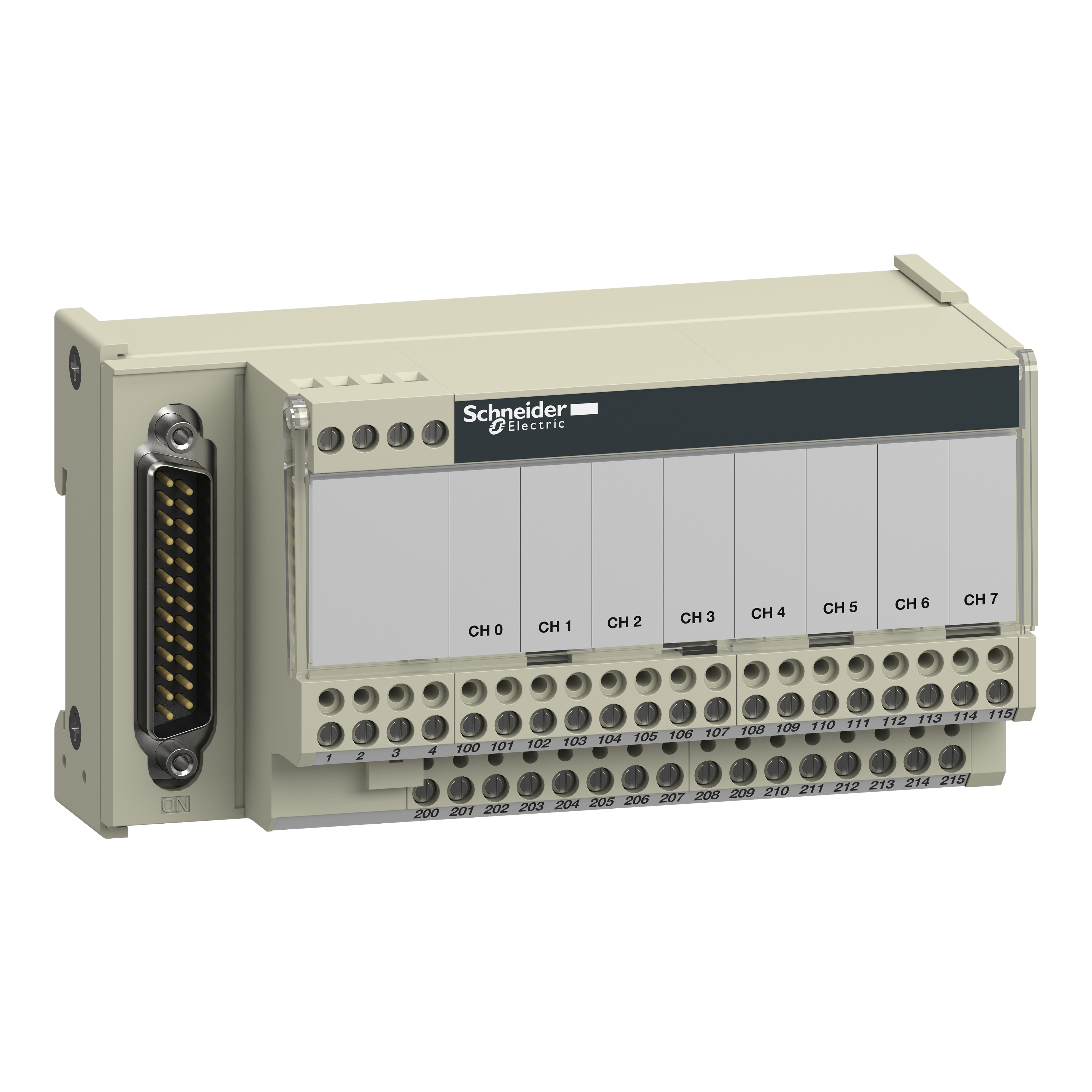

Modicon ABE7, podbaza rozdzielcza, liczniki i kanały analogowe, 8 kanałów
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | ABE7CPA02 |
| GTIN(EAN) | 3389110644463 |
| Price unit | piece |
| Catalog price | 981,54 zł (798,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 301 g |
| ETIM class: | Passive sensor-actuator interface (with cable) |
| With LED indication: | no |
| Number of channels per connector slot: | 8 |
| Housing material: | Plastic, metallized |
| Degree of protection (IP): | IP20 |
| Material of contact surface: | Other |
| Depth: | 67 mm |
| Explosion safety category for dust: | None |
| Width: | 125 mm |
| Number of poles sensor/actuator slots: | 8 |
| Housing colour: | Grey |
| Operating temperature: | 0 - 60 °C |
| Connection for NPN-sensors: | no |
| Number of sensor-/actuator-slots: | 1 |
| Pollution degree: | 2 |
| Material contact body: | Other copper alloys |
| Diameter contact female: | 2.5 mm |
| Explosion safety category for gas: | None |
| With potential separation: | no |
| Thread sleeves sensor/actuator slots: | Other |
| Connectable conductor cross section: | 0.09 - 2.5 mm² |
| Height: | 70 mm |
| Type of branches for sensor-/actuator cables: | Other |
| Cable outer diameter for cable gland: | 0.09 - 2.5 mm |
| Cable length configurable: | yes |
| Material insulation body: | Other |
| Fix cable version suitable for cable guide chain: | no |
| Length of the preassembled cable: | 3 m |
