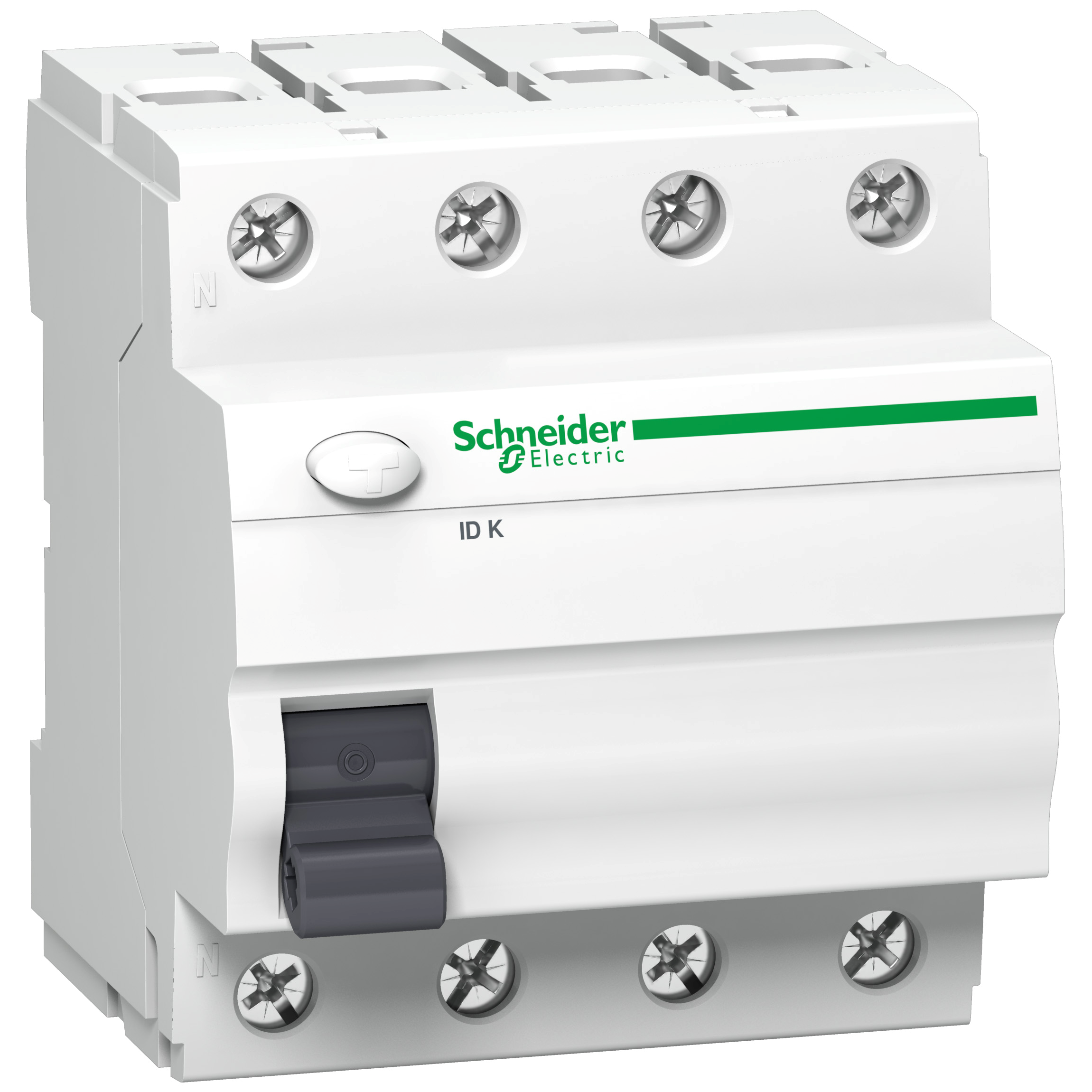

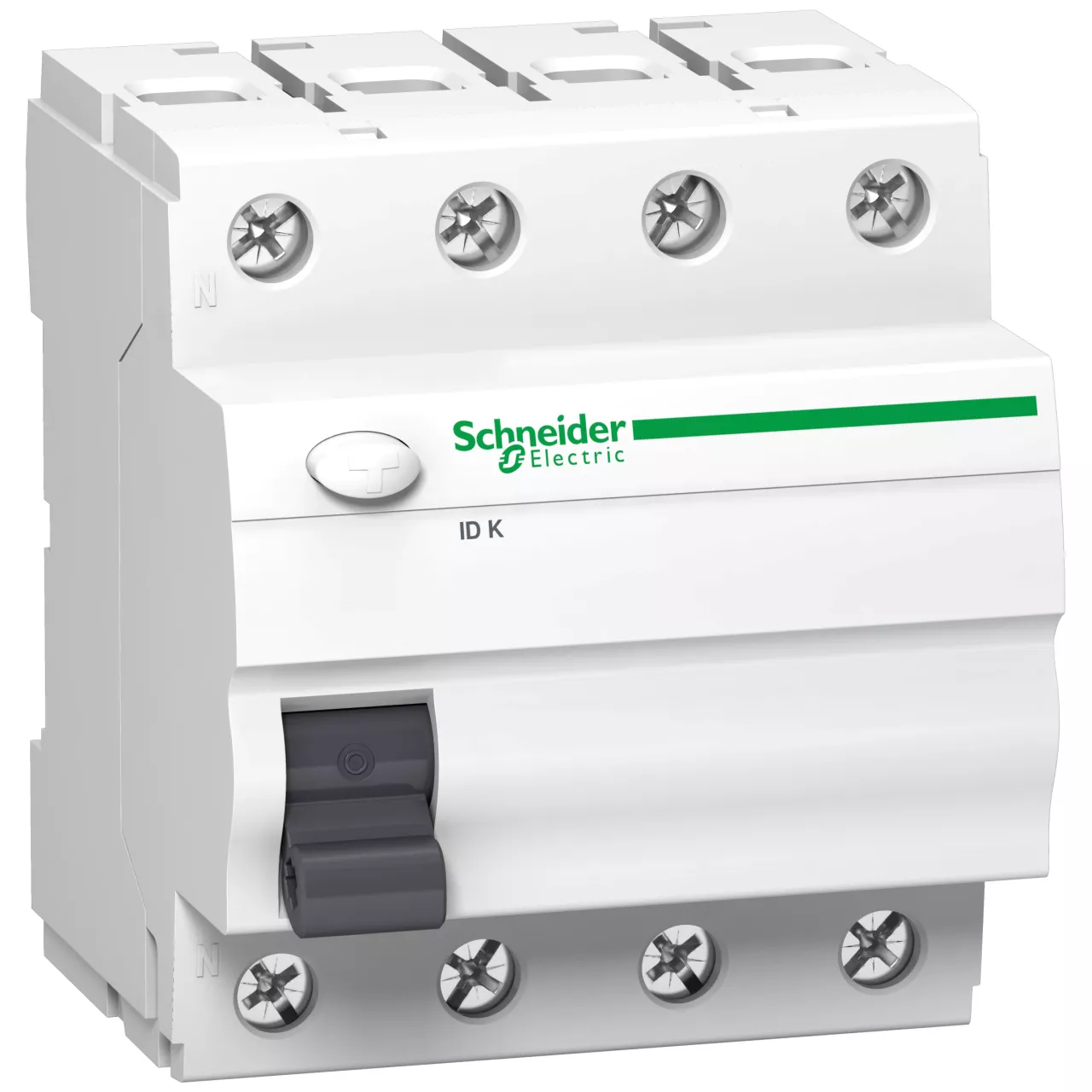

Wyłącznik różnicowoprądowy K60 IDK-40-4-300-AC 40A 4-biegunowy 300mA typ AC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | A9Z06440 |
GTIN(EAN) | 3606480500503 |
Price unit | piece |
Catalog price | 413,28 zł (336,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 15 |
Gross weight: | 344 g |
ETIM class: | Residual current circuit breaker (RCCB) |
Short-time delayed tripping: | no |
Built-in depth: | 44 mm |
Selective protection: | no |
Connectable conductor cross section solid-core: | 1 - 35 mm² |
Explosion-proof: | no |
Leakage current type: | AC |
Additional equipment possible: | yes |
Voltage type: | AC |
Surge current capacity: | 0.25 kA |
Degree of protection (IP): | IP20 |
Number of poles: | 4 |
Rated impulse withstand voltage Uimp: | 4 kV |
Width in number of modular spacings: | 4 |
Rated fault current: | 0.3 A |
Frequency: | 50/60 Hz |
Mounting method: | DIN rail |
Ambient temperature during operating: | -5 - 40 °C |
Rated current: | 40 A |
Rated voltage: | 415 V |
Rated insulation voltage Ui: | 440 V |
Connectable conductor cross section multi-wired: | 1 - 25 mm² |
Pollution degree: | 2 |
With interlocking device: | no |
