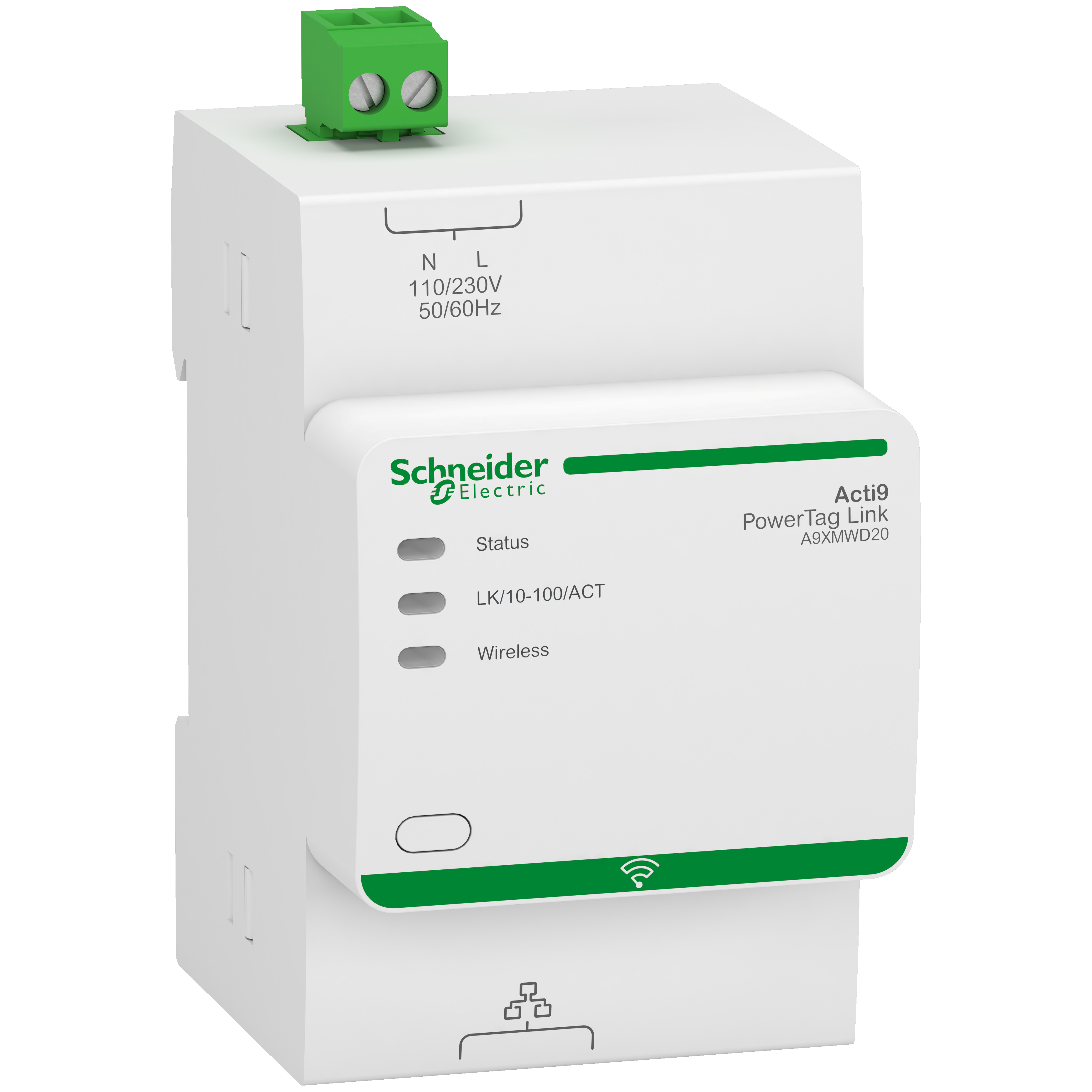

Koncentrator bezprzewodowy Acti9 do Modbus TCP/IP PowerTag Link
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9XMWD20 |
| GTIN(EAN) | 3606489730468 |
| Price unit | piece |
| Catalog price | 2 598,99 zł (2 113,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 179 g |
| ETIM class: | Fieldbus, decentr. periphery - analogue/digital I/O module |
| Suitable for safety functions: | no |
| Explosion safety category for dust: | None |
| Width: | 54 mm |
| Analogue outputs configurable: | no |
| Radio standard GPRS: | no |
| Explosion safety category for gas: | None |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | no |
| Rack-assembly possible: | no |
| Front built-in possible: | yes |
| Depth: | 67.5 mm |
| Height: | 85 mm |
| Number of HW-interfaces wireless: | 1 |
| Number of interfaces PROFINET: | 0 |
| SIL according to IEC 61508: | None |
| Number of digital inputs: | 20 |
| Number of digital outputs: | 1 |
| Number of analogue inputs: | 0 |
| Number of analogue outputs: | 0 |
| Supporting protocol for LON: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard Bluetooth: | no |
| IO link master: | no |
| Performance level according to EN ISO 13849-1: | None |
| Analogue input, current: | no |
| Analogue input, voltage: | no |
| Analogue input, resistor: | no |
| Analogue input, thermocouple: | no |
| Analogue input, resistor temperature: | no |
| Analogue input signal configurable: | no |
| Wall mounting/direct mounting: | no |
| Supporting protocol for KNX: | no |
| Supply voltage AC 60 Hz: | 110 - 230 V |
| Supporting protocol for Data-Highway: | no |
| Supply voltage AC 50 Hz: | 110 - 230 V |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for DeviceNet: | no |
| Rail mounting possible: | yes |
| Supporting protocol for TCP/IP: | yes |
| Supporting protocol for PROFIBUS: | no |
| Appendant operation agent (Ex ib): | no |
| Degree of protection (IP): | IP20 |
| Supporting protocol for ASI: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | no |
| Appendant operation agent (Ex ia): | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Voltage type (supply voltage): | AC |
| Supporting protocol for EtherNet/IP: | no |
| Type of electric connection: | Screw connection |
| Supporting protocol for SafetyBUS p: | no |
| Type of digital output: | Other |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Fieldbus connection over separate bus coupler possible: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces other: | 0 |
| Number of HW-interfaces parallel: | 0 |
| System accessory: | no |
| Supporting protocol for SERCOS: | no |
| With optical interface: | no |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces industrial Ethernet: | 1 |
