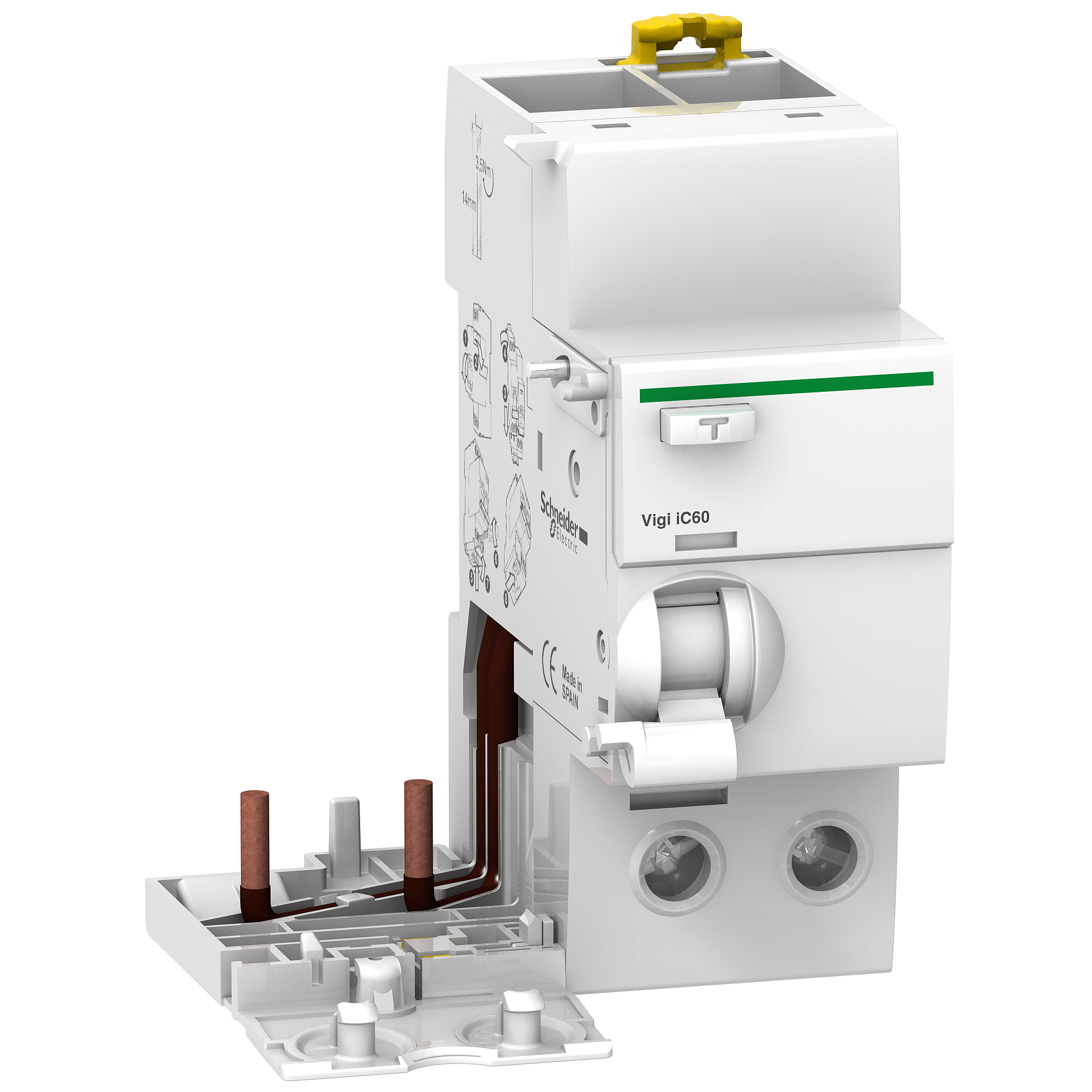

Blok różnicowoprądowy VigiiC60-40-2-30-AC 40A 2-biegunowy 30mA AC inter 110V
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | A9V01240 |
GTIN(EAN) | 3606480087684 |
Price unit | piece |
Catalog price | 1 071,33 zł (871,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 176 g |
ETIM class: | Residual current circuit breaker (RCCB) module |
Connectable conductor cross section solid-core: | 1 - 35 mm² |
Frequency: | 50/60 Hz |
Leakage current type: | AC |
Nominal current: | 40 A |
Surge current capacity: | 0.25 kA |
Rated fault current: | 0.03 - 0.03 A |
Ambient temperature during operating: | -5 - 60 °C |
Anti-nuisance tripping version: | no |
Degree of protection (IP): | IP20 |
Number of poles: | 2 |
Rated impulse withstand voltage Uimp: | 6 kV |
Rated fault current adjustable: | no |
Delay adjustable: | no |
Max. delay time: | 0 ms |
Rated insulation voltage Ui: | 500 V |
Nominal voltage: | 110 - 130 V |
Connectable conductor cross section multi-wired: | 1 - 25 mm² |
Pollution degree: | 3 |
With interlocking device: | no |
