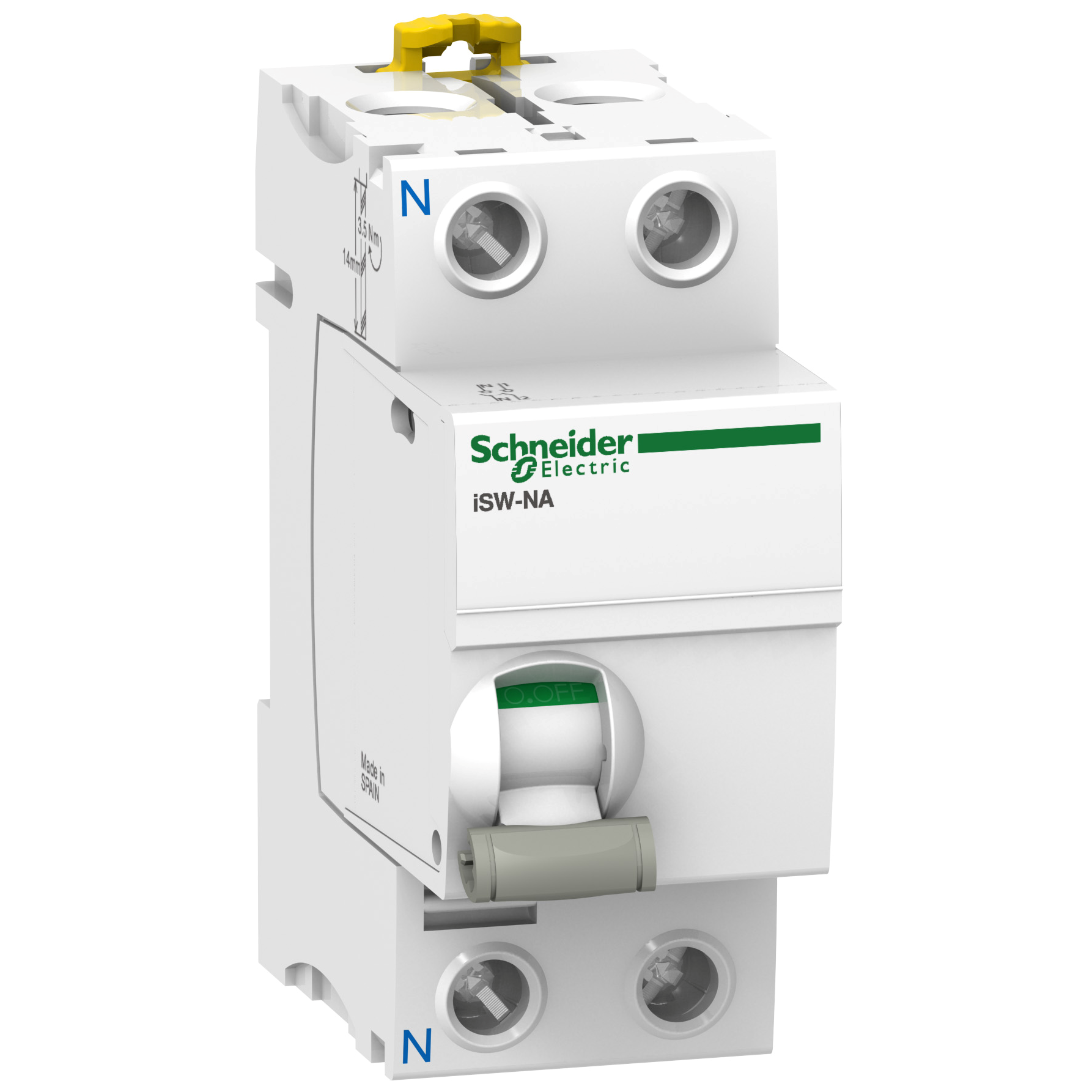

Rozłącznik Acti9 z możliwością dobudowy wyzwalacza iSW-NA-100-1N 100A 1N-biegunowy
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9S70690 |
| GTIN(EAN) | 3606480098932 |
| Price unit | piece |
| Catalog price | 477,24 zł (388,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozłącznik z możliwością dobudowy wyzwalacza iSW-NA-100-1N 100A 1N-biegunowy ,o numerze A9S70690. Wyposażone we wskaźnik Visi-Safe potwierdzajacy otwarcie styków rozłącznika. Możliwość wyposażenia w napęd drzwiowy, styk pomocniczy czy podstawę wtykową.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 15 |
| Gross weight: | 184 g |
| ETIM class: | Main switch for distribution board |
| Imprint/indication: | None |
| Built-in depth: | 74.5 mm |
| Rated switching capacity: | 5 kA |
| Voltage type: | AC |
| Short-circuit breaking capacity (Icw): | 1.5 kA |
| Switching function: | Off switch |
| Colour calotte: | White |
| Degree of protection (IP): | IP20 |
| Number of poles: | 2 |
| Rated current: | 100 A |
| Forced segregation according to DIN VDE 0113: | yes |
| Rated voltage: | 240 V |
| Min. rated voltage: | 230 V |
| With signal lamp: | no |
| Width in number of modular spacings: | 2 |
| Number of contacts as change-over contact: | 0 |
| Number of contacts as normally open contact: | 2 |
| Number of contacts as normally closed contact: | 0 |
