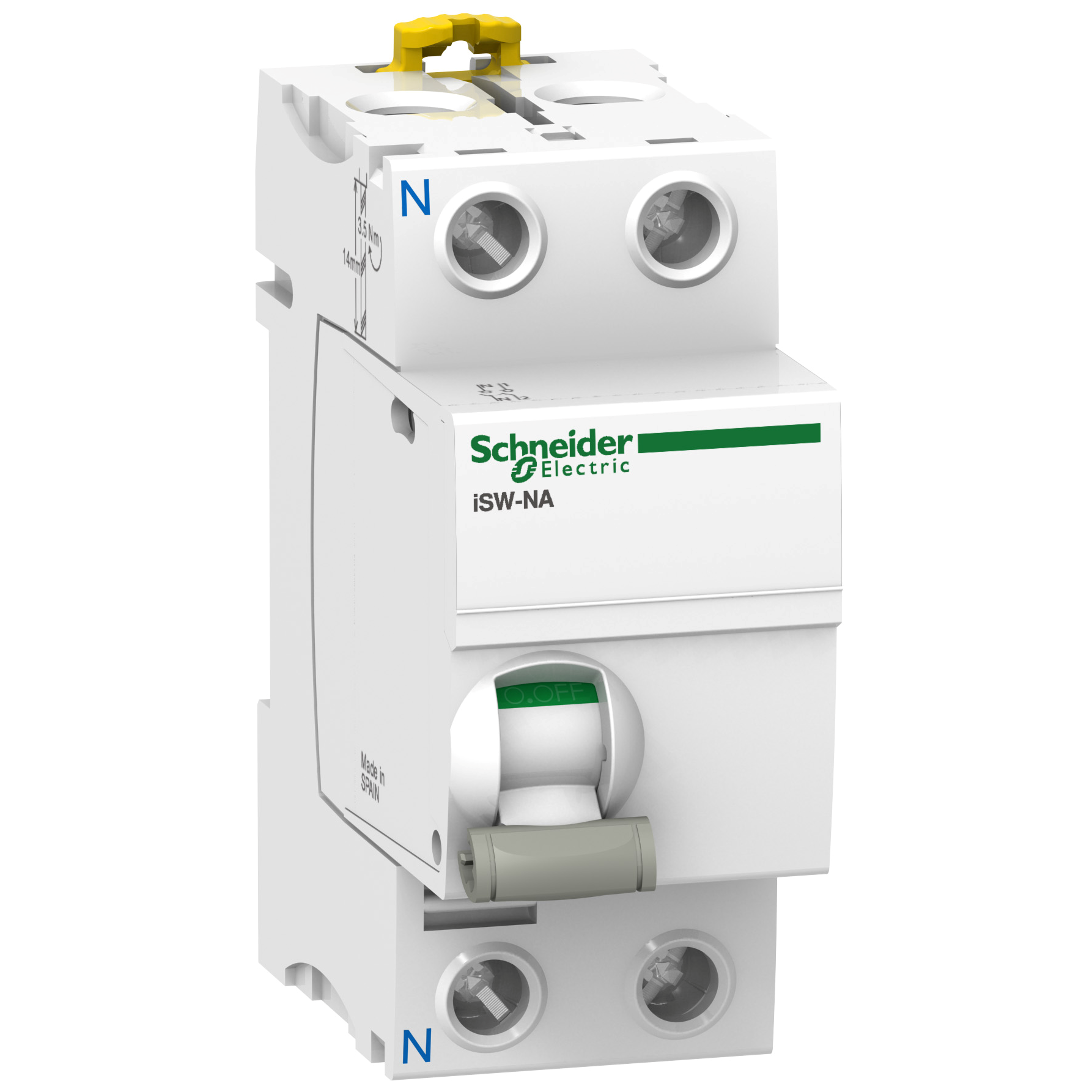

Rozłącznik Acti9 z możliwością dobudowy wyzwalacza iSW-NA-80-1N 80A 1N-biegunowy
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | A9S70680 |
GTIN(EAN) | 3606480098925 |
Price unit | piece |
Catalog price | 451,41 zł (367,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozłącznik z możliwością dobudowy wyzwalacza iSW-NA-80-1N 80A 1N-biegunowy ,o numerze A9S70680. Wyposażone we wskaźnik Visi-Safe potwierdzajacy otwarcie styków rozłącznika. Możliwość wyposażenia w napęd drzwiowy, styk pomocniczy czy podstawę wtykową.
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 15 |
Gross weight: | 184 g |
ETIM class: | Main switch for distribution board |
Imprint/indication: | None |
Built-in depth: | 74.5 mm |
Rated switching capacity: | 5 kA |
Voltage type: | AC |
Short-circuit breaking capacity (Icw): | 1.2 kA |
Switching function: | Off switch |
Colour calotte: | White |
Degree of protection (IP): | IP20 |
Number of poles: | 2 |
Rated current: | 80 A |
Forced segregation according to DIN VDE 0113: | yes |
Rated voltage: | 240 V |
Min. rated voltage: | 230 V |
With signal lamp: | no |
Width in number of modular spacings: | 2 |
Number of contacts as change-over contact: | 0 |
Number of contacts as normally open contact: | 2 |
Number of contacts as normally closed contact: | 0 |
