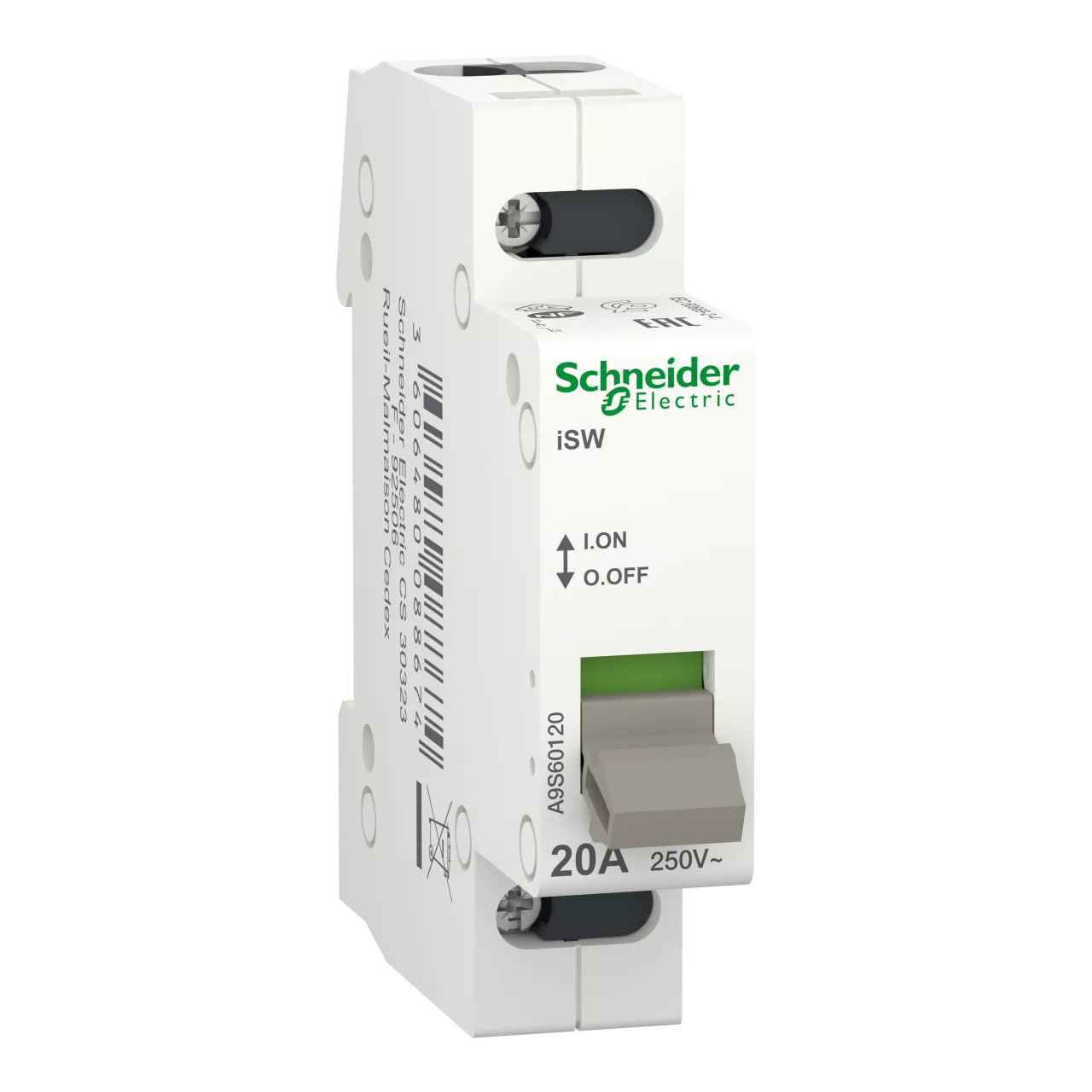

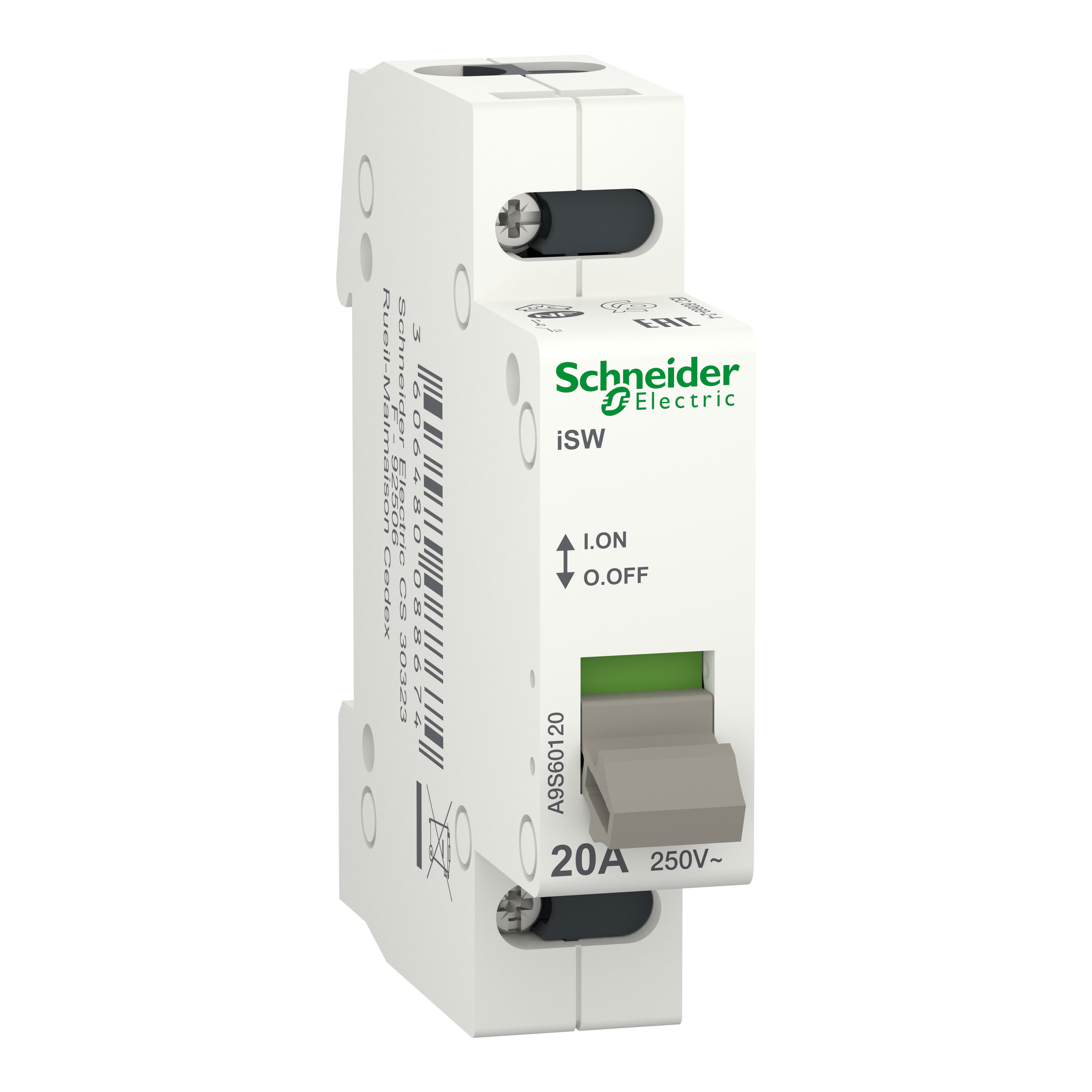

Rozłącznik Acti9 iSW-20-1 20A 1-biegunowy
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9S60120 |
| GTIN(EAN) | 3606480088674 |
| Price unit | piece |
| Catalog price | 70,11 zł (57,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ten Acti9 iSW to modułowy i niezawodny rozłącznik. jest to 1P, prąd znamionowy wynosi 20 A, a napięcie robocze jest 250VAC. Wytrzymałość elektryczna wzrasta do 30000 cykli, a wytrzymałość mechaniczna do 300000 cykli. Temperatura robocza wynosi od -20°C do +50°C. Temperatura przechowywania wynosi od -40°C do +70°C. Stopień ochrony w obudowie wynosi IP20 i IP40. Można go zamontować na szynie DIN. Szerokość w boisku 9 mm wynosi 2. Wymiary: (sz.) 18 mm x (wys.) 77 mm x (gł.) 70 mm. Rozłącznik służy do sterowania. Ten produkt jest zgodny z normą EN/IEC 60669-2-4.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 2 |
| Gross weight: | 52 g |
| ETIM class: | Main switch for distribution board |
| Imprint/indication: | Other |
| Built-in depth: | 75.5 mm |
| Voltage type: | AC |
| Switching function: | Off switch |
| Colour calotte: | Grey |
| Degree of protection (IP): | IP20 |
| Number of poles: | 1 |
| Rated current: | 20 A |
| Forced segregation according to DIN VDE 0113: | yes |
| Rated voltage: | 250 V |
| Min. rated voltage: | 250 V |
| With signal lamp: | no |
| Width in number of modular spacings: | 1 |
| Number of contacts as change-over contact: | 0 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as normally closed contact: | 0 |
