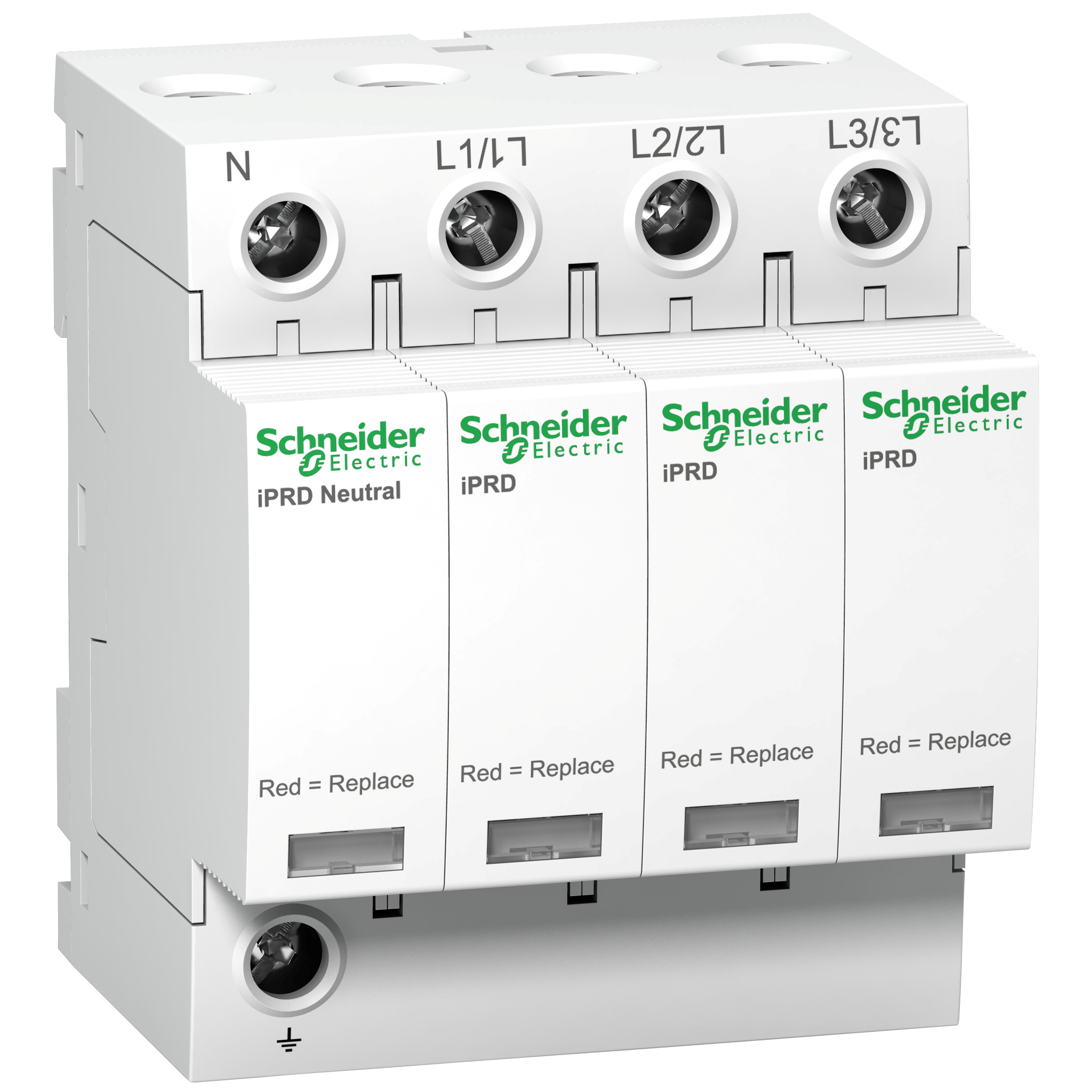

Ogranicznik przepięć Acti9 iPRD40r-T2-3N 3+1-biegunowy Typ2 40 kA ze stykiem
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9L40601 |
| GTIN(EAN) | 3606480506345 |
| Price unit | piece |
| Catalog price | 1 180,80 zł (960,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 51 |
| Gross weight: | 452 g |
| ETIM class: | Surge protection device for power supply systems |
| Leakage-current free: | no |
| Voltage protection level: | 1.4 kV |
| Integrated short-circuit protection: | no |
| With remote signalling contact: | yes |
| Construction size: | 4 modular spacing |
| Nominal voltage AC: | 400 V |
| Degree of protection (IP): | IP20 |
| Max. discharge surge current (8/20): | 40 kA |
| Short-circuit breaking capacity (Isccr): | 50 kA |
| Nominal discharge surge current (8/20): | 15 kA |
| Number of conductors (without earthing): | 4 |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-S: | yes |
| System configuration TT: | yes |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| System configuration other: | no |
| System configuration TN-C-S: | no |
| Signalling at the device: | Optical |
| Max. overcurrent protection device, parallel connection (fuse): | 63 A |
| Max. overcurrent protection device, series connection (fuse): | 80 A |
| Max. conductor cross section solid (solid, stranded): | 25 mm² |
| Max. conductor cross section flexible (fine-strand): | 16 mm² |
| System configuration DC: | no |
| Integrated backup fuse: | no |
| Voltage protection level L-N: | 1.4 kV |
| Voltage protection level N-PE: | 1.4 kV |
| Category type 2: | yes |
| Max. continuous voltage AC: | 350 V |
