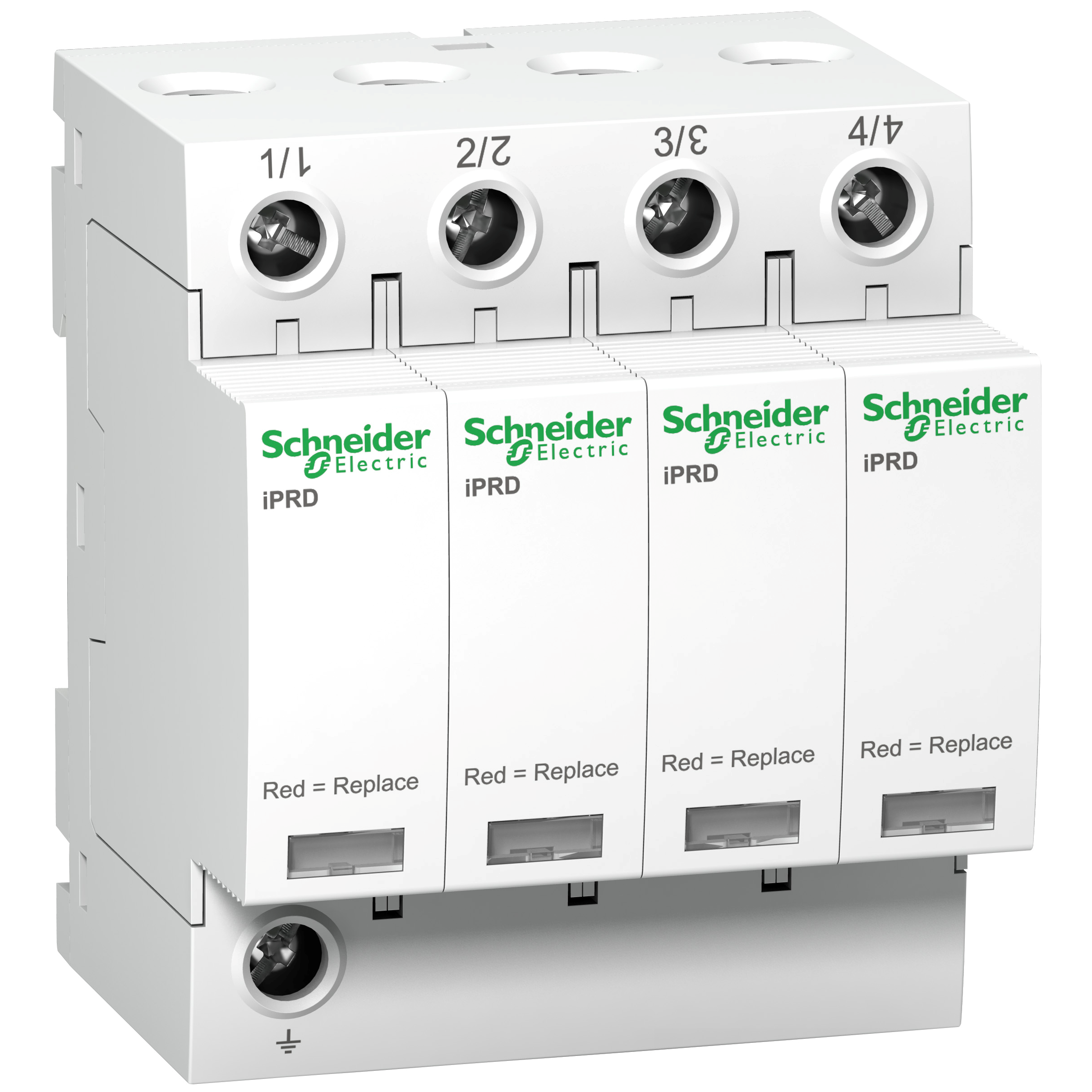

Ogranicznik przepięć Acti9 iPRD40-T2-4 4-biegunowy Typ2 40 kA
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | A9L40400 |
GTIN(EAN) | 3606480506376 |
Price unit | piece |
Catalog price | 1 158,66 zł (942,00 zł + 23% VAT) |
Sale price | from 290,74 zł / szt. (236,37 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 50 |
Gross weight: | 447 g |
ETIM class: | Surge protection device for power supply systems |
Leakage-current free: | no |
Voltage protection level: | 1.6 kV |
Integrated short-circuit protection: | no |
With remote signalling contact: | no |
Construction size: | 4 modular spacing |
Nominal voltage AC: | 350 V |
Degree of protection (IP): | IP20 |
Max. discharge surge current (8/20): | 40 kA |
Short-circuit breaking capacity (Isccr): | 50 kA |
Nominal discharge surge current (8/20): | 15 kA |
Number of conductors (without earthing): | 4 |
System configuration IT: | no |
System configuration TN: | no |
System configuration TN-C: | yes |
System configuration TN-S: | no |
System configuration TT: | no |
Mounting method: | DIN rail (top hat rail) 35 mm |
System configuration other: | no |
System configuration TN-C-S: | no |
Signalling at the device: | Optical |
Max. overcurrent protection device, parallel connection (fuse): | 63 A |
Max. overcurrent protection device, series connection (fuse): | 80 A |
Max. conductor cross section solid (solid, stranded): | 25 mm² |
Max. conductor cross section flexible (fine-strand): | 16 mm² |
System configuration DC: | no |
Integrated backup fuse: | no |
Voltage protection level N-PE: | 1.4 kV |
Category type 2: | yes |
Max. continuous voltage AC: | 350 V |
