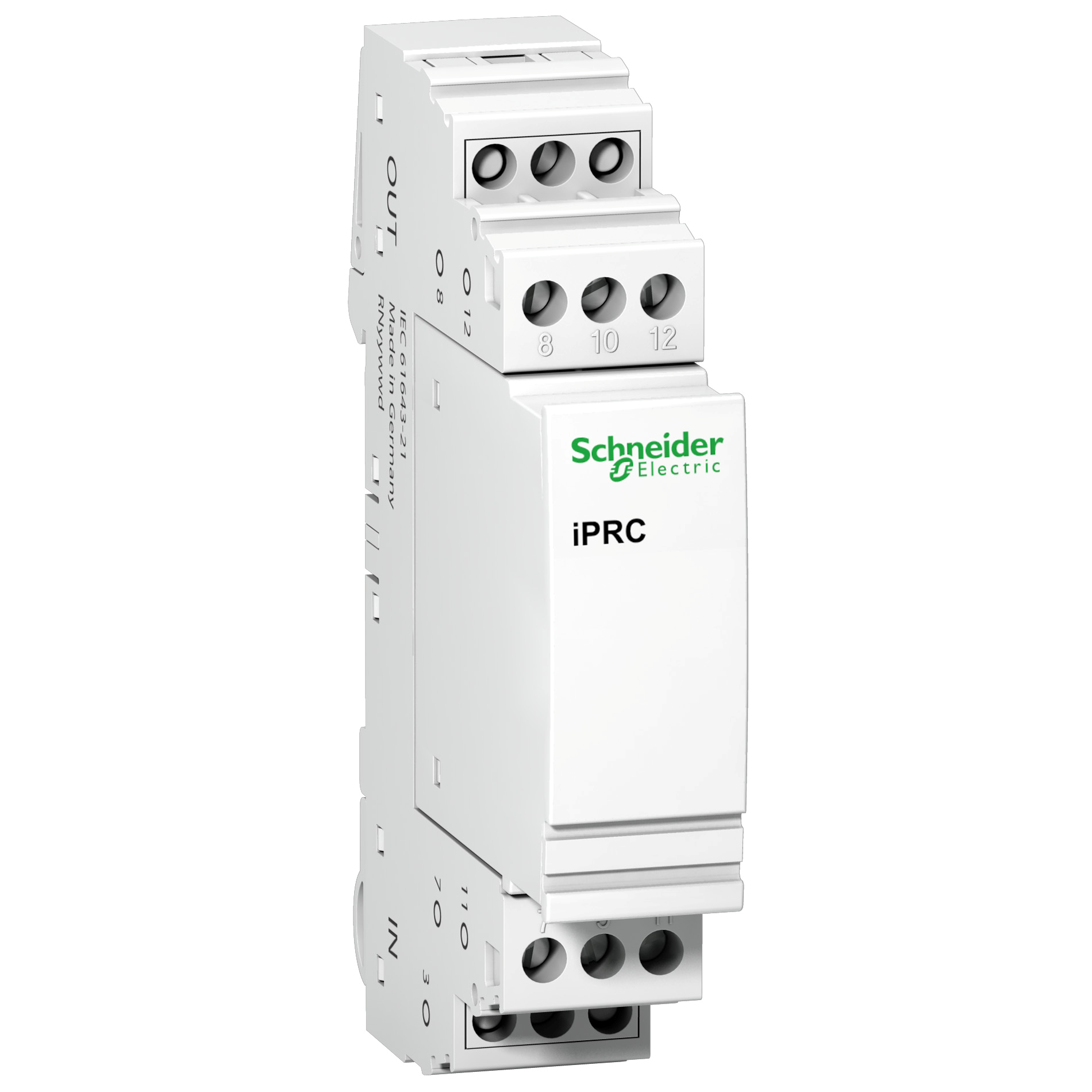

Ogranicznik przepięć Acti9 iPRC do linii telefonicznej
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9L16337 |
| GTIN(EAN) | 3606480383519 |
| Price unit | piece |
| Catalog price | 970,47 zł (789,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 37 |
| Gross weight: | 69 g |
| ETIM class: | Surge protection device for data networks/MCR-technology |
| Assembly width: | 18 mm |
| Earthing via: | Separate conductor |
| Signal disconnection: | yes |
| Nominal load current: | 0.45 A |
| Voltage protection level core/signal ground: | 200 V |
| Connection 1: | Screw terminal |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Pro-active thermo-control: | yes |
| With remote signalling contact: | no |
| Signalling at the device: | None |
| Degree of protection (IP): | IP20 |
| Voltage protection level signal ground/protective ground: | 160 V |
| Voltage protection level core/earth: | 200 V |
| Limiting frequency: | 0.05 MHz |
| Voltage protection level core/core: | 160 V |
| Max. continuous voltage DC: | 180 V |
| Nominal voltage AC: | 130 - 130 V |
| Nominal discharge surge current (8/20): | 10 kA |
| Number of conductors (without earthing): | 2 |
| Explosion-tested version: | no |
| Max. continuous voltage AC: | 130 V |
