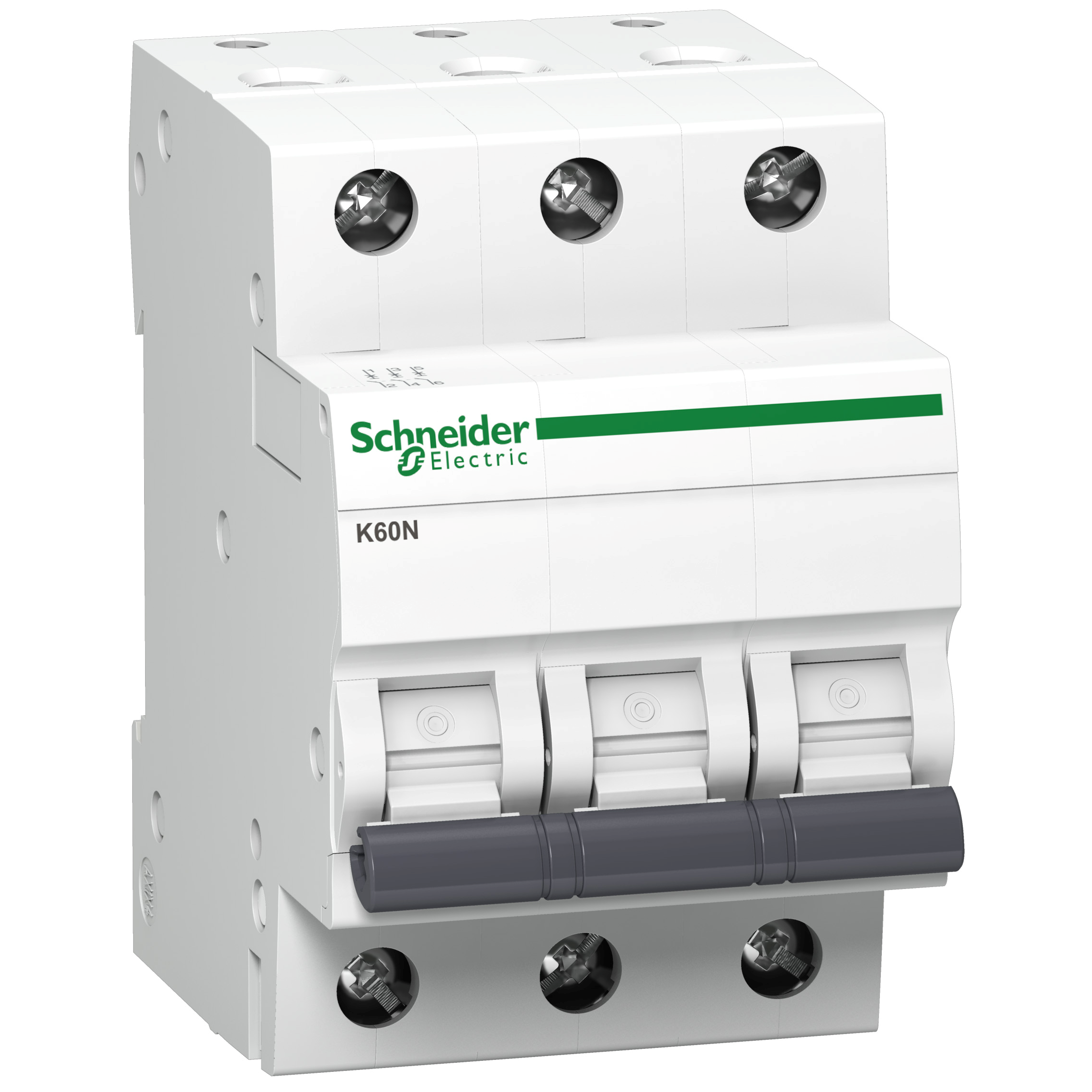

Wyłącznik nadprądowy K60 K60N-C50-3 B 50A 3-biegunowy
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | A9K02350 |
GTIN(EAN) | 3606481138514 |
Price unit | piece |
Catalog price | 261,99 zł (213,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
K60N-C50-3 ,o numerze A9K02350. Wyłącznik nadprądowy dopasowany do potrzeb budownictwa mieszkaniowego i podobnego. Podwójne zaciski od dołu (szyna + przewód). Karbowane zaciski zwiększające pewność podłączenia. Styk migowy - szybkość zamykania styków nie zależy od szybkości manewrowania dźwignią aparatu.
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 9 |
Gross weight: | 357 g |
ETIM class: | Miniature circuit breaker (MCB) |
Frequency: | 50 - 60 Hz |
Number of poles (total): | 3 |
Built-in depth: | 44.5 mm |
Connectable conductor cross section solid-core: | 1 - 25 mm² |
Explosion-proof: | no |
Voltage type: | AC |
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
Concurrently switching neutral conductor: | no |
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
Degree of protection (IP): | IP20 |
Rated impulse withstand voltage Uimp: | 4 kV |
Release characteristic: | C |
Width in number of modular spacings: | 3 |
Number of protected poles: | 3 |
Flush-mounted installation: | no |
Over voltage category: | 2 |
Rated current: | 50 A |
Rated voltage: | 400 V |
Rated insulation voltage Ui: | 440 V |
Connectable conductor cross section multi-wired: | 1 - 16 mm² |
Pollution degree: | 2 |
Additional equipment possible: | no |
Ambient temperature during operating: | -25 - 70 °C |
Current limiting class: | 3 |
