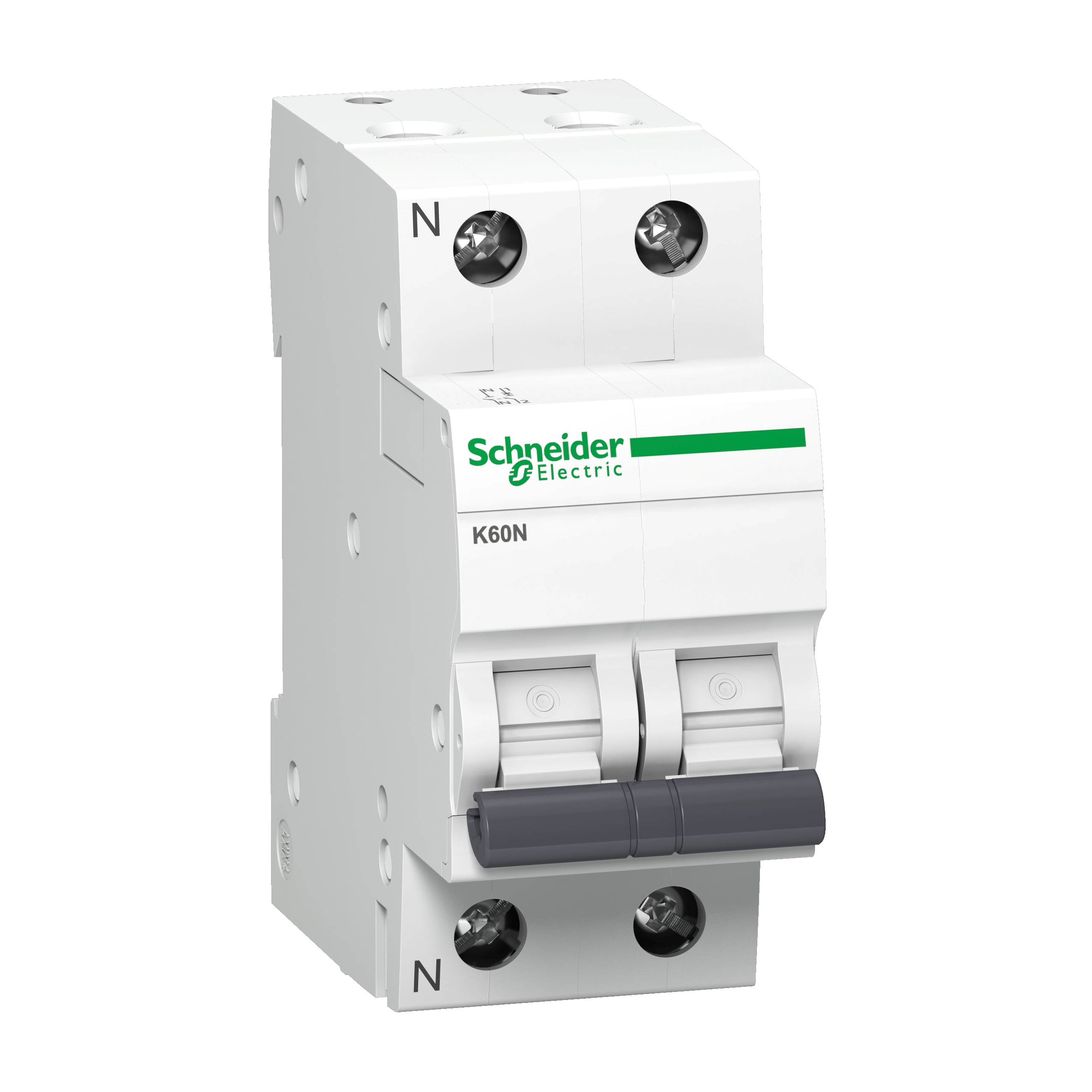

Wyłącznik nadprądowy K60 K60N-B16-1N B 16A 1N-biegunowy
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | A9K01616 |
GTIN(EAN) | 3606480508745 |
Price unit | piece |
Catalog price | 77,49 zł (63,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Wyłącznik nadprądowy K60N-B16-1N B 16A 1N-biegunowy ,o numerze A9K01616. Wyłącznik nadprądowy dopasowany do potrzeb budownictwa mieszkaniowego i podo bnego. Podwójne zaciski od dołu (szyna + przewód). Karbowane zaciski zwiększające pewność podłączenia. Styk migowy - szybkość zamykania styków nie zależy od szybkoś ci manewrowania dźwignią aparatu.
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 3 |
Gross weight: | 209,5 g |
ETIM class: | Miniature circuit breaker (MCB) |
Frequency: | 50 - 60 Hz |
Number of poles (total): | 2 |
Built-in depth: | 44.5 mm |
Connectable conductor cross section solid-core: | 0.5 - 35 mm² |
Explosion-proof: | no |
Additional equipment possible: | no |
Voltage type: | AC |
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
Concurrently switching neutral conductor: | yes |
Degree of protection (IP): | IP20 |
Rated impulse withstand voltage Uimp: | 4 kV |
Release characteristic: | B |
Width in number of modular spacings: | 2 |
Number of protected poles: | 1 |
Flush-mounted installation: | no |
Ambient temperature during operating: | -25 - 70 °C |
Over voltage category: | 2 |
Current limiting class: | 3 |
Rated current: | 16 A |
Rated voltage: | 230 V |
Rated insulation voltage Ui: | 440 V |
Connectable conductor cross section multi-wired: | 0.5 - 25 mm² |
Pollution degree: | 2 |
