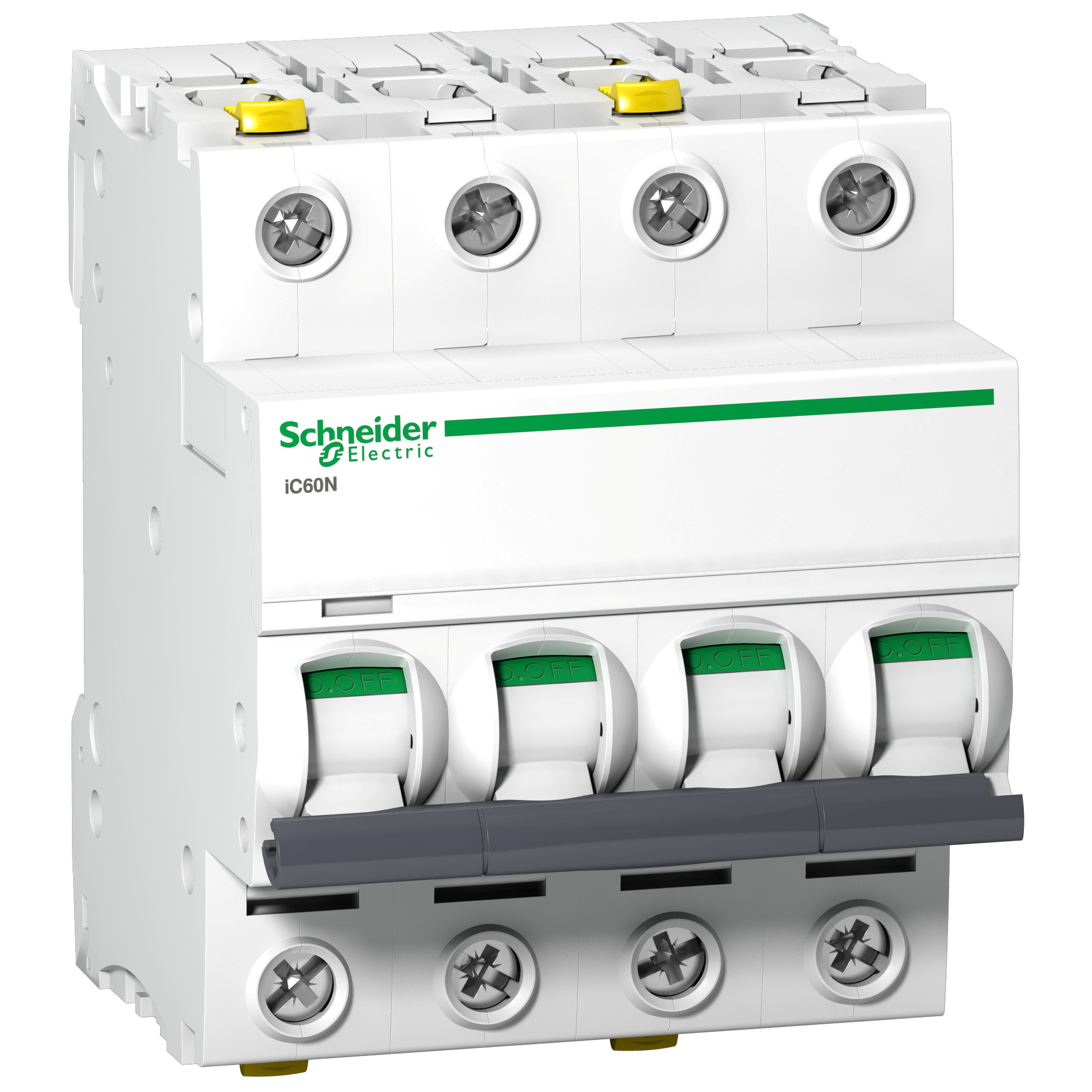

Wyłącznik nadprądowy Acti9 iC60N-B50-4 B 50A 4-biegunowy
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9F03450 |
| GTIN(EAN) | 3606480440076 |
| Price unit | piece |
| Catalog price | 452,64 zł (368,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
This Acti 9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 4P circuit-breaker with 4 protected poles, 50A rated current and B tripping curve. It can be mounted on DIN rail for modular installation. As circuit-breaker, its breaking capacity, according to IEC/EN 60898-1, is 6000A at 400VAC. As circuit-breaker, its breaking capacity, according to IEC/EN 60947-2, is 20kA at 230VAC and 10kA at 400VAC. This miniature circuit breaker protects circuits against short circuit and overload currents. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. It becomes IP40 once in modular enclosure with insulation class II. its fast closing mechanism improves its service life. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 17 |
| Gross weight: | 510 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Frequency: | 50 - 60 Hz |
| Number of poles (total): | 4 |
| Built-in depth: | 44.5 mm |
| Connectable conductor cross section solid-core: | 1 - 35 mm² |
| Explosion-proof: | no |
| Additional equipment possible: | yes |
| Voltage type: | AC/DC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 20 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 10 kA |
| Concurrently switching neutral conductor: | no |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
| Degree of protection (IP): | IP20 |
| Rated impulse withstand voltage Uimp: | 6 kV |
| Release characteristic: | B |
| Width in number of modular spacings: | 4 |
| Number of protected poles: | 4 |
| Flush-mounted installation: | no |
| Ambient temperature during operating: | -35 - 70 °C |
| Over voltage category: | 4 |
| Current limiting class: | 3 |
| Rated current: | 50 A |
| Rated voltage: | 400 V |
| Rated insulation voltage Ui: | 500 V |
| Connectable conductor cross section multi-wired: | 1 - 25 mm² |
| Pollution degree: | 3 |
