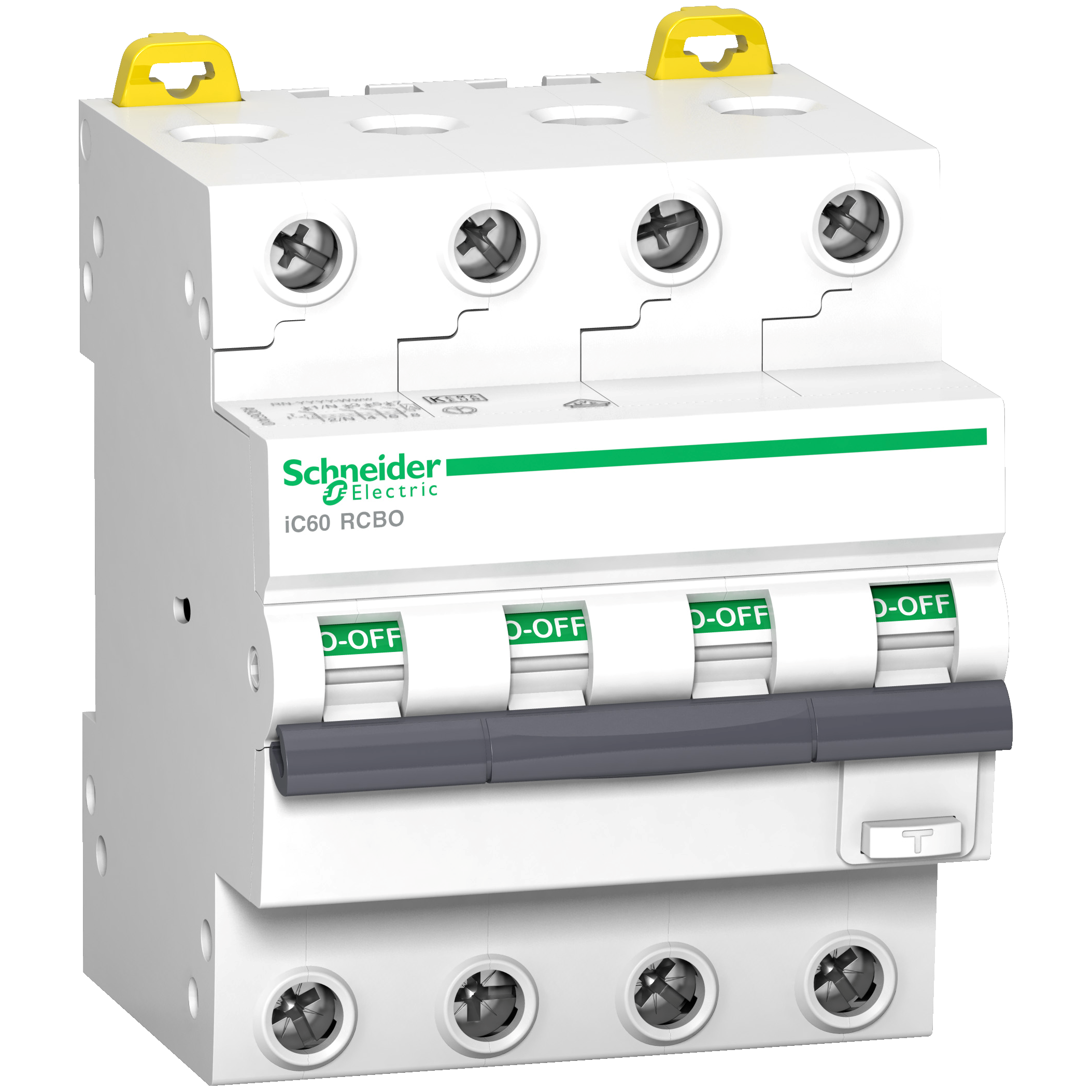

Acti9, iC60 RCBO 4P C16 A 6kA AC 30mA
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9D57416 |
| GTIN(EAN) | 3606481157713 |
| Price unit | piece |
| Catalog price | 2 202,93 zł (1 791,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 435 g |
| ETIM class: | Earth leakage circuit breaker |
| Number of poles (total): | 4 |
| Built-in depth: | 45 mm |
| Connectable conductor cross section solid-core: | 1 - 35 mm² |
| Leakage current type: | AC |
| Voltage type: | AC |
| Surge current capacity: | 0.25 kA |
| Concurrently switching neutral conductor: | yes |
| Degree of protection (IP): | IP20 |
| Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Release characteristic: | C |
| Rated short-circuit breaking capacity according to EN 61009: | 6 kA |
| Width in number of modular spacings: | 4 |
| Number of protected poles: | 4 |
| Rated fault current: | 0.03 A |
| Disconnection characteristic: | Undelayed |
| Frequency: | 50 Hz |
| Flush-mounted installation: | no |
| Ambient temperature during operating: | -25 - 40 °C |
| Anti-nuisance tripping version: | no |
| Rated short-circuit breaking capacity according to IEC 60947-2: | 6 kA |
| Over voltage category: | 3 |
| Current limiting class: | 1 |
| Rated current: | 16 A |
| Rated voltage: | 400 V |
| Rated insulation voltage Ui: | 500 V |
| Connectable conductor cross section multi-wired: | 1 - 25 mm² |
| Pollution degree: | 2 |
| With interlocking device: | no |
