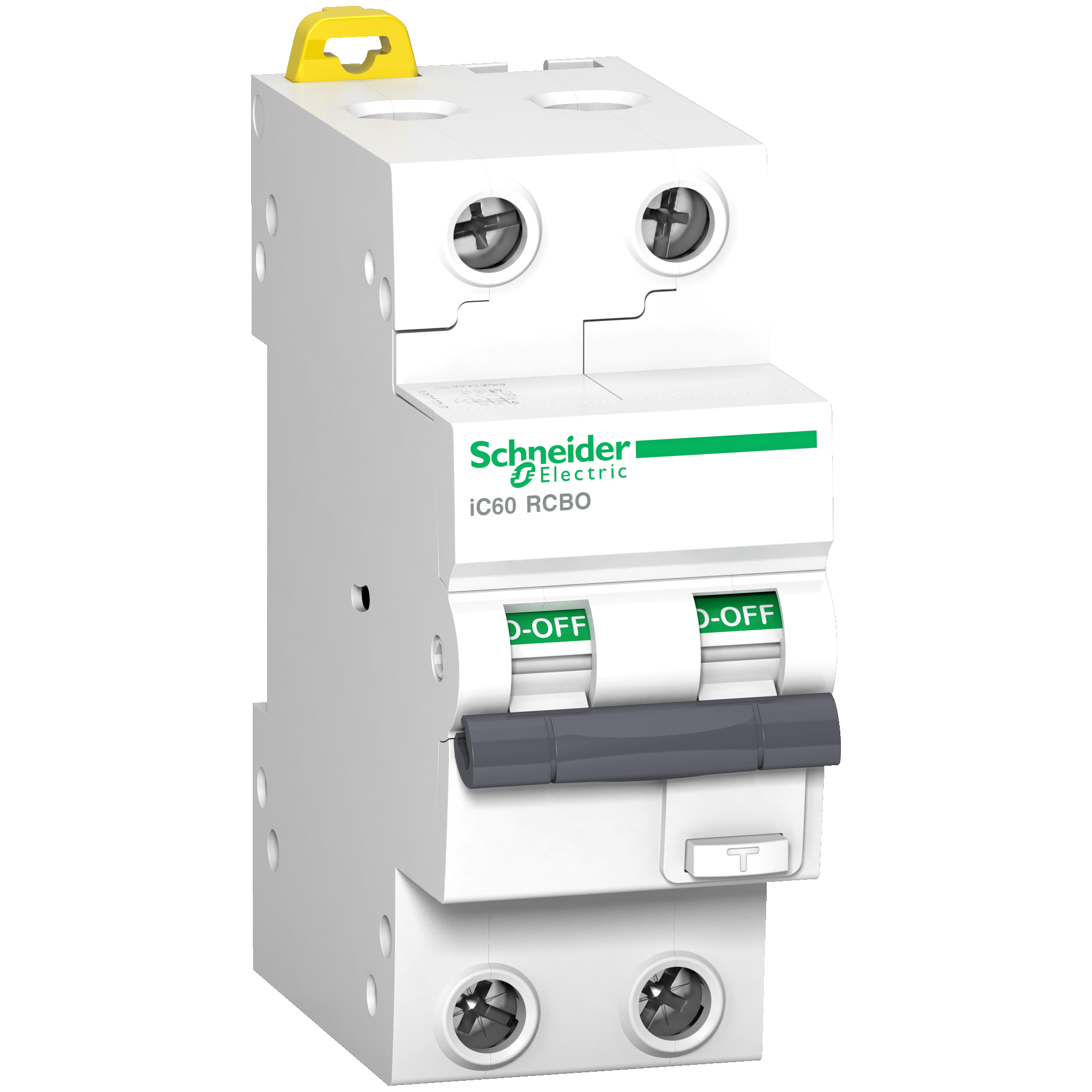

Acti9, IC60RCBO-2-B32-30-A 10kA
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | A9D37232 |
GTIN(EAN) | 3606481157201 |
Price unit | piece |
Catalog price | 1 242,30 zł (1 010,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 235 g |
ETIM class: | Earth leakage circuit breaker |
Number of poles (total): | 2 |
Built-in depth: | 45 mm |
Connectable conductor cross section solid-core: | 1 - 35 mm² |
Leakage current type: | A |
Voltage type: | AC |
Surge current capacity: | 0.25 kA |
Concurrently switching neutral conductor: | yes |
Degree of protection (IP): | IP20 |
Rated short-circuit breaking capacity Icn according to EN 61009-1: | 10 kA |
Rated impulse withstand voltage Uimp: | 4 kV |
Release characteristic: | B |
Rated short-circuit breaking capacity according to EN 61009: | 10 kA |
Width in number of modular spacings: | 2 |
Number of protected poles: | 2 |
Rated fault current: | 0.03 A |
Disconnection characteristic: | Undelayed |
Frequency: | 50 Hz |
Flush-mounted installation: | no |
Ambient temperature during operating: | -25 - 40 °C |
Anti-nuisance tripping version: | no |
Rated short-circuit breaking capacity according to IEC 60947-2: | 15 kA |
Over voltage category: | 3 |
Current limiting class: | 3 |
Rated current: | 32 A |
Rated voltage: | 230 V |
Rated insulation voltage Ui: | 500 V |
Connectable conductor cross section multi-wired: | 1 - 25 mm² |
Pollution degree: | 2 |
With interlocking device: | no |
