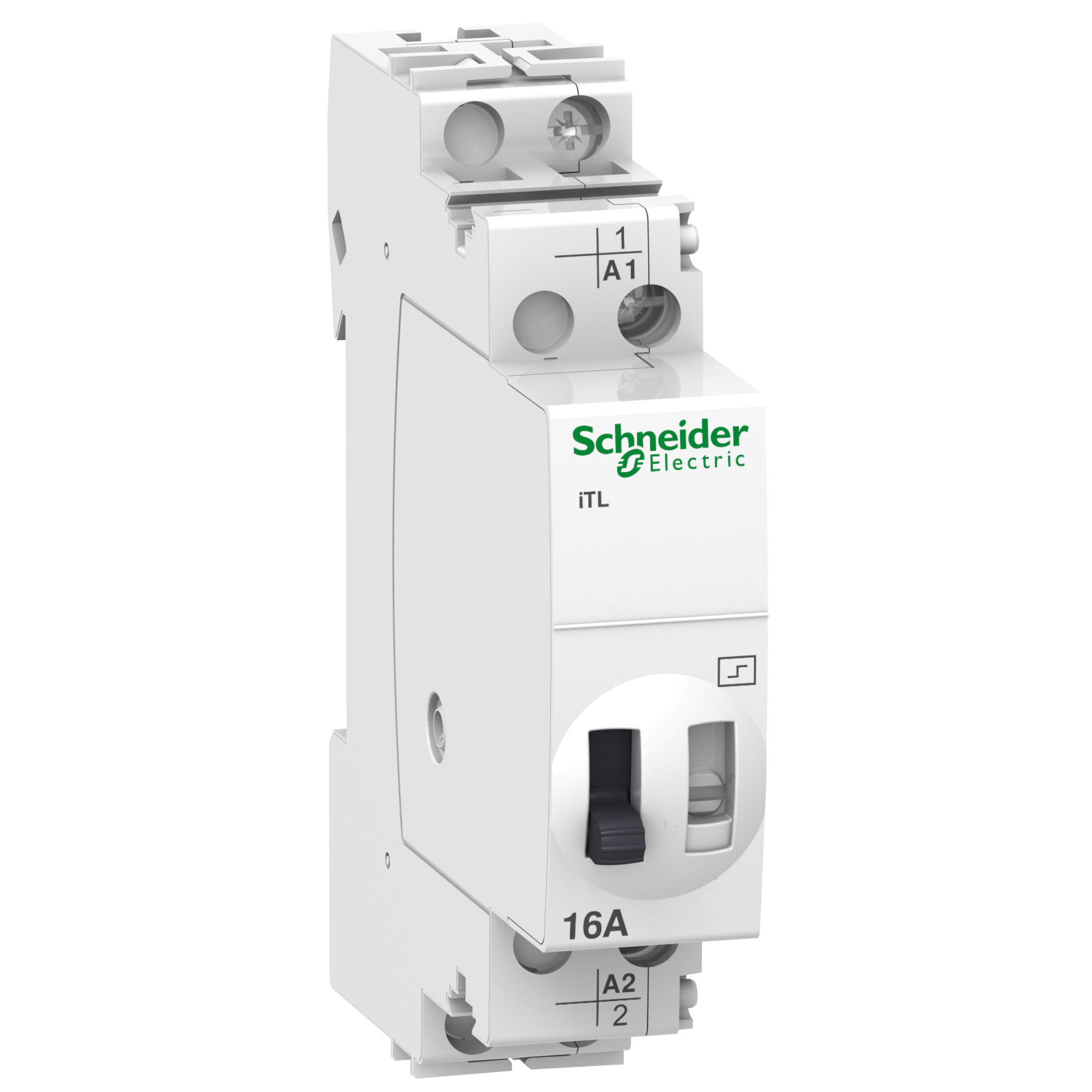

Przekaźnik impulsowy Acti9 iTL-16-10-48 16A 1NO 48VAC/24VDC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | A9C30211 |
GTIN(EAN) | 3606480088964 |
Price unit | piece |
Catalog price | 325,95 zł (265,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik impulsowy iTL-16-10-48 16A 1NO 48VAC/24VDC ,o numerze A9C30211. Możliwość rozbudowy o styki pomocnicze Stopień ochrony to IP20 i IP40 w obudowie. Jest montowany na szynie DIN. Stosowany jest głównie w aplikacjach sterowania oświetleniem. Ten produkt jest zgodny z normami IEC/EN 60669-1, IEC/EN 60669-2-2.
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 9 |
Gross weight: | 102 g |
ETIM class: | Latching relay |
Type of control voltage 1: | AC |
Control voltage 2: | 24 - 24 V |
Frequency control voltage 1: | 50 - 60 Hz |
Suitable for manual operation: | yes |
Type of control voltage 2: | DC |
Built-in depth: | 43.5 mm |
Max. switching current (cos phi = 0.6): | 16 A |
Mounting method: | DIN rail |
Supply voltage: | 24 - 250 V |
Rated switch current: | 16 A |
Max. load fluorescent lamp: | 1300 VA |
Function: | Mechanical switch |
Max. load fluorescent lamp (Duo circuit): | 2000 VA |
Voltage type (supply voltage): | AC |
Width in number of modular spacings: | 1 |
Max. load fluorescent lamp (parallel compensated): | 900 VA |
Control voltage 1: | 48 - 48 V |
Max. incandescent lamp load: | 1600 W |
Number of contacts as change-over contact: | 0 |
Number of contacts as normally open contact: | 1 |
Number of contacts as normally closed contact: | 0 |
