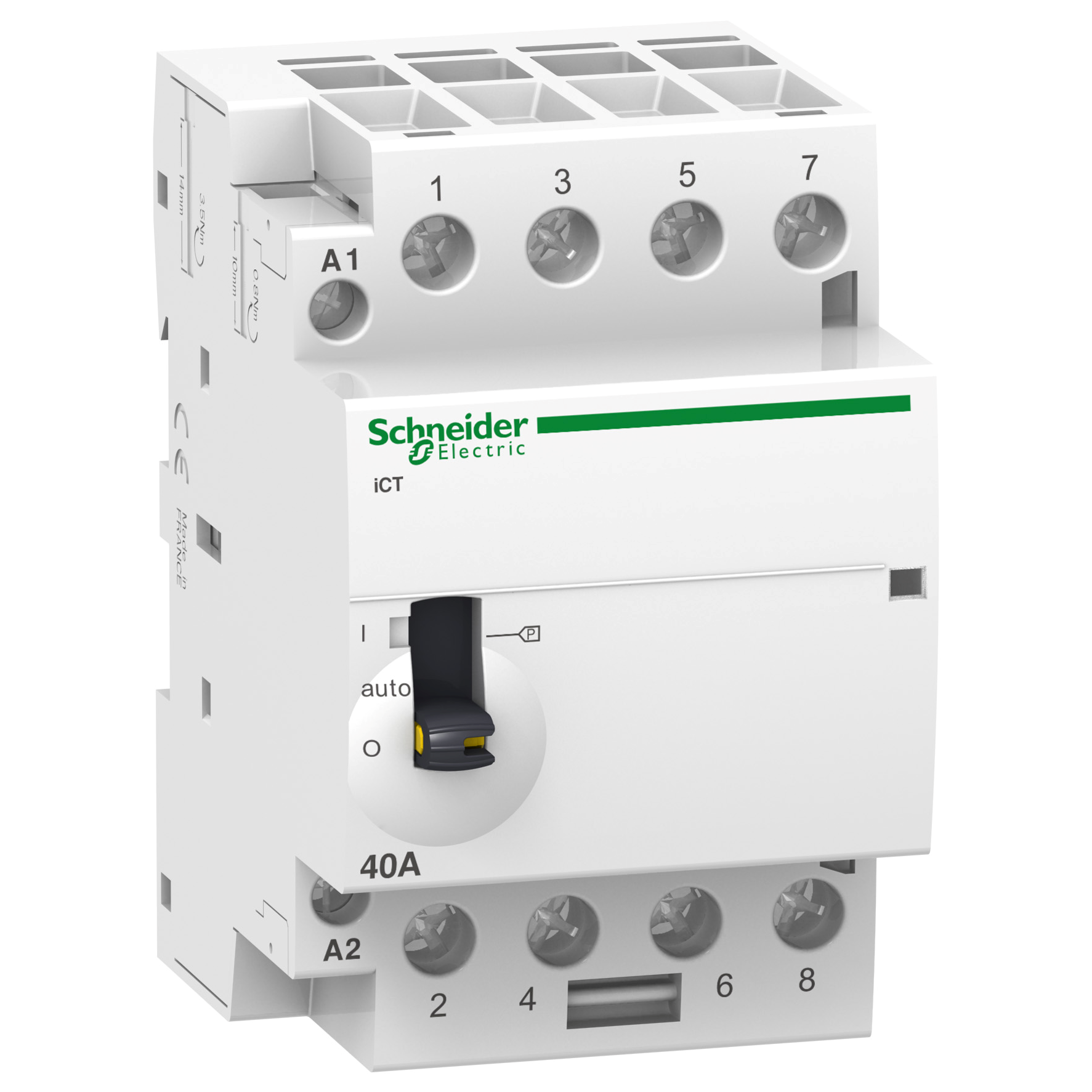

Stycznik modu?owy Acti9 iCT50r40-40-24 40A 4NO 50/60Hz 24 VAC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9C21144 |
| GTIN(EAN) | 3606480375262 |
| Price unit | piece |
| Catalog price | 975,39 zł (793,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik modu?owy iCT50r40-40-24 40A 4NO 50/60Hz 24 VAC ,o numerze A9C21144. Optyczny wska?nik stanu styków wyj?ciowych, mo?liwo?? rozbudowy o styki pomocnicze Pr?d znamionowy wynosi 40A Wytrzyma?o?? elektryczna si?ga do 100000 cykli dla AC-7A lub AC-1, 30000 cykli dla AC-7C, AC-3, AC-5A lub AC-5B. Maksymalna liczba operacji prze??czania to 6 na minut?. Stopie? ochrony to IP20 i IP40 w obudowie. Jest montowany na szynie DIN. To urz?dzenie mo?e by? u?ywane do zdalnego prze??czania obci??e? o?wietleniowych, ma?ych silników (wentylatory, miksery) lub aplikacji systemów HVAC. Jest kompatybilny ze wszystkimi pomocniczymi urz?dzeniami steruj?cymi Acti 9, do zastosowa? zwi?zanych z o?wietleniem, ogrzewaniem i wentylacj?. Ten produkt jest zgodny z norm? IEC/EN 61095.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 28 |
| Gross weight: | 364 g |
| ETIM class: | Installation contactor for distribution board |
| Built-in depth: | 43.5 mm |
| Additional equipment possible: | yes |
| Rated operation current: | 40 A |
| Voltage type (excitation voltage): | AC |
| Voltage type (operating voltage): | AC |
| Degree of protection (IP): | IP20 |
| Rated operating voltage: | 400 - 400 V |
| Rated excitation voltage: | 24 - 24 V |
| Max. load fluorescent lamp: | 7200 VA |
| Max. load fluorescent lamp (Duo circuit): | 11400 VA |
| Width in number of modular spacings: | 3 |
| Max. load fluorescent lamp (parallel compensated): | 7200 VA |
| Max. incandescent lamp load: | 15750 W |
| Number of contacts as normally open contact: | 4 |
| Number of contacts as normally closed contact: | 0 |
| Slider for hand switch: | yes |
| With day/night function: | no |
| Hum-free: | no |
| Utility category: | 7 |
