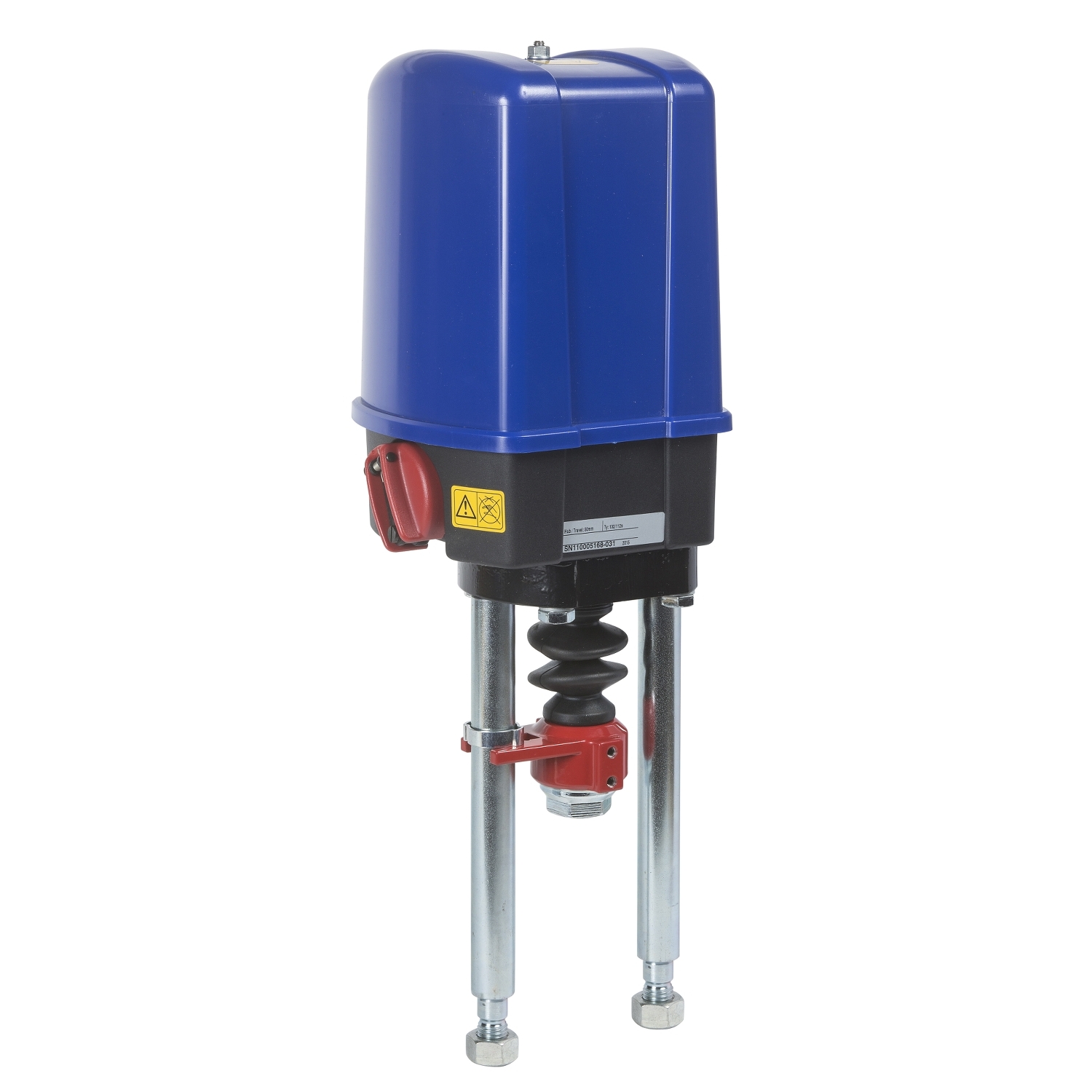

M22, siłownik zaworu, 2200 N, sterowanie 0-10V/4-20mA, zasilanie 24 VAC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 8900104000 |
| GTIN(EAN) | 3606480935541 |
| Price unit | piece |
| Catalog price | 10 332,00 zł (8 400,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Siłownik M22 to potężny siłownik odpowiedni do napędzania DN125 i DN150 rozmiarów zaworów typu V222, V292 i V321. Napięcie zasilania: 24 Vac +10% / -15%. Wejście sterowania analogowego: 0-10 V, 2-10 V. Wymuś: 2200 N, stopień ochrony IP 65. Pobór mocy 50 Hz: 12 VA. Wejście sterowania analogowego: ...1 V, 2...1 V. Wymuś: 22 N, stopień ochrony IP 65. Pobór mocy 5 Hz: 12 VA.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 9,04 kg |
| ETIM class: | Electric servomotor |
| Transmission: | Magnetic |
| Auxiliary contacts: | yes |
| Explosion-proof: | no |
| Housing material: | Other |
| With top flange direct mount according to ISO 5211: | no |
| Adjusting force: | 2200 N |
| Self-adjusting travel length: | no |
| Degree of protection (IP): | IP65 |
| End contacts: | None |
| Auxiliary contacts optional: | no |
| Adjustable operating range: | no |
| Allowable relative humidity: | 0 - 95 % |
| Suitable for air accessory: | no |
| Automatic stroke recognition: | no |
| With safety function: | no |
| Width: | 405 mm |
| Suitable for valve: | yes |
| With mechanical setting indicator: | no |
| Model: | Linear |
| Deactivated when closed: | no |
| Max. electric power input: | 12 VA |
| Connection to stop valve: | None |
| Return at zero supply voltage: | no |
| Adjustable position feedback signal: | no |
| Suitable for manual operation: | yes |
| Control signal: | Other |
| Potential free switch contact: | yes |
| Ambient temperature: | -20 - 70 °C |
| Regulation type splitrange: | no |
| Regulation type modulating: | yes |
| Regulation type on/off: | no |
| Height: | 210 mm |
| Stroke length: | 50 mm |
| Operating time: | 131 s |
| Position reporting system: | None |
| Supply voltage: | 24 V AC |
| Degree of protection (NEMA): | 4 |
