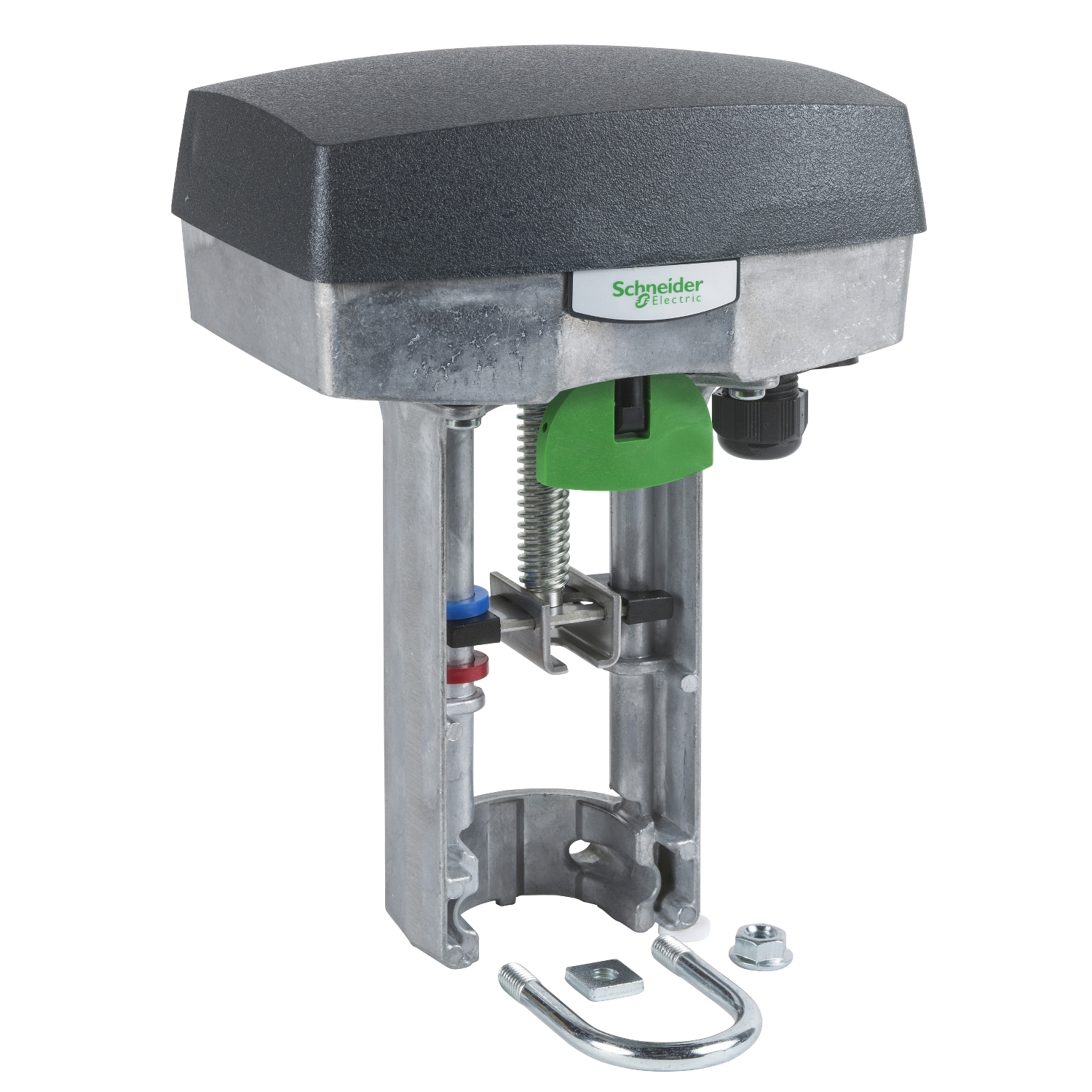

M800, siłownik zaworu, 800 N, sterowanie 3-punktowe/0-10V, zasilanie 24 VAC, łącznik L2SV
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 8800650000 |
| GTIN(EAN) | 7332552013270 |
| Price unit | piece |
| Catalog price | 3 874,50 zł (3 150,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Siłownik spacelogic M800 z zestawem połączeń L2SV do zaworów kulowych Satchwell, sterowanie wieloma sygnałami, powrót bez sprężyny.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 3 kg |
| ETIM class: | Electric servomotor |
| Explosion-proof: | no |
| Housing material: | Aluminium |
| With top flange direct mount according to ISO 5211: | no |
| Adjusting force: | 800 N |
| Self-adjusting travel length: | no |
| Degree of protection (IP): | IP54 |
| End contacts: | None |
| Auxiliary contacts optional: | no |
| Adjustable operating range: | no |
| Allowable relative humidity: | 0 - 90 % |
| Suitable for air accessory: | no |
| Automatic stroke recognition: | no |
| With safety function: | no |
| Depth: | 255 mm |
| Width: | 178 mm |
| Suitable for valve: | yes |
| Model: | Linear |
| Connection to stop valve: | Other |
| Return at zero supply voltage: | no |
| Control signal: | Other |
| Potential free switch contact: | no |
| Ambient temperature: | -10 - 50 °C |
| Regulation type splitrange: | no |
| Regulation type modulating: | yes |
| Regulation type on/off: | no |
| Height: | 132 mm |
| Operating time: | 102 s |
| Position reporting system: | None |
| Supply voltage: | 24 V AC |
| Degree of protection (NEMA): | 3 |
