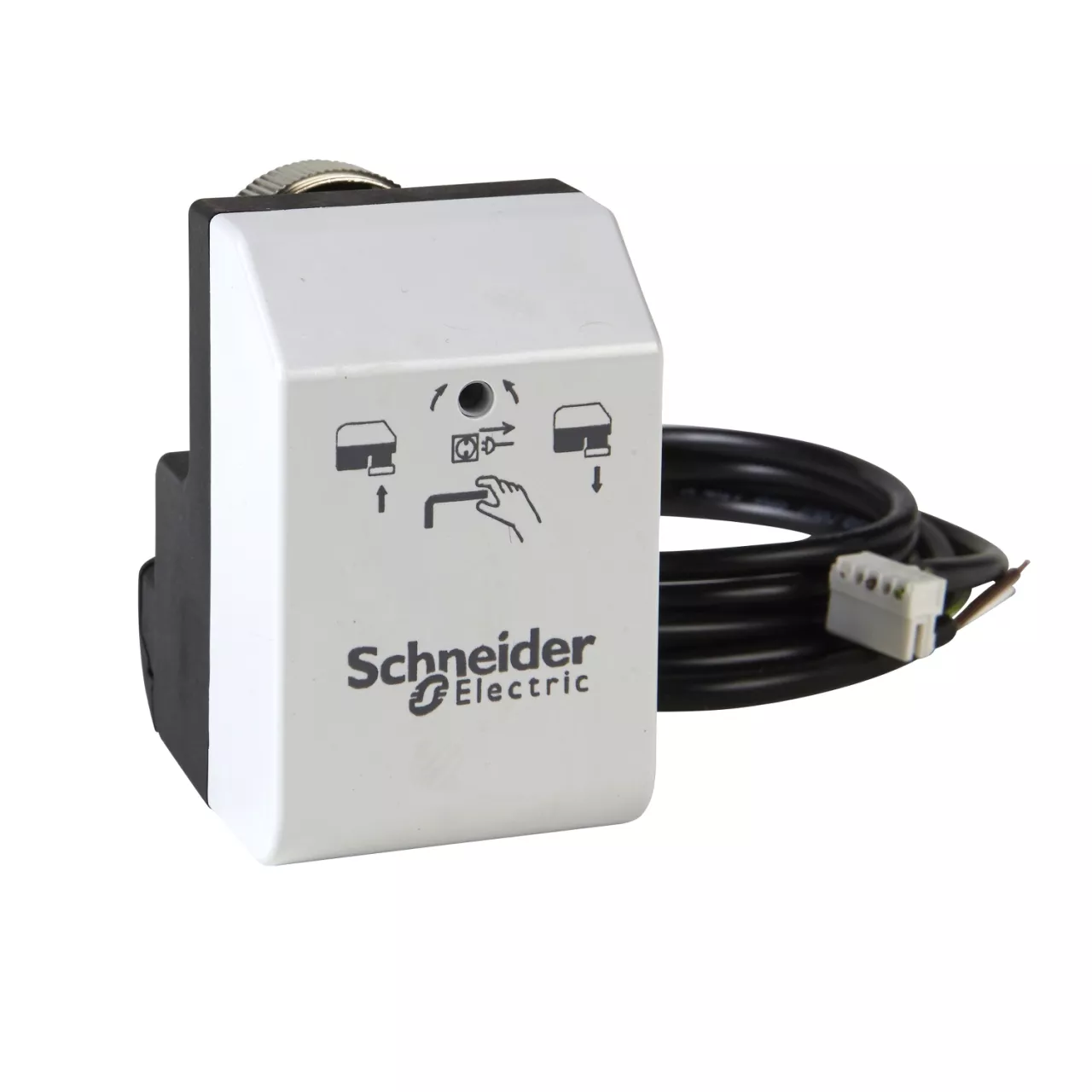

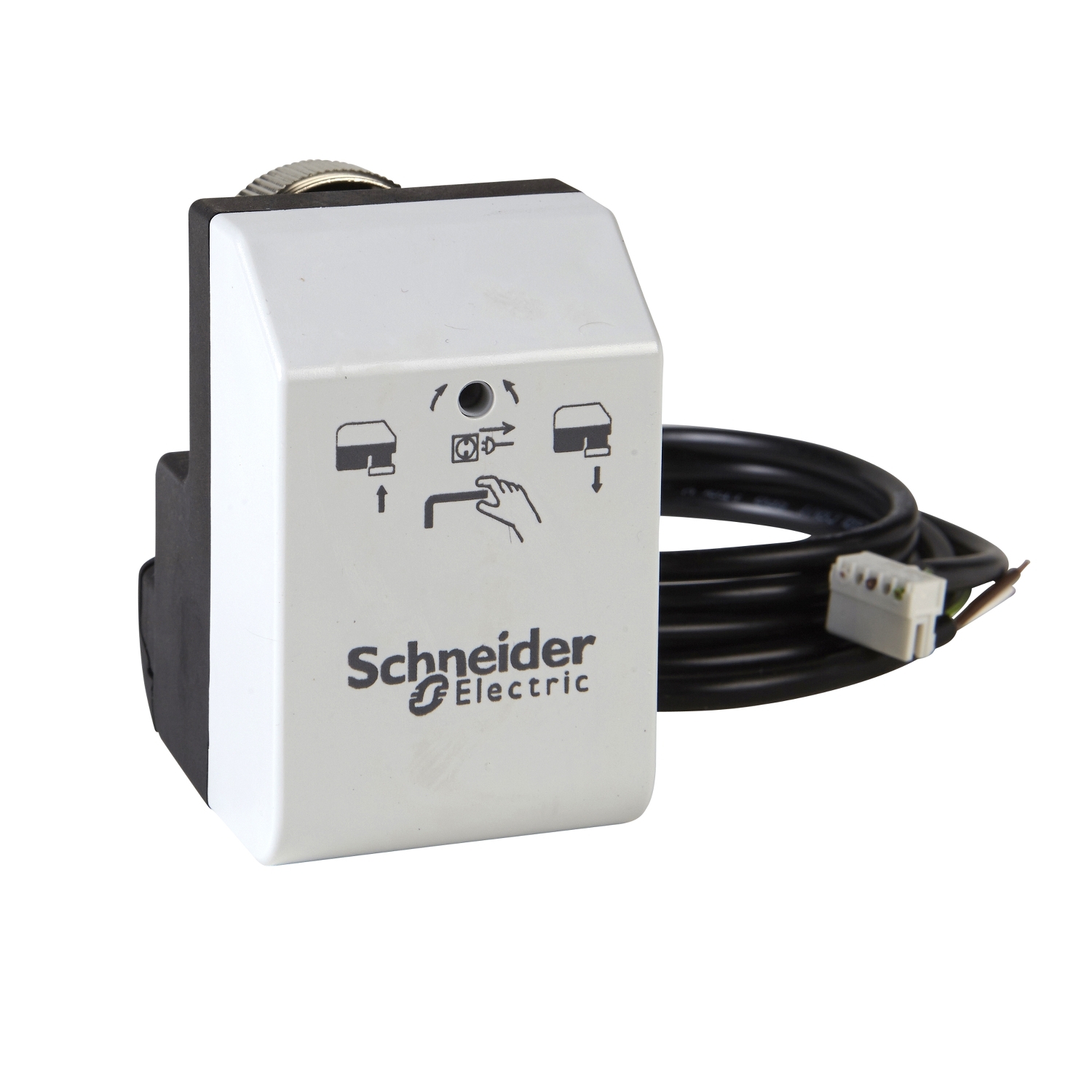

MZ20, siłownik zaworu, 200 N, sterowanie 0-10V, zasilanie 24 VAC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 8455052000 |
| GTIN(EAN) | 3606489659059 |
| Price unit | piece |
| Catalog price | 1 599,00 zł (1 300,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
MZ20 to kompaktowy, precyzyjny siłownik do zaworów VZ219, VZ319 i VZ419. Długi skok to siłownik strefy elektromechanicznej. Siłownik zapewnia precyzyjną pozycję zaworu i przepływ w celu zapewnienia dobrej kontroli hydronicznej. Optymalna konstrukcja zapewnia niezawodną, długofalową pracę bez potencjometru sprzężenia zwrotnego i łączników krańcowych. Napięcie zasilania, 24 Vac i Force, 200 N. Napięcie sterujące: ...1 V. IP 43 do montażu pionowego. Temperatura pracy: -5 do 55 °C. Kabel połączeniowy: 5,5 m. Zestaw przewodów 6 m 24 V, 1 szt., z możliwością podłączania za pomocą wtyczki.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 260 g |
| ETIM class: | Electric servomotor |
| Transmission: | Magnetic |
| Auxiliary contacts: | no |
| Explosion-proof: | no |
| Housing material: | Plastic |
| With top flange direct mount according to ISO 5211: | no |
| Adjusting force: | 200 N |
| Self-adjusting travel length: | yes |
| Degree of protection (IP): | IP43 |
| End contacts: | 1 |
| Auxiliary contacts optional: | no |
| Adjustable operating range: | yes |
| Energy consumption in operation: | 1 W |
| Allowable relative humidity: | 5 - 95 % |
| Principle of operation safety function: | Other |
| Suitable for air accessory: | yes |
| Type of safety function: | Other |
| Automatic stroke recognition: | yes |
| With safety function: | yes |
| Depth: | 76.5 mm |
| Connection cable length: | 1.5 m |
| Width: | 92 mm |
| Suitable for valve: | yes |
| With mechanical setting indicator: | no |
| Model: | Linear |
| Deactivated when closed: | no |
| Max. electric power input: | 1.2 VA |
| Connection to stop valve: | M30 x 1.5 |
| Return at zero supply voltage: | no |
| Adjustable position feedback signal: | yes |
| Suitable for manual operation: | yes |
| Control signal: | 0 - 10 V |
| Potential free switch contact: | no |
| Ambient temperature: | -5 - 55 °C |
| Regulation type splitrange: | no |
| Regulation type modulating: | yes |
| Regulation type on/off: | yes |
| Height: | 81 mm |
| Stroke length: | 6.5 mm |
| Operating time: | 100 s |
| Position reporting system: | None |
| Supply voltage: | 24 V AC |
| Degree of protection (NEMA): | 3 |
