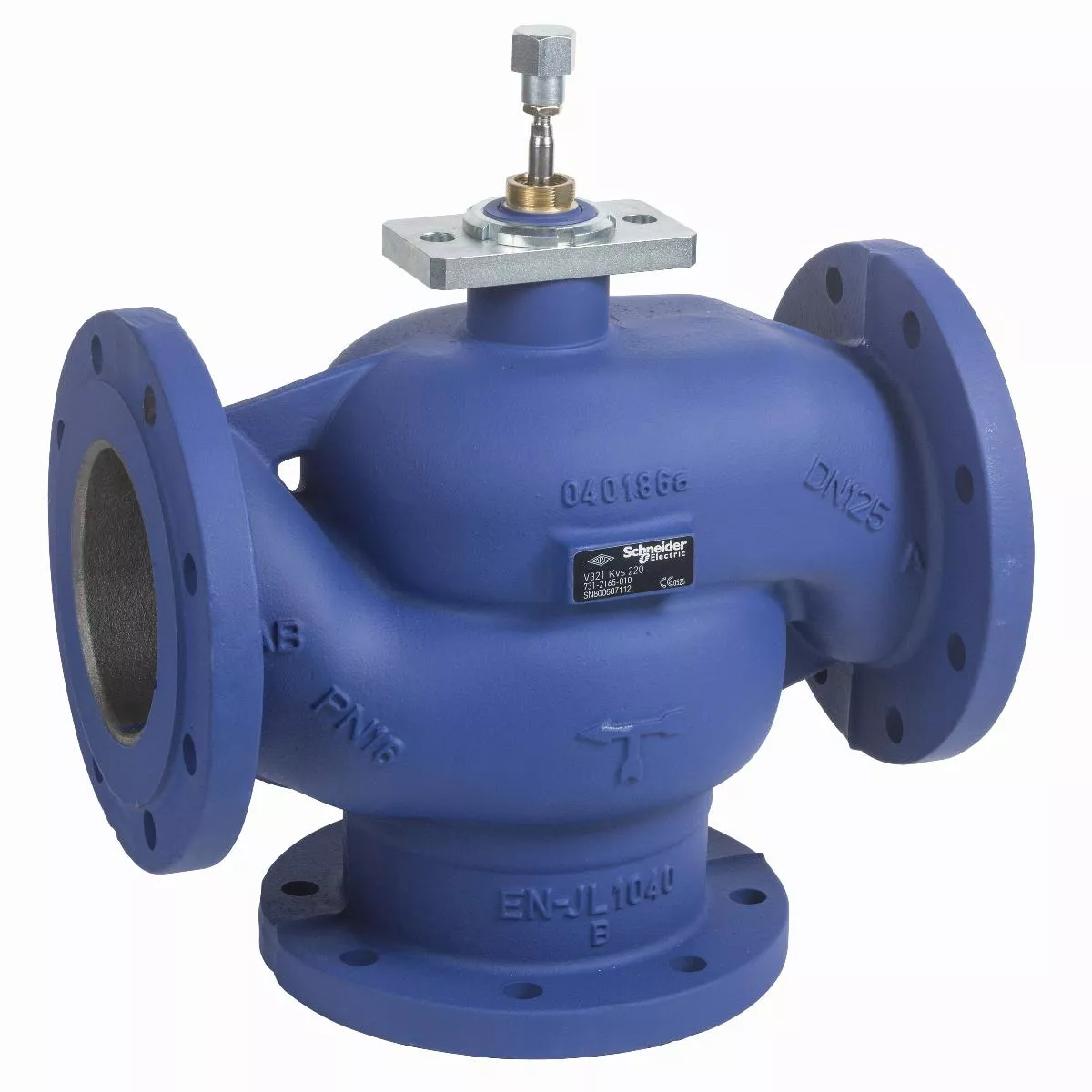

V321, zawór regulacyjny, 3-drogowy, DN125, kvs 220, przyłącze kołnierzowe, medium -10…130˚C, PN16
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 7312165010 |
| GTIN(EAN) | 3606489658793 |
| Price unit | piece |
| Catalog price | 14 268,00 zł (11 600,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zawór Globusowy V321, 3-Drogowy, PN16, Kołnierzowy DN125, Kvs 250, Korpus Żeliwny, Wykończenie Nierdzewne, Maks. Glikol 50%, Stem-Up Closed (A-AB)
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 55 kg |
| ETIM class: | Two way control valve |
| Flange compression class: | PN 16 |
| Surface protection: | Other |
| Housing material: | Cast iron |
| Suitable for heating: | yes |
| Characteristic curve: | Equal percentage |
| Suitable for cooling: | yes |
| Leakage loss of Kvs value: | 0.05 % |
| Contour code connection 1: | Other |
| Nominal diameter connection 1: | DN 125 |
| Kvs value: | 250 |
| Outer pipe diameter connection 1: | 100 mm |
| Kv value: | 130 - 130 |
| With flow measuring point: | no |
| Automatic flow control: | no |
| Article compression class: | PN 16 |
| Suitable for process water: | yes |
| Connection 1: | Flange |
| Material quality: | Cast iron GG 25 (GJL-250) |
| Suitable for tap water: | yes |
| Stroke length: | 30 mm |
| Tested according to TÜV GS: | no |
| DIN-CERTCO certificate: | no |
| With coupling connection 1: | no |
| DVGW quality mark: | no |
