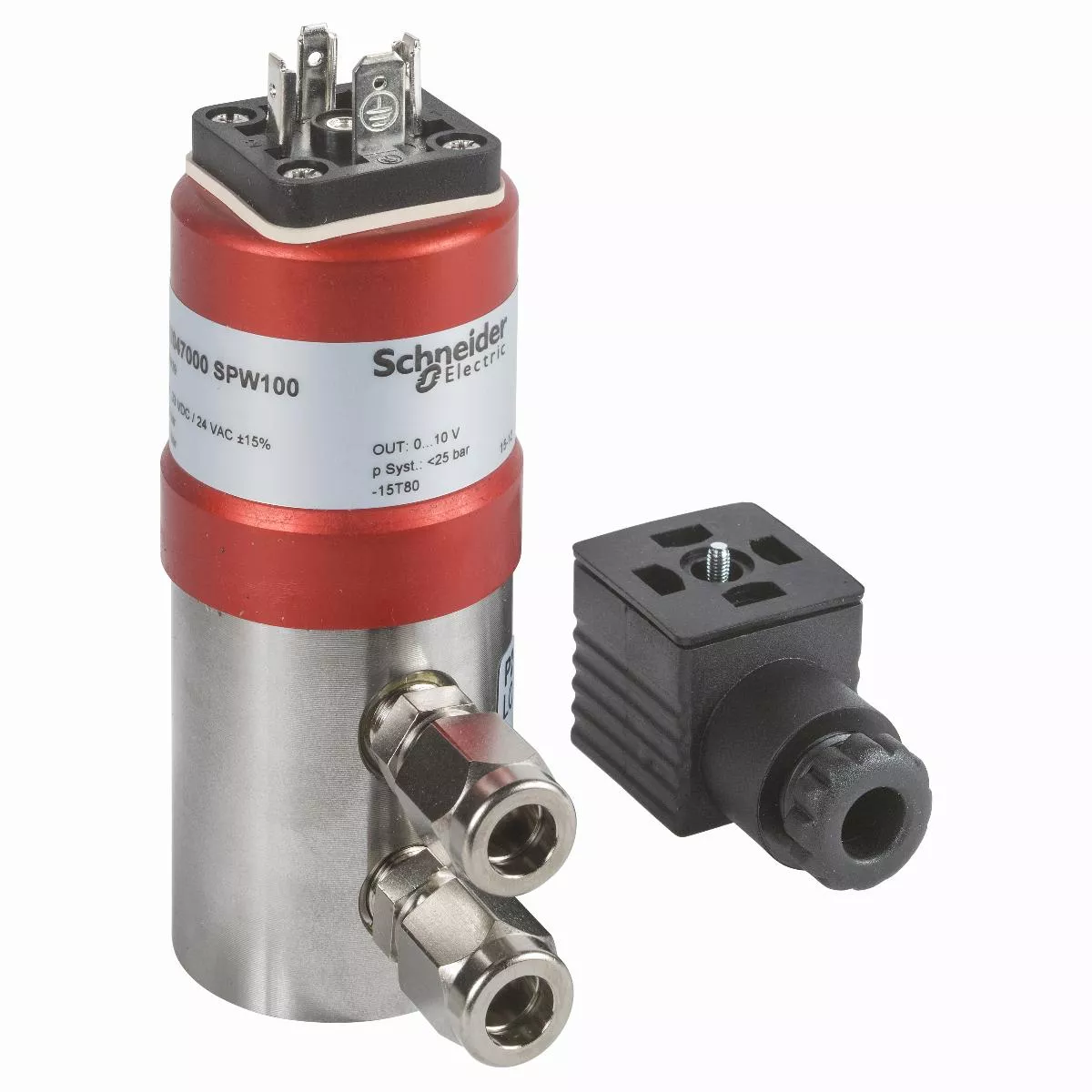

SPW1xx, przetwornik różnicy ciśnień cieczy, 0…1,0 bar (0-10V)
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 6552048000 |
| GTIN(EAN) | 7332552012754 |
| Price unit | piece |
| Catalog price | 4 735,50 zł (3 850,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Czujniki różnicy ciśnień na mokro SPW wykorzystują sprawdzoną technologię ceramiczną. Charakteryzują się niską czułością na zmiany temperatury i wysoką odpornością na ekstremalne temperatury.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 660 g |
| ETIM class: | Differential pressure transformer |
| Nominal pressure rating according to EN 1333 (PN ...): | 6 |
| Nominal pressure rating according to ASME B16.5 (Class ...): | 150 |
| Ambient temperature: | -15 - 85 °C |
| Nominal pressure rating according to EN 1333 at H-side (PN ...): | 6 |
| Weight: | 0.43 kg |
| Nominal pressure rating according to ASME B16.5 at H-side (Class ...): | 150 |
| Measuring range: | 0 - 1 bar |
| Nominal pressure rating according to EN 1333 at L-side (PN ...): | 6 |
| Analogue output 0 mA ... 20 mA: | no |
| Nominal pressure rating according to ASME B16.5 at L-side (Class ...): | 150 |
| Analogue output 0 V ... 10 V: | yes |
| Analogue output 0 V ... 2 V: | no |
| Analogue output 0 V ... 5 V: | no |
| Analogue output 2 V ... 10 V: | no |
| Analogue output 4 mA ... 20 mA: | no |
