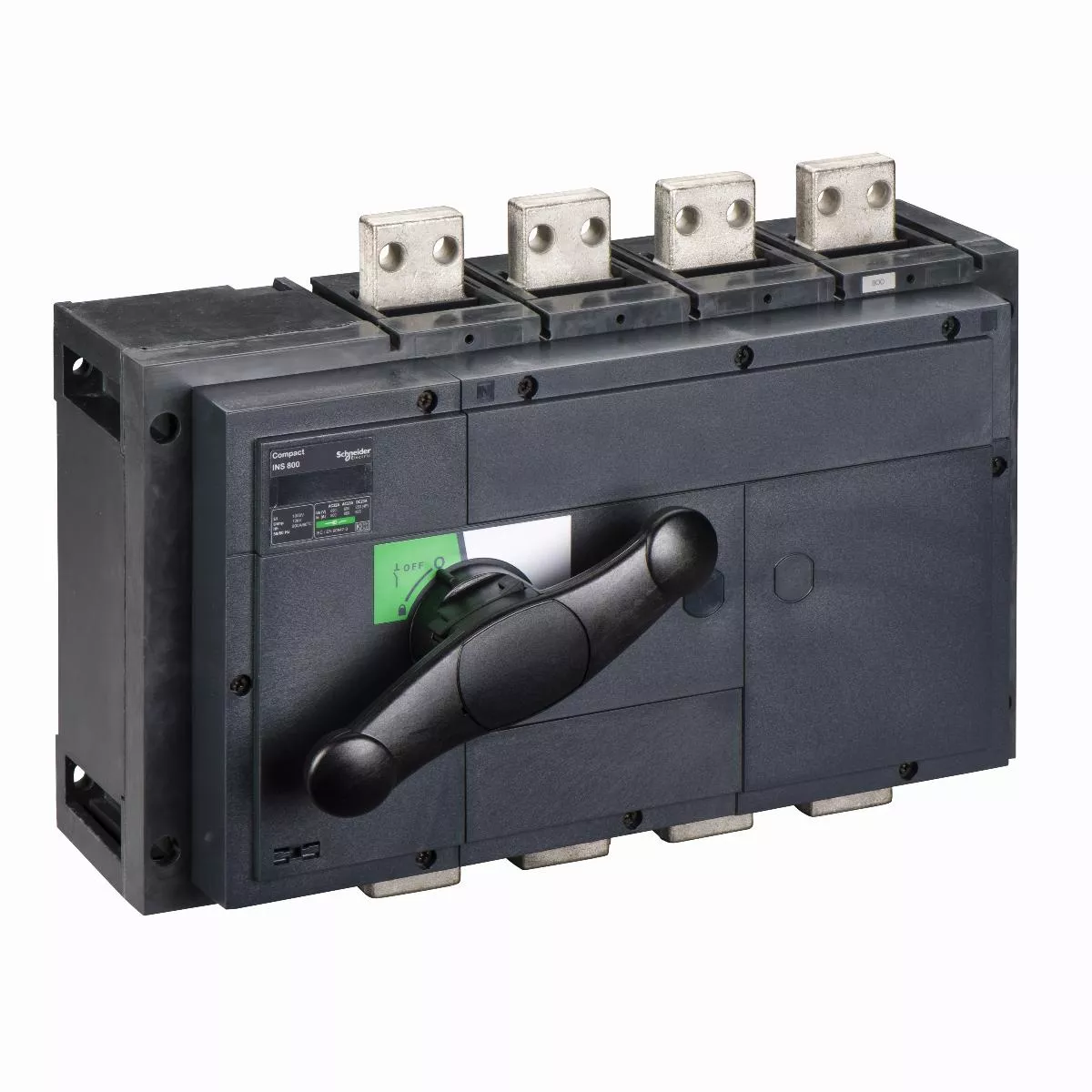

Compact INS INV, rozłącznik INS800 800A 4P
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 31331 |
| GTIN(EAN) | 3303430313311 |
| Price unit | piece |
| Catalog price | 10 269,52 zł (8 349,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 18,7 kg |
| ETIM class: | Switch disconnector (low voltage) |
| Rated short-time withstand current lcw: | 50 kA |
| Version as emergency stop installation: | no |
| Number of auxiliary contacts as change-over contact: | 4 |
| Interlockable: | yes |
| Voltage release optional: | no |
| Number of poles: | 4 |
| Degree of protection (IP), front side: | IP40 |
| Suitable for front mounting centre: | yes |
| Suitable for front mounting 4-hole: | yes |
| Number of switches: | 1 |
| Rated permanent current at AC-23, 400 V: | 800 A |
| Rated permanent current Iu: | 800 A |
| Colour control element: | Black |
| Suitable for floor mounting: | yes |
| Type of electrical connection of main circuit: | Screw connection |
| Version as safety switch: | no |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Version as maintenance-/service switch: | yes |
| Device construction: | Built-in device fixed built-in technique |
| Max. rated operation voltage Ue AC: | 690 V |
| Version as main switch: | yes |
| Rated operating voltage: | 690 - 690 V |
| Rated operation power at AC-23, 400 V: | 400 kW |
| Version as reversing switch: | no |
| Motor drive integrated: | no |
| Type of control element: | Long turning handle |
| Suitable for distribution board installation: | yes |
| Motor drive optional: | no |
| Rated permanent current at AC-21, 400 V: | 800 A |
| Suitable for intermediate mounting: | no |
