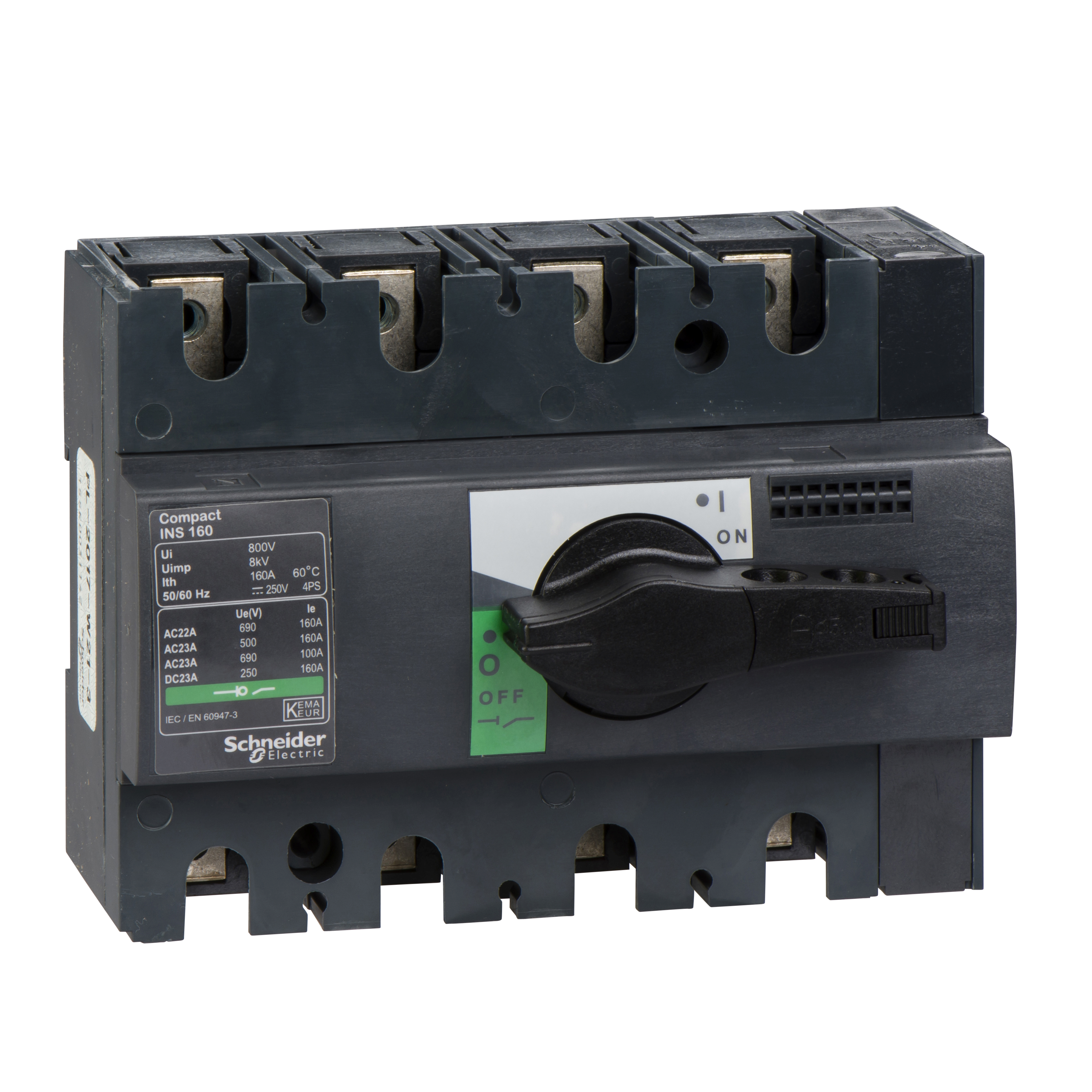

Compact INS INV, rozłącznik INS160 160A 4P
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | 28913 |
GTIN(EAN) | 3303430289135 |
Price unit | piece |
Catalog price | 899,54 zł (731,33 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 1,123 kg |
ETIM class: | Switch disconnector (low voltage) |
Rated short-time withstand current lcw: | 5.5 kA |
Version as emergency stop installation: | no |
Number of auxiliary contacts as change-over contact: | 2 |
Interlockable: | yes |
Voltage release optional: | no |
Number of poles: | 4 |
Degree of protection (IP), front side: | IP40 |
Suitable for front mounting centre: | yes |
Suitable for front mounting 4-hole: | yes |
Number of switches: | 1 |
Rated permanent current at AC-23, 400 V: | 160 A |
Rated permanent current Iu: | 160 A |
Colour control element: | Black |
Suitable for floor mounting: | yes |
Type of electrical connection of main circuit: | Screw connection |
Version as safety switch: | no |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Version as maintenance-/service switch: | yes |
Device construction: | Built-in device fixed built-in technique |
Max. rated operation voltage Ue AC: | 690 V |
Version as main switch: | yes |
Rated operating voltage: | 690 - 690 V |
Rated operation power at AC-23, 400 V: | 75 kW |
Version as reversing switch: | no |
Motor drive integrated: | no |
Type of control element: | Long turning handle |
Conditioned rated short-circuit current Iq: | 65 kA |
Suitable for distribution board installation: | yes |
Motor drive optional: | no |
Suitable for intermediate mounting: | no |
