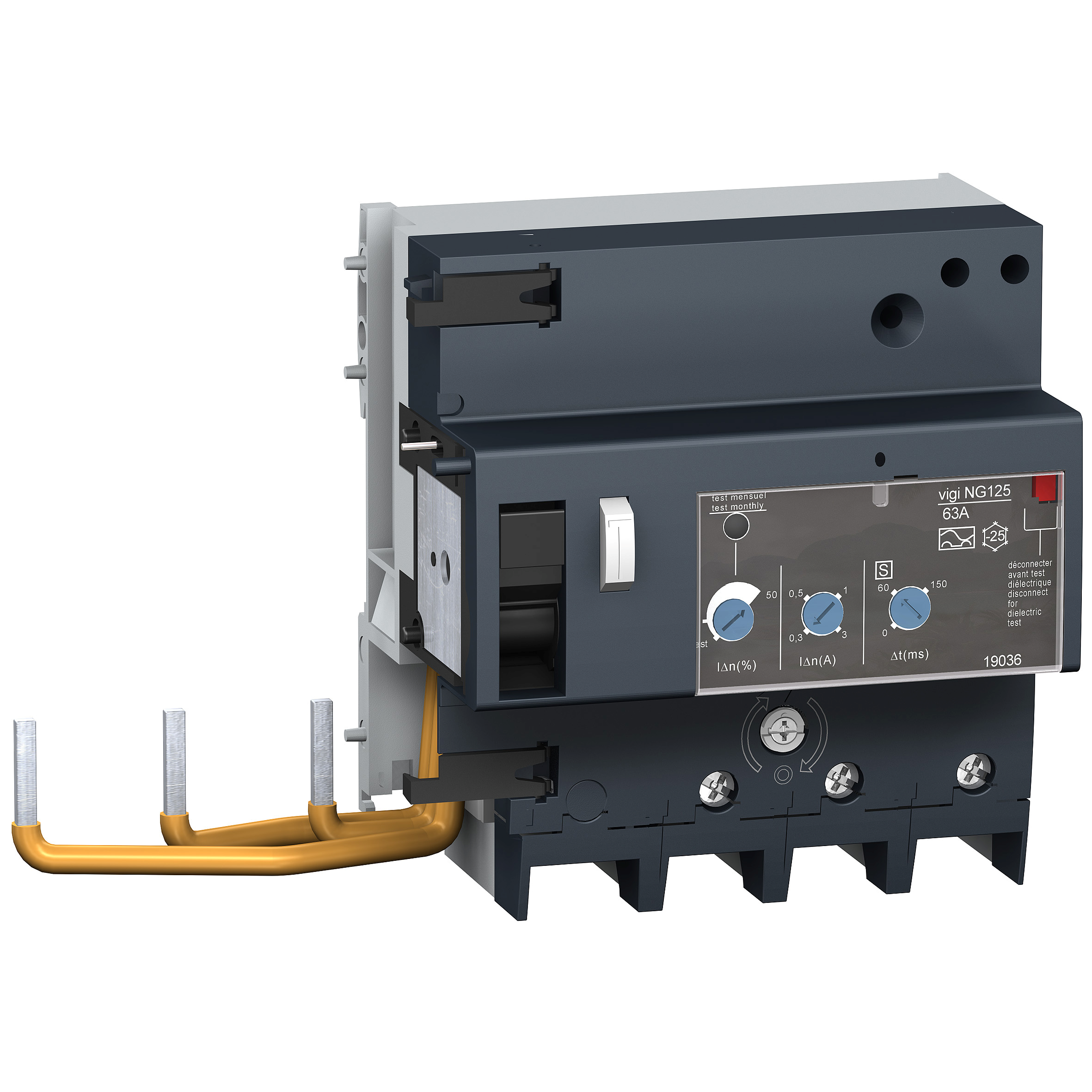

Blok różnicowoprądowy VigiNG125-63-3-300…3000-A-I/S/R 63A 3-biegunowy A-I/S/R
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | 19036 |
GTIN(EAN) | 3303430190363 |
Price unit | piece |
Catalog price | 3 878,19 zł (3 153,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 85 |
Gross weight: | 784 g |
ETIM class: | Residual current circuit breaker (RCCB) module |
Connectable conductor cross section solid-core: | 1.5 - 50 mm² |
Frequency: | 50/60 Hz |
Leakage current type: | A |
Nominal current: | 63 A |
Surge current capacity: | 5 kA |
Rated fault current: | 0.3 - 3 A |
Ambient temperature during operating: | 25 - 60 °C |
Anti-nuisance tripping version: | no |
Degree of protection (IP): | IP20 |
Number of poles: | 3 |
Rated impulse withstand voltage Uimp: | 8 kV |
Rated fault current adjustable: | yes |
Delay adjustable: | yes |
Max. delay time: | 0 ms |
Rated insulation voltage Ui: | 690 V |
Nominal voltage: | 230 - 415 V |
Connectable conductor cross section multi-wired: | 1 - 35 mm² |
Pollution degree: | 3 |
With interlocking device: | yes |
