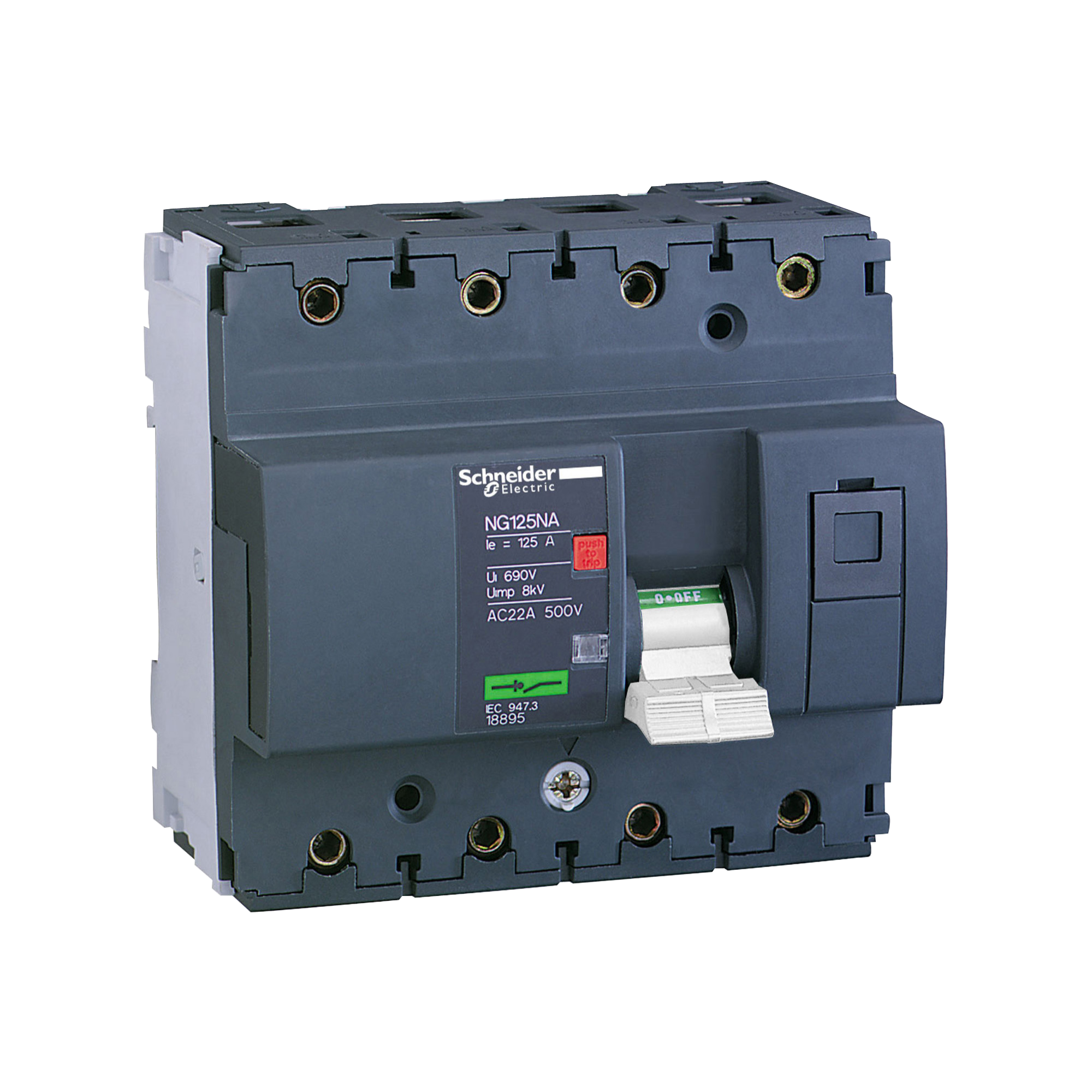

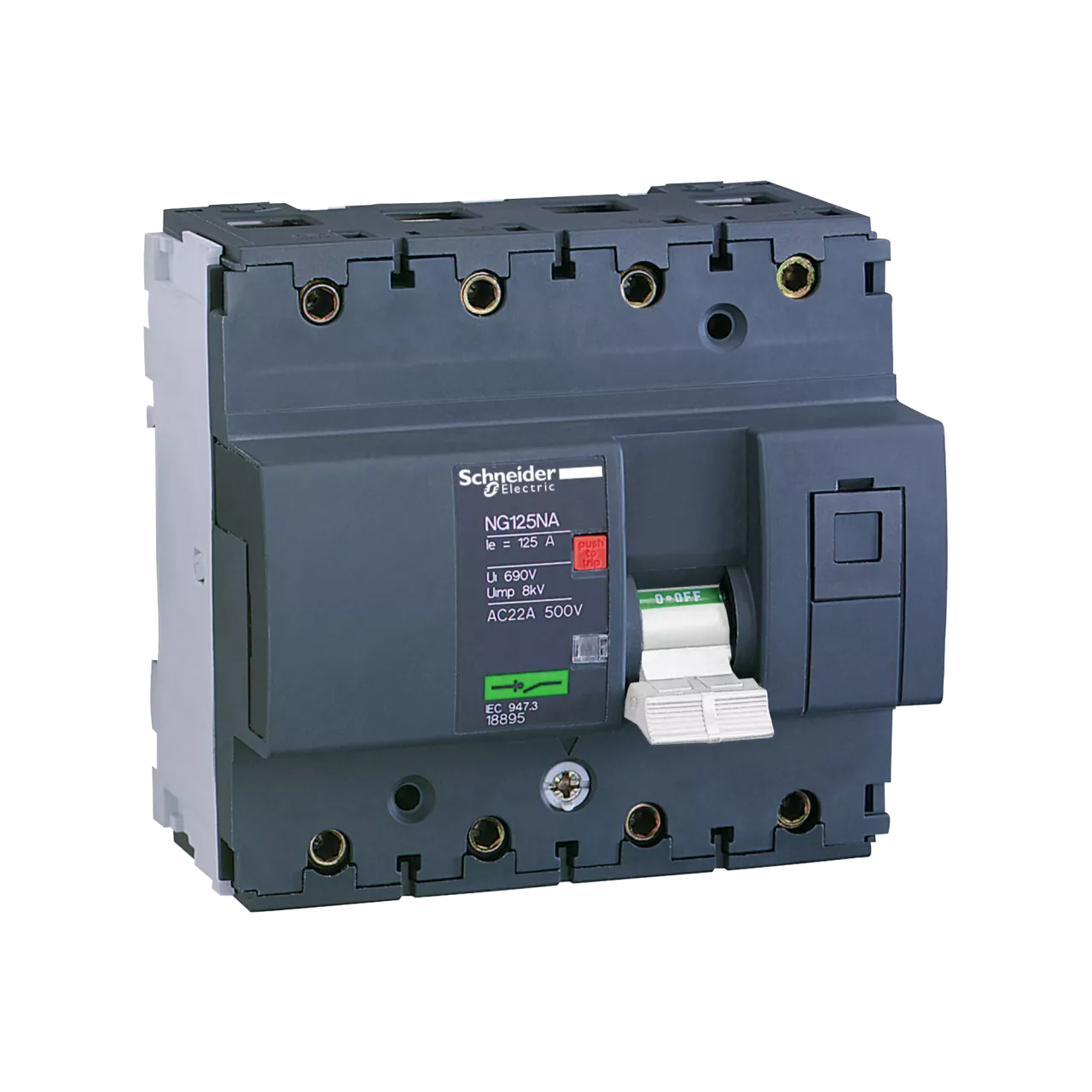

Rozłącznik izolacyjny Acti9 NG125NA , 3+N-biegunowy 125 A
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 18896 |
| GTIN(EAN) | 3303430188964 |
| Price unit | piece |
| Catalog price | 1 821,63 zł (1 481,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 75 |
| Gross weight: | 1,042 kg |
| ETIM class: | Switch disconnector (low voltage) |
| Rated short-time withstand current lcw: | 1.5 kA |
| Version as emergency stop installation: | no |
| Number of auxiliary contacts as change-over contact: | 0 |
| Interlockable: | no |
| Voltage release optional: | yes |
| Number of poles: | 4 |
| Degree of protection (IP), front side: | IP20 |
| Suitable for front mounting centre: | yes |
| Suitable for front mounting 4-hole: | yes |
| Number of switches: | 4 |
| Rated permanent current Iu: | 125 A |
| Colour control element: | Black |
| Suitable for floor mounting: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Version as safety switch: | yes |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Version as maintenance-/service switch: | no |
| Device construction: | Built-in device fixed built-in technique |
| Max. rated operation voltage Ue AC: | 500 V |
| Version as main switch: | yes |
| Rated operating voltage: | 500 - 500 V |
| Version as reversing switch: | no |
| Motor drive integrated: | no |
| Type of control element: | Toggle |
| Suitable for distribution board installation: | yes |
| Motor drive optional: | no |
| Suitable for intermediate mounting: | no |
