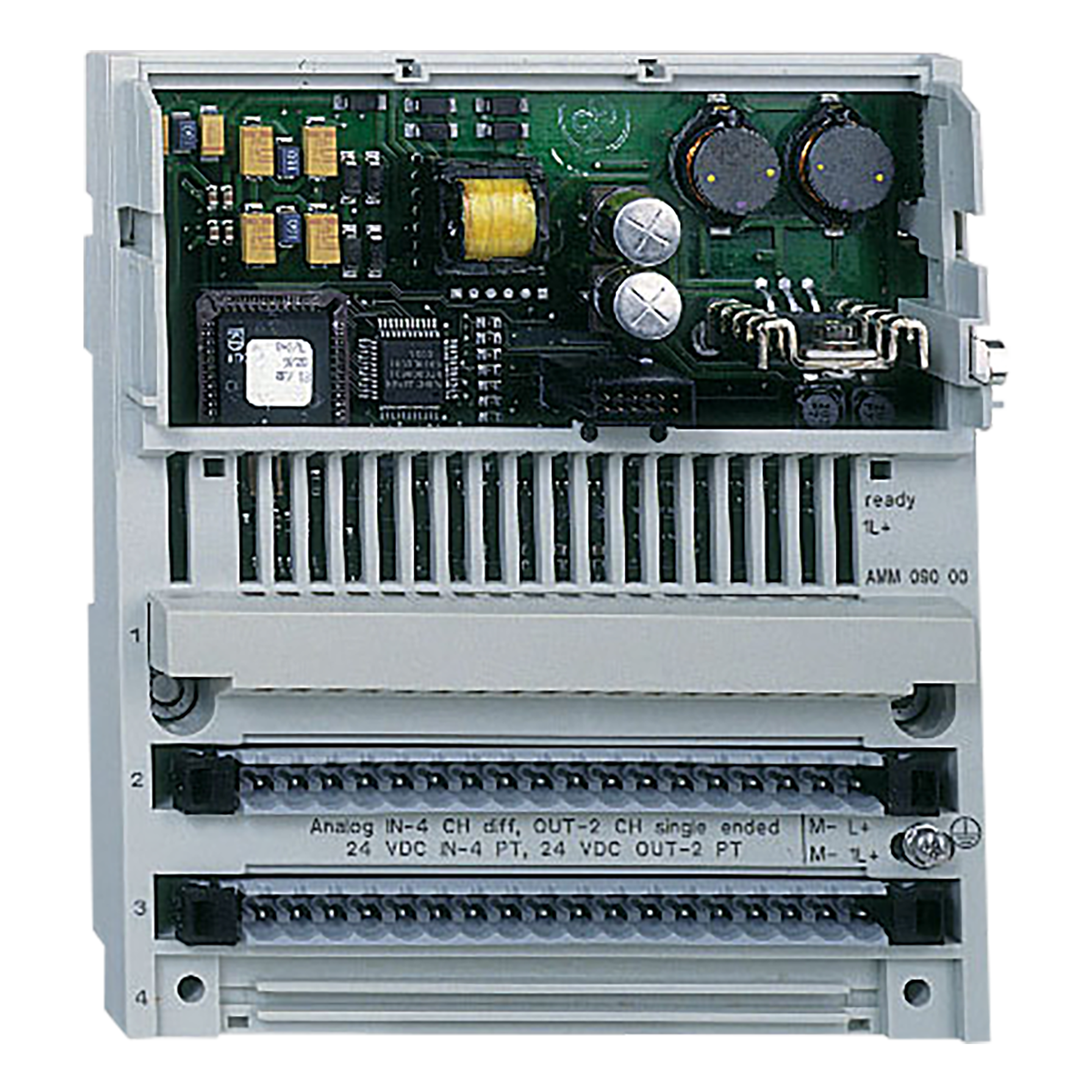

Modicon Momentum, podstawa moduły wejść/wyjść, 6 wejścia/4 wyjścia analogowe, 8 wejść/8 wyjść cyfrowych
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | 170ANR12090 |
GTIN(EAN) | 3595860019523 |
Price unit | piece |
Catalog price | 13 653,00 zł (11 100,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 384 g |
ETIM class: | Fieldbus, decentr. periphery - analogue/digital I/O module |
Suitable for safety functions: | no |
Explosion safety category for dust: | None |
Width: | 141.5 mm |
Analogue outputs configurable: | yes |
Permitted voltage at input: | 3 - 32 V |
Radio standard GPRS: | no |
Explosion safety category for gas: | None |
Radio standard GSM: | no |
Radio standard UMTS: | no |
Digital outputs configurable: | yes |
Digital inputs configurable: | yes |
Analogue inputs configurable: | yes |
Supporting protocol for SUCONET: | no |
Supporting protocol for other bus systems: | no |
Rack-assembly possible: | no |
Resolution of the analogue inputs: | 14 b |
Front built-in possible: | yes |
Resolution of the analogue outputs: | 14 b |
Output voltage at digital output: | 10 - 30 V |
Type of output voltage: | AC/DC |
Depth: | 47.5 mm |
Short-circuit protection, digital outputs available: | yes |
Height: | 125 mm |
Number of HW-interfaces wireless: | 0 |
Number of interfaces PROFINET: | 0 |
SIL according to IEC 61508: | None |
Number of digital inputs: | 8 |
Number of digital outputs: | 8 |
Number of analogue inputs: | 6 |
Number of analogue outputs: | 4 |
Supporting protocol for LON: | no |
Radio standard WLAN 802.11: | no |
Radio standard Bluetooth: | no |
IO link master: | no |
Analogue output, current: | no |
Analogue output signal configurable: | yes |
Analogue output, voltage: | yes |
Performance level according to EN ISO 13849-1: | None |
Time delay at signal change: | 1.2 - 1.2 ms |
Output current at digital output: | 0.25 A |
Analogue input, current: | no |
Analogue input, voltage: | yes |
Analogue input, resistor: | no |
Analogue input, thermocouple: | no |
Analogue input, resistor temperature: | no |
Analogue input signal configurable: | yes |
Wall mounting/direct mounting: | yes |
Input current at signal 1: | 6 mA |
Supporting protocol for KNX: | no |
Supply voltage DC: | 24 - 24 V |
Supporting protocol for Data-Highway: | no |
Supporting protocol for Modbus: | no |
Supporting protocol for DeviceNet: | no |
Rail mounting possible: | yes |
Supporting protocol for TCP/IP: | no |
Supporting protocol for PROFIBUS: | no |
Appendant operation agent (Ex ib): | no |
Degree of protection (IP): | Other |
Supporting protocol for ASI: | no |
Supporting protocol for INTERBUS: | no |
Supporting protocol for CAN: | no |
Appendant operation agent (Ex ia): | no |
Supporting protocol for AS-Interface Safety at Work: | no |
Supporting protocol for PROFINET CBA: | no |
Supporting protocol for Foundation Fieldbus: | no |
Voltage type (supply voltage): | AC/DC |
Supporting protocol for EtherNet/IP: | no |
Type of electric connection: | Flat plug-in connection |
Supporting protocol for SafetyBUS p: | no |
Type of digital output: | Transistor |
Supporting protocol for PROFIsafe: | no |
Supporting protocol for PROFINET IO: | no |
Supporting protocol for DeviceNet Safety: | no |
Type of voltage (input voltage): | AC/DC |
Fieldbus connection over separate bus coupler possible: | no |
Supporting protocol for INTERBUS-Safety: | no |
Number of HW-interfaces RS-485: | 0 |
Number of HW-interfaces RS-422: | 0 |
Number of HW-interfaces USB: | 0 |
Number of HW-interfaces serial TTY: | 0 |
Number of HW-interfaces other: | 0 |
Number of HW-interfaces parallel: | 0 |
System accessory: | yes |
Supporting protocol for SERCOS: | no |
With optical interface: | no |
Number of HW-interfaces RS-232: | 0 |
Number of HW-interfaces industrial Ethernet: | 0 |
