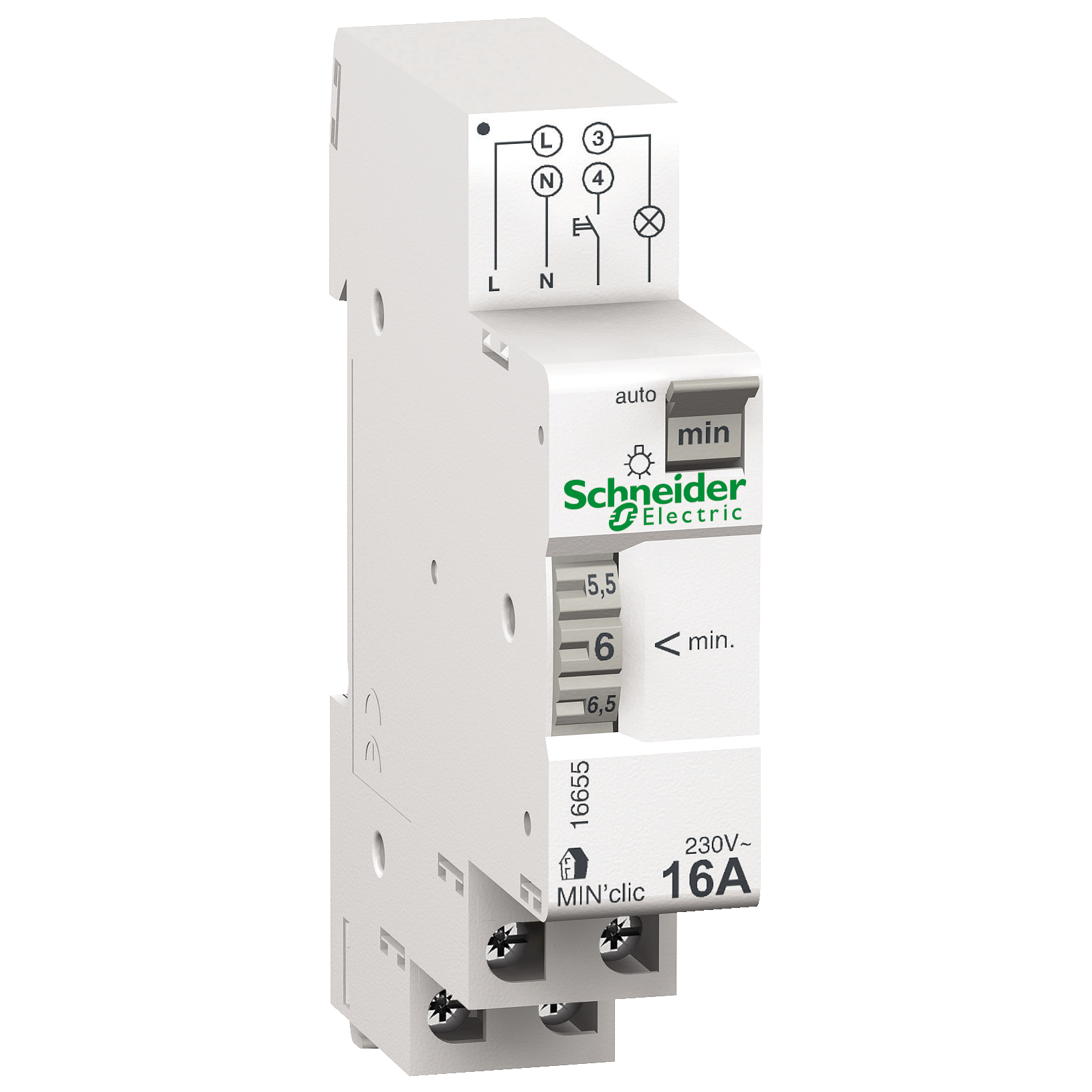

Łącznik minutowy, Acti9, MIN CLIC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 16655 |
| GTIN(EAN) | 3303430166559 |
| Price unit | piece |
| Catalog price | 371,46 zł (302,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 13 |
| Gross weight: | 82 g |
| ETIM class: | Timer relay |
| Function delay-on energization: | no |
| Suitable for DIN rail (top hat rail) mounting: | yes |
| Depth: | 66 mm |
| Width: | 18 mm |
| Pluggable on auxiliary contact block: | no |
| Clock function, starting with pulse, variable: | no |
| Clock function, starting with pause, variable: | yes |
| Function delay on de-energization: | yes |
| Type of electric connection: | Screw connection |
| Suitable as remote control: | no |
| Remote operation possible: | no |
| Nominal current: | 16 A |
| Voltage type for actuating: | AC |
| Height: | 89 mm |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Time range: | 60 - 420 s |
| Number of outputs, delayed, normally open contact: | 4 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, undelayed, change-over contact: | 0 |
| Number of outputs, undelayed, normally open contact: | 0 |
| Function floating contact on de-energization: | no |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Function pulse shaping: | no |
| Suitable for front mounting: | yes |
| Number of outputs, delayed, change-over contact: | 0 |
| With semiconductor output: | no |
| Function floating contact on energization: | no |
| Outputs, reversible delayed/undelayed: | no |
| With plug-in socket: | no |
| Function star-delta: | no |
| Function flashing, starting with pause, fixed time: | no |
| Function flashing, starting with pulse, fixed time: | no |
