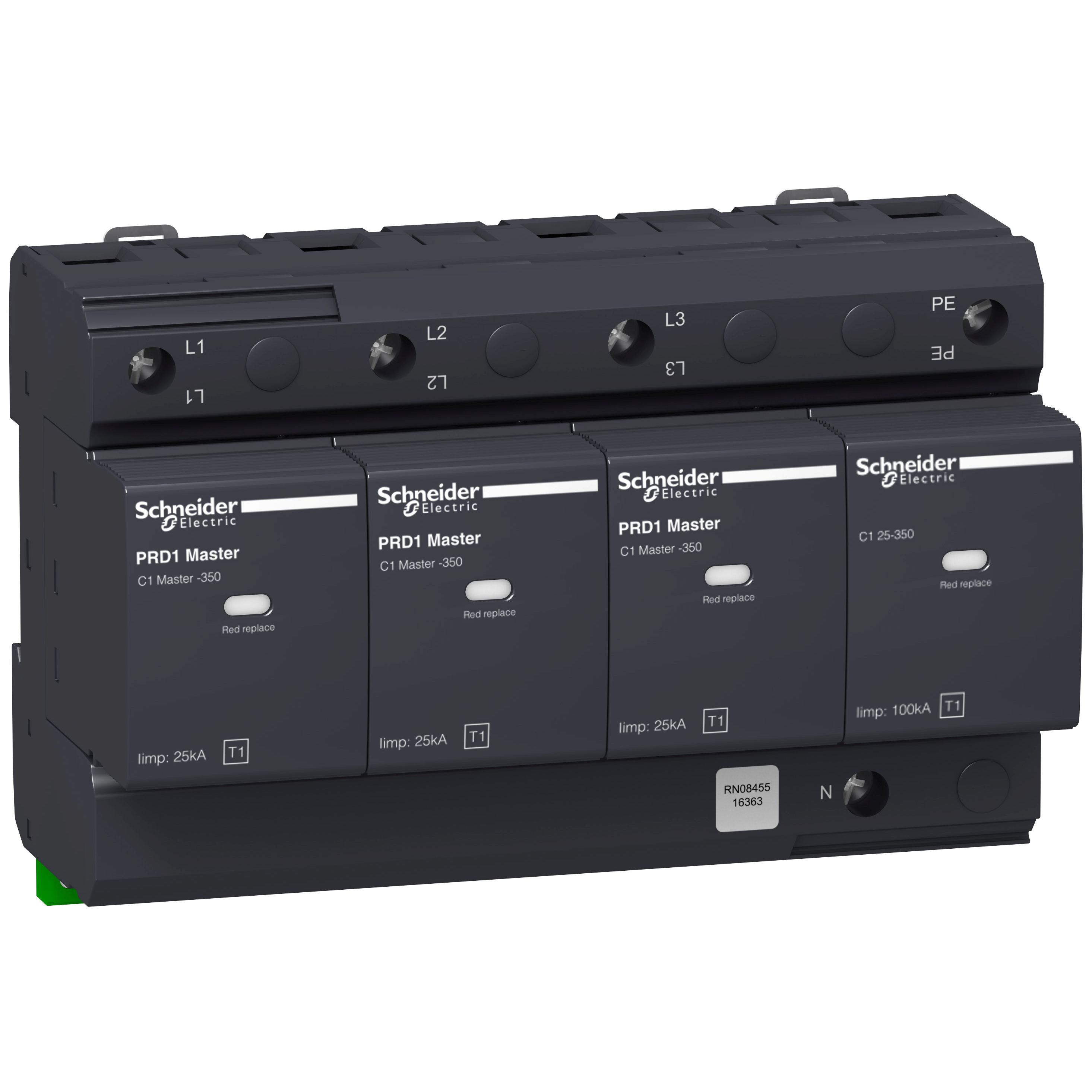

Ogranicznik przepięć Acti9 PRD1Master-T1-3N 3+1-biegunowy Typ1 25 kA ze stykiem
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | 16363 |
GTIN(EAN) | 3606480060465 |
Price unit | piece |
Catalog price | 6 555,90 zł (5 330,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 230 |
Gross weight: | 1,563 kg |
ETIM class: | Surge protection device for power supply systems |
Leakage-current free: | no |
Voltage protection level: | 2.5 kV |
Integrated short-circuit protection: | no |
With remote signalling contact: | yes |
Construction size: | 8 modular spacing |
Nominal voltage AC: | 400 V |
Degree of protection (IP): | IP20 |
Max. discharge surge current (8/20): | 50 kA |
Short-circuit breaking capacity (Isccr): | 25 kA |
Nominal discharge surge current (8/20): | 100 kA |
Number of conductors (without earthing): | 3 |
System configuration IT: | no |
System configuration TN: | no |
System configuration TN-C: | no |
System configuration TN-S: | yes |
System configuration TT: | yes |
Mounting method: | DIN rail (top hat rail) 35 mm |
System configuration other: | no |
System configuration TN-C-S: | no |
Signalling at the device: | Optical |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Max. conductor cross section flexible (fine-strand): | 25 mm² |
System configuration DC: | no |
Integrated backup fuse: | no |
Voltage protection level L-N: | 1.5 kV |
Voltage protection level N-PE: | 1.5 kV |
Category type 2: | yes |
Max. continuous voltage AC: | 350 V |
