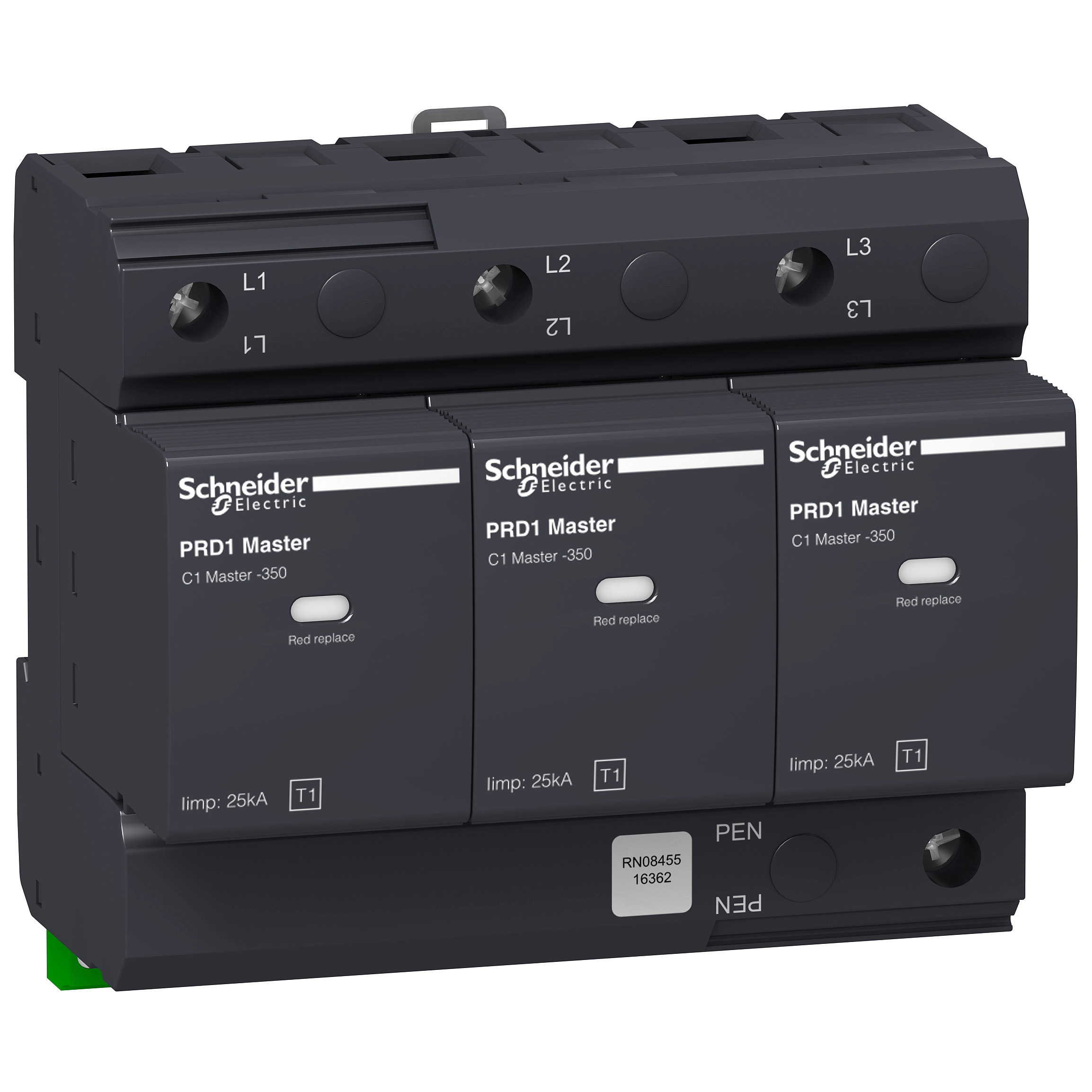

Ogranicznik przepięć Acti9 PRD1Master-T1-3 3-biegunowy Typ1 25 kA ze stykiem
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 16362 |
| GTIN(EAN) | 3606480060458 |
| Price unit | piece |
| Catalog price | 5 762,55 zł (4 685,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 190 |
| Gross weight: | 1,252 kg |
| ETIM class: | Surge protection device for power supply systems |
| Leakage-current free: | no |
| Voltage protection level: | 1.5 kV |
| Integrated short-circuit protection: | no |
| With remote signalling contact: | yes |
| Construction size: | 6 modular spacing |
| Nominal voltage AC: | 400 V |
| Degree of protection (IP): | IP20 |
| Max. discharge surge current (8/20): | 50 kA |
| Short-circuit breaking capacity (Isccr): | 25 kA |
| Nominal discharge surge current (8/20): | 25 kA |
| Number of conductors (without earthing): | 3 |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | yes |
| System configuration TN-S: | no |
| System configuration TT: | no |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| System configuration other: | no |
| System configuration TN-C-S: | no |
| Signalling at the device: | Optical |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 35 mm² |
| System configuration DC: | no |
| Integrated backup fuse: | no |
| Category type 2: | yes |
| Max. continuous voltage AC: | 350 V |
