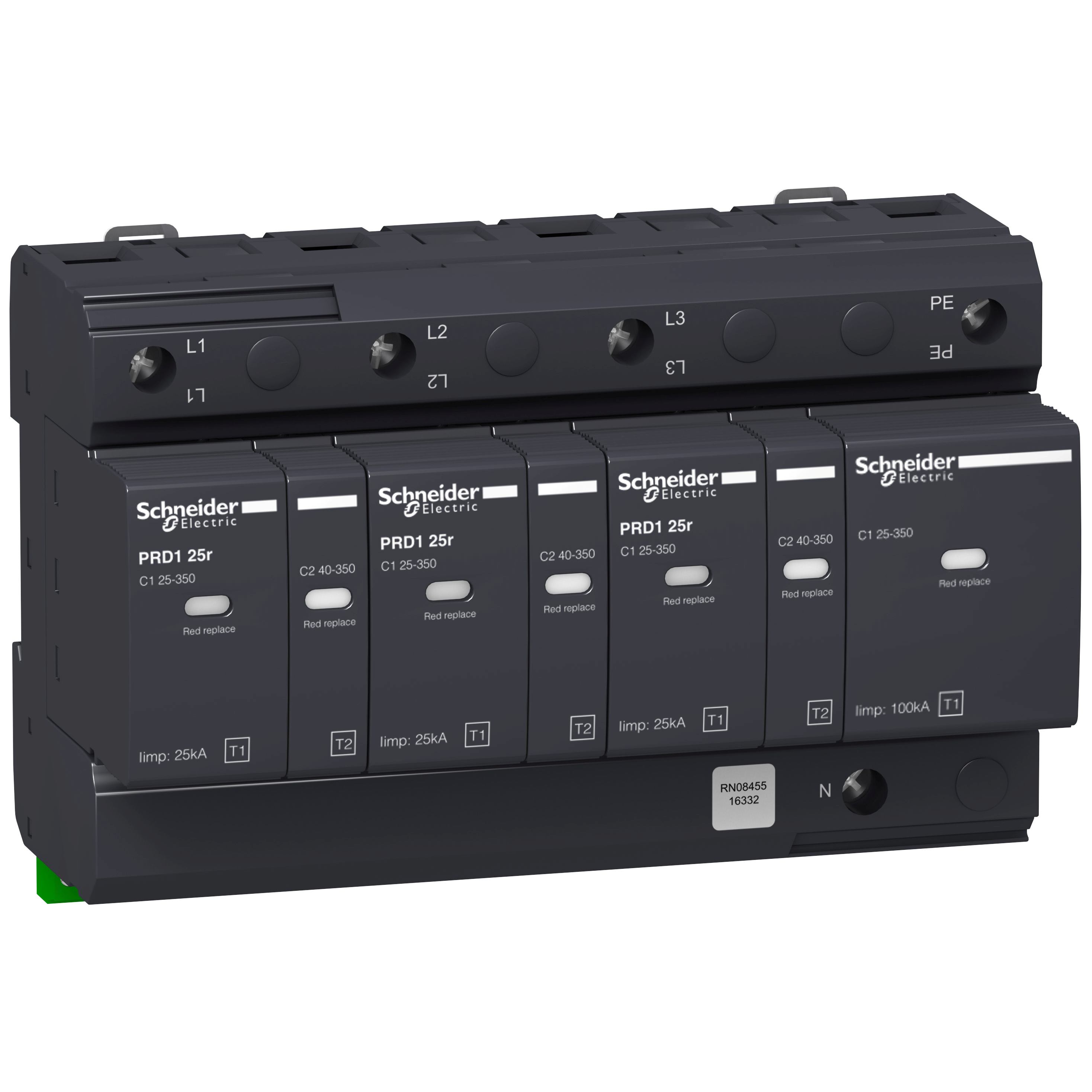

Ogranicznik przepięć Acti9 PRD125r-T12-3N 3+1-biegunowy Typ1+Typ2 25 kA ze stykiem
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 16332 |
| GTIN(EAN) | 3606480060427 |
| Price unit | piece |
| Catalog price | 6 901,53 zł (5 611,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 320 |
| Gross weight: | 1,345 kg |
| ETIM class: | Combined arrester for power supply systems |
| Voltage switching spark gap technology: | yes |
| Voltage protection level: | 1.5 kV |
| Test class: | Type 1 + 2 |
| Construction size: | 8 modular spacing |
| Degree of protection (IP): | IP20 |
| Nominal voltage AC: | 400 V |
| Number of poles: | 4 |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-S: | yes |
| System configuration TT: | yes |
| System configuration other: | no |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| System configuration TN-C-S: | no |
| Signalling at the device: | Optical |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 35 mm² |
| System configuration DC: | no |
| Integrated backup fuse: | no |
| Voltage protection level L-N: | 1.5 kV |
| Voltage protection level N-PE: | 1.5 kV |
| Remote signalling: | yes |
| Max. continuous voltage AC: | 350 V |
